Flushing Oil Cooler With Lines

Special tools required:
^ 17 2 018
^ 17 2 019

Note: Carry out the work steps listed when: Fitting a new or replacement transmission

Flushing can only be carried out with the automatic transmission removed.

Procedure:
Automatic transmission removed.

Connect appropriate adapters (see description below) to oil lines exiting from automatic transmission.

Connect the connecting line 17 2 019 from the oil collection unit with the quick-release coupling.

Connect drain line 17 2 018 using quick-release coupling.

Feed open end of drain line into a suitable collection container.

Using oil collection unit, flush approx. 1 liter of transmission fluid through oil lines and oil cooler.


Reposition quick-release couplings.

Flush oil lines/oil cooler in opposite direction with approx. 1 liter of transmission fluid.


Disconnect quick-release couplings, remove adapters.

Note: Dispose of flushing oil properly; do not under any circumstances reuse it.





Arrangement of flushing device for transmission A5S 325Z, GA6HP26Z

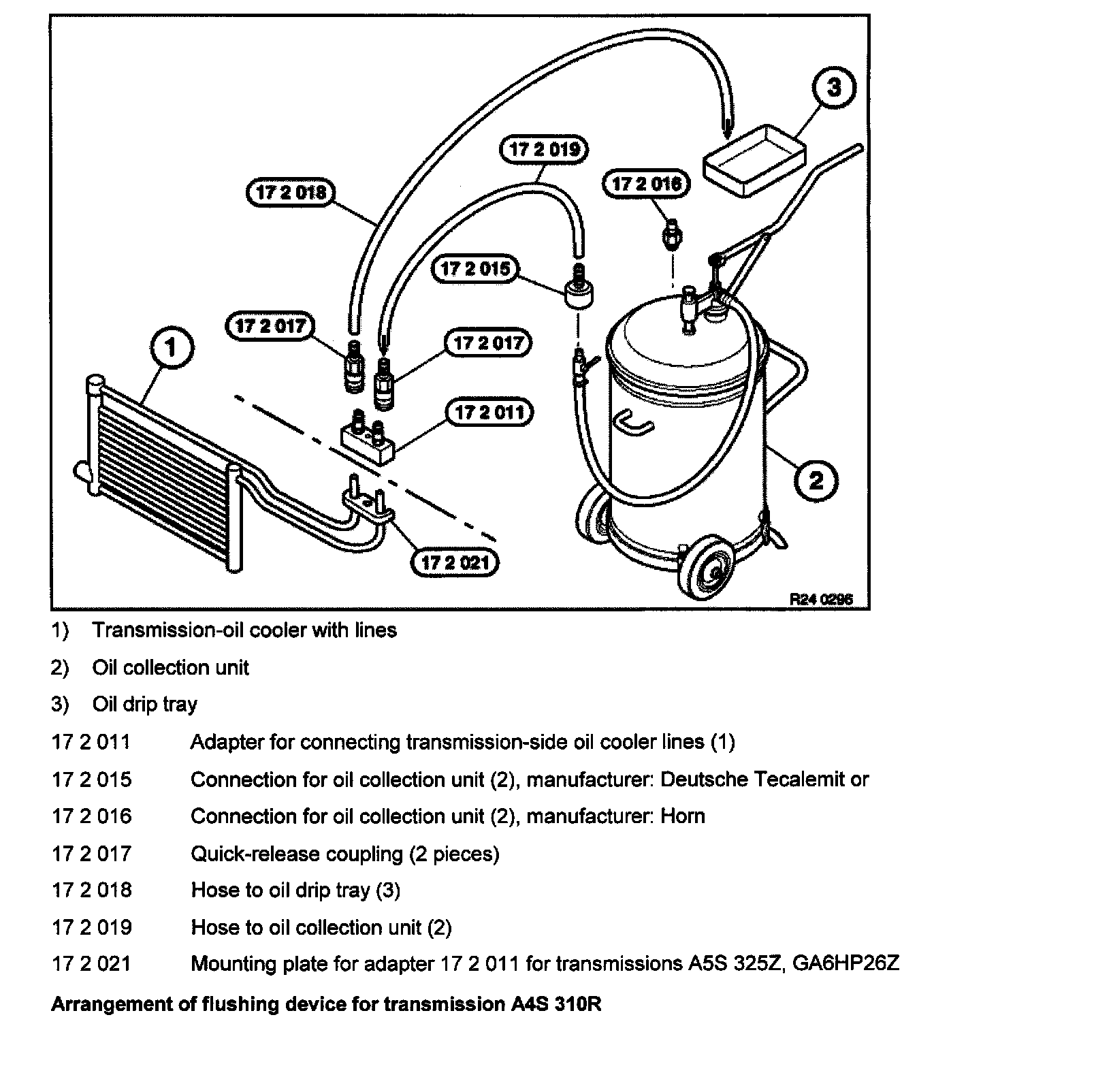

Arrangement of flushing device for transmission A4S 310R

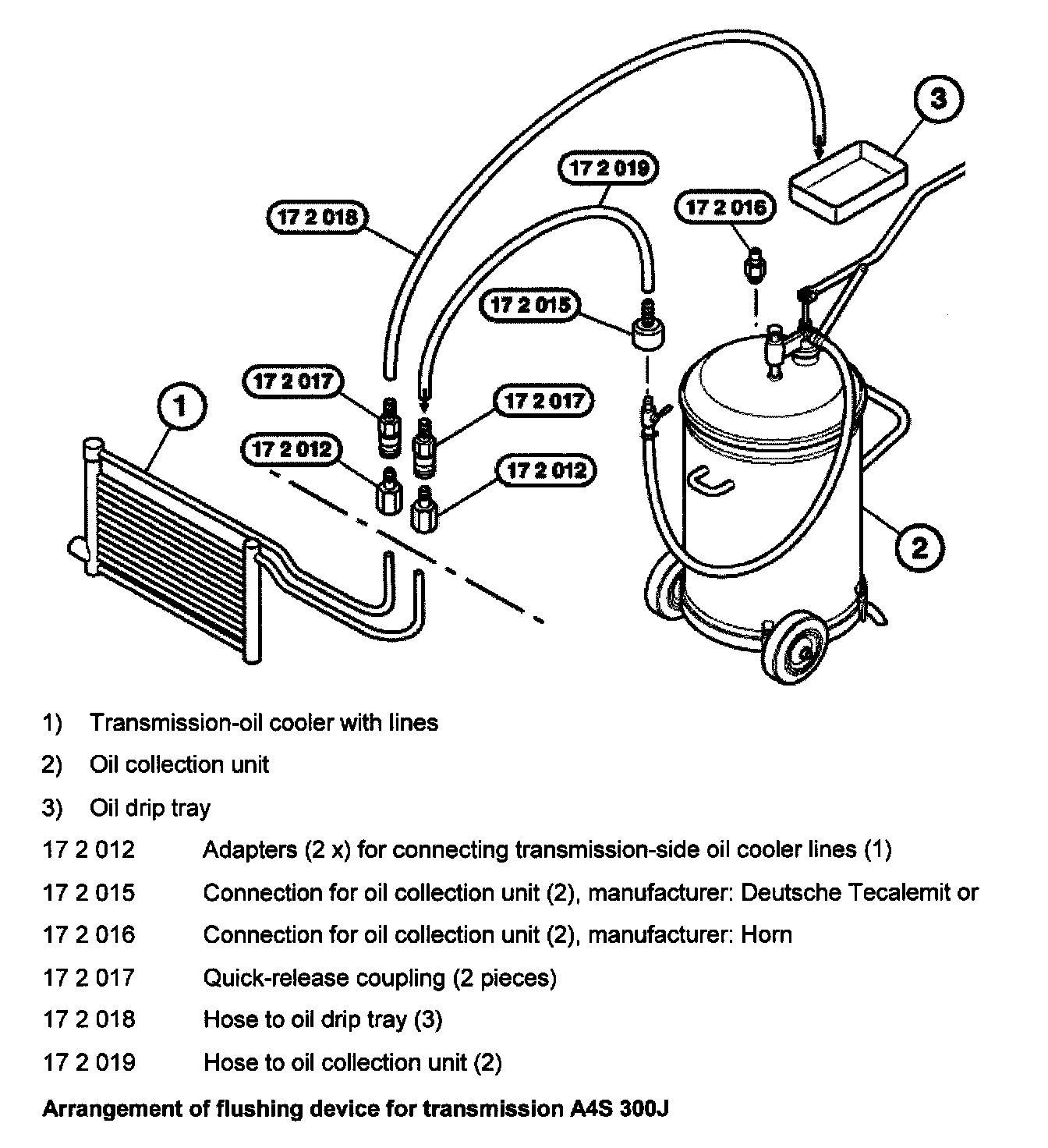

Arrangement of flushing device for transmission A4S 300J

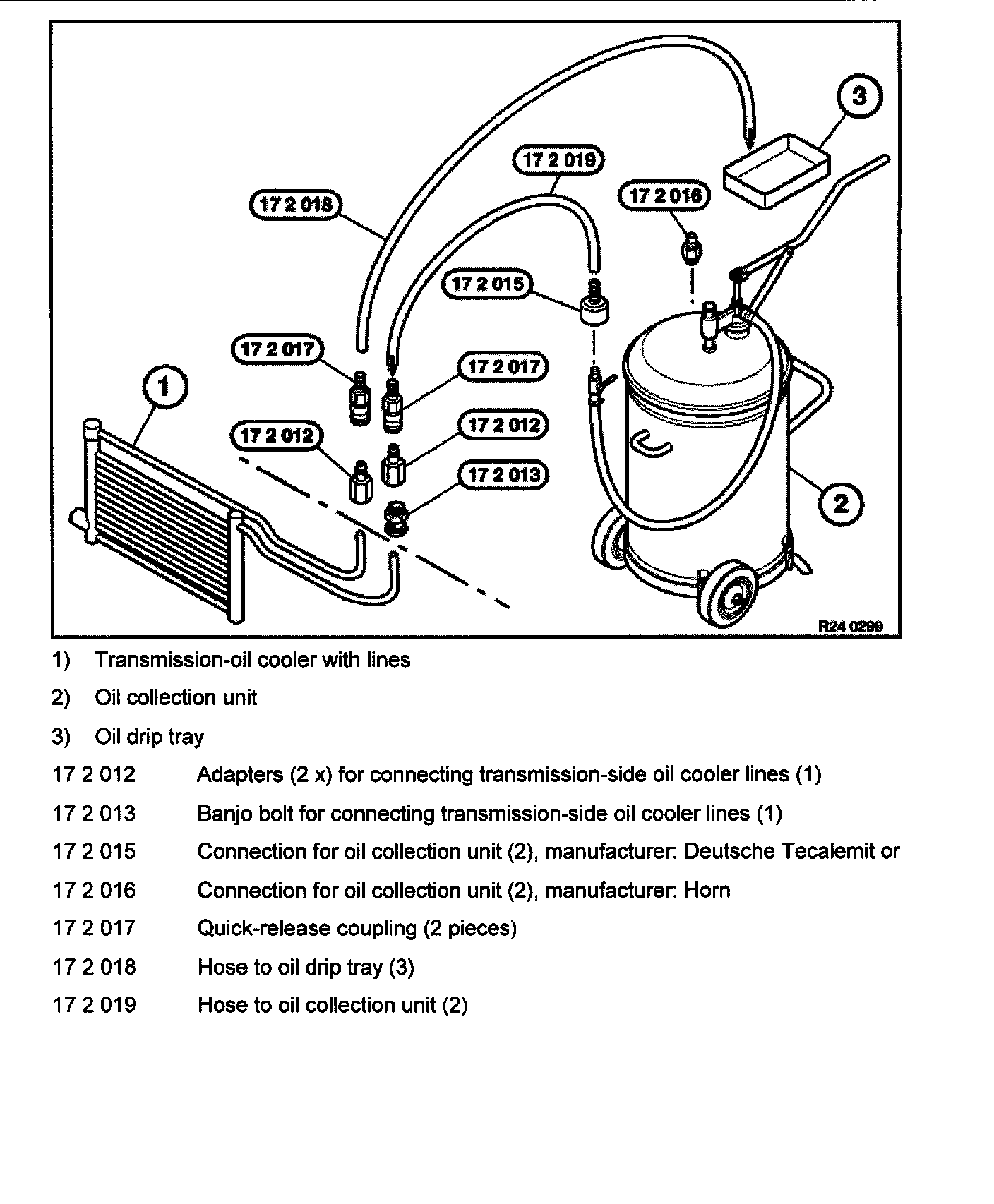

Arrangement of flushing device for transmission A5S 440Z
