Control Arm Bushing: Service and Repair

Replacing Rubber Mounts For Control Arm
Special Tools Required:
^ 31 5 150

Remove left and right control arm.

Always replace rubber mounts in pairs.

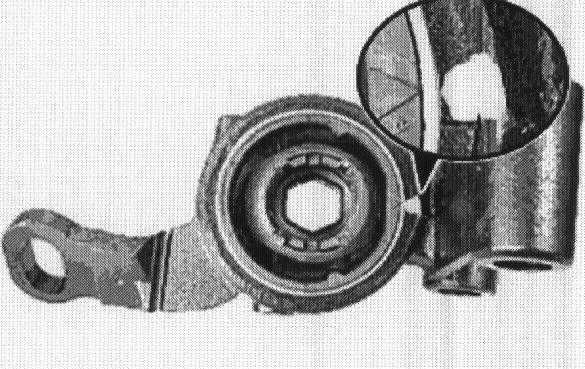

Mark position of mount to housing before removing.

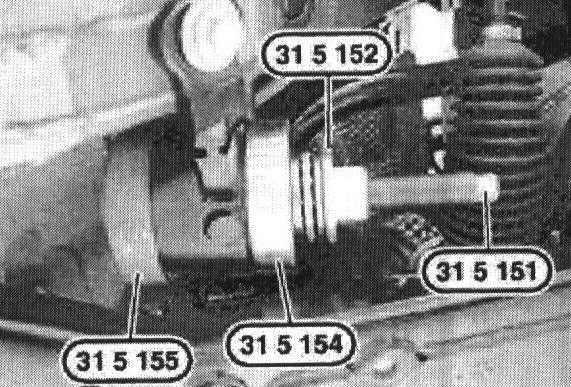

Press rubber mount out of bracket using special tool 31 5 150 as shown.

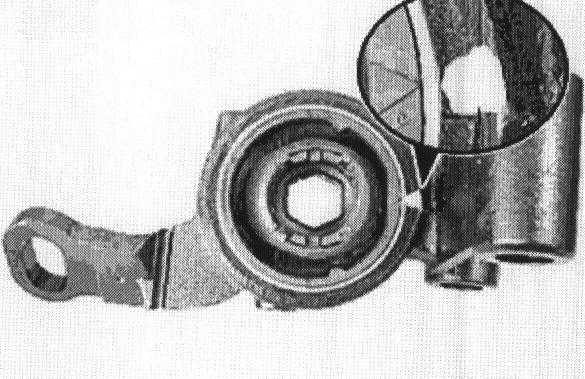

Arrow on rubber mount points towards mark on bracket.





Fit rubber mount to bracket using special tool 31 5 150 as shown in diagram.
