Wheel Bearing: Service and Repair

Replacing Bearings (Wheel Hub) For Front wheel
Remove road wheel.

Remove brake disk.

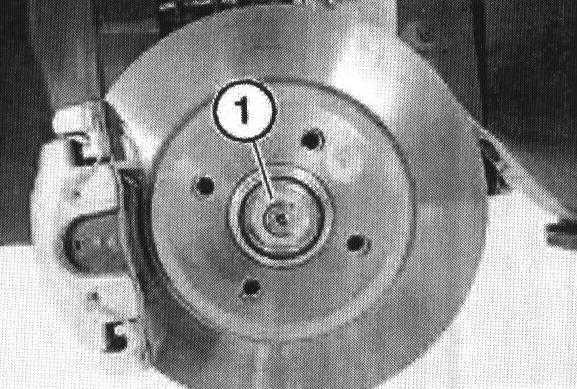

Release hub collar nut with cross cut chisel and remove nut (1).
Fit new collar nut.
Output shaft to angular contact ball bearing
M22 x 1.5 stake nut 182 Nm
Note: Use only once.

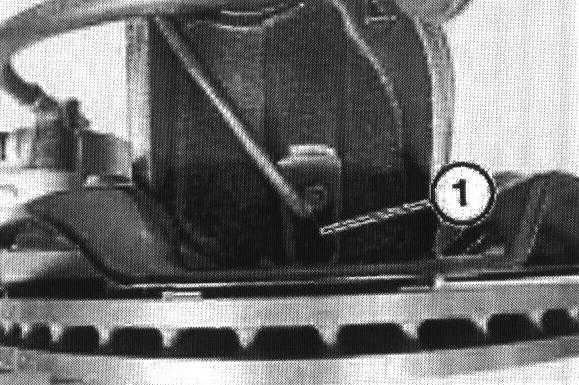

Remove ABS sensor bolt and sensor (1) to avoid damage when removing hub.
ABS sensor to steering knuckle
Allen headed bolt 8 Nm





Release four bolts (1) holding wheel hub to knuckle carrier.
Wheel hub to knuckle carrier
M10 56 Nm

Remove wheel hub from knuckle and drive shaft.

Refit wheel hub to knuckle and drive shaft.

Refit new hub collar and tighten down.
Output shaft to angular contact ball bearing
M22 x 1.5 stake nut 182 Nm
Note: Use only once.



Caution: Lock collar nut into groove on drive shaft thread after tightening.
