Home >> Mini >> 2002 >> Cooper S (R53) L4-1.6L SC (W11) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Chassis >> Steering EHPS (EHPS Electro-Hydraulic Steering Assistance) >> Steering Assistance EHPS >> Fan, Power Steering

Fan, Power Steering

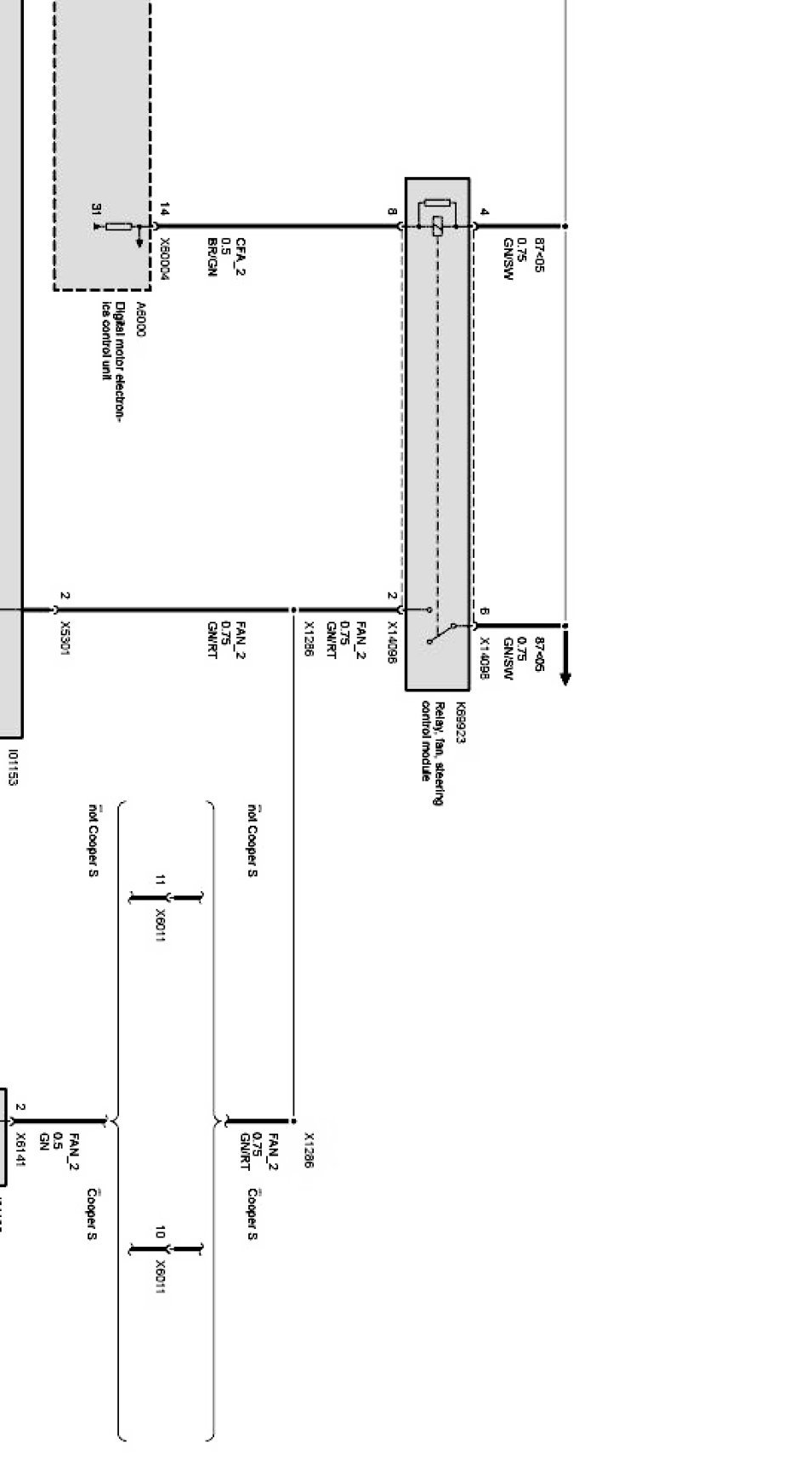

Electric fan Hot country version Part 1:

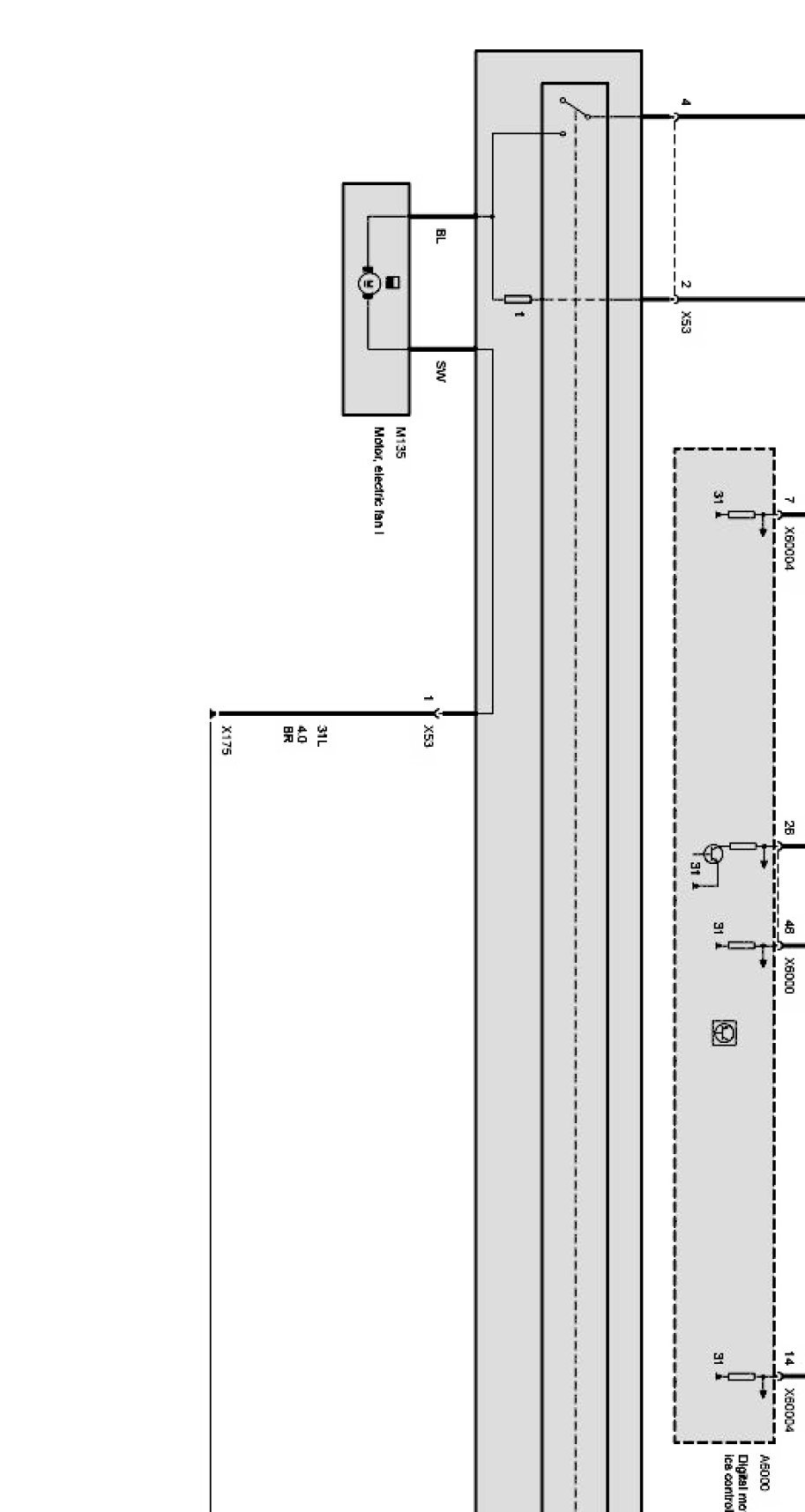

Electric fan Hot country version Part 2:

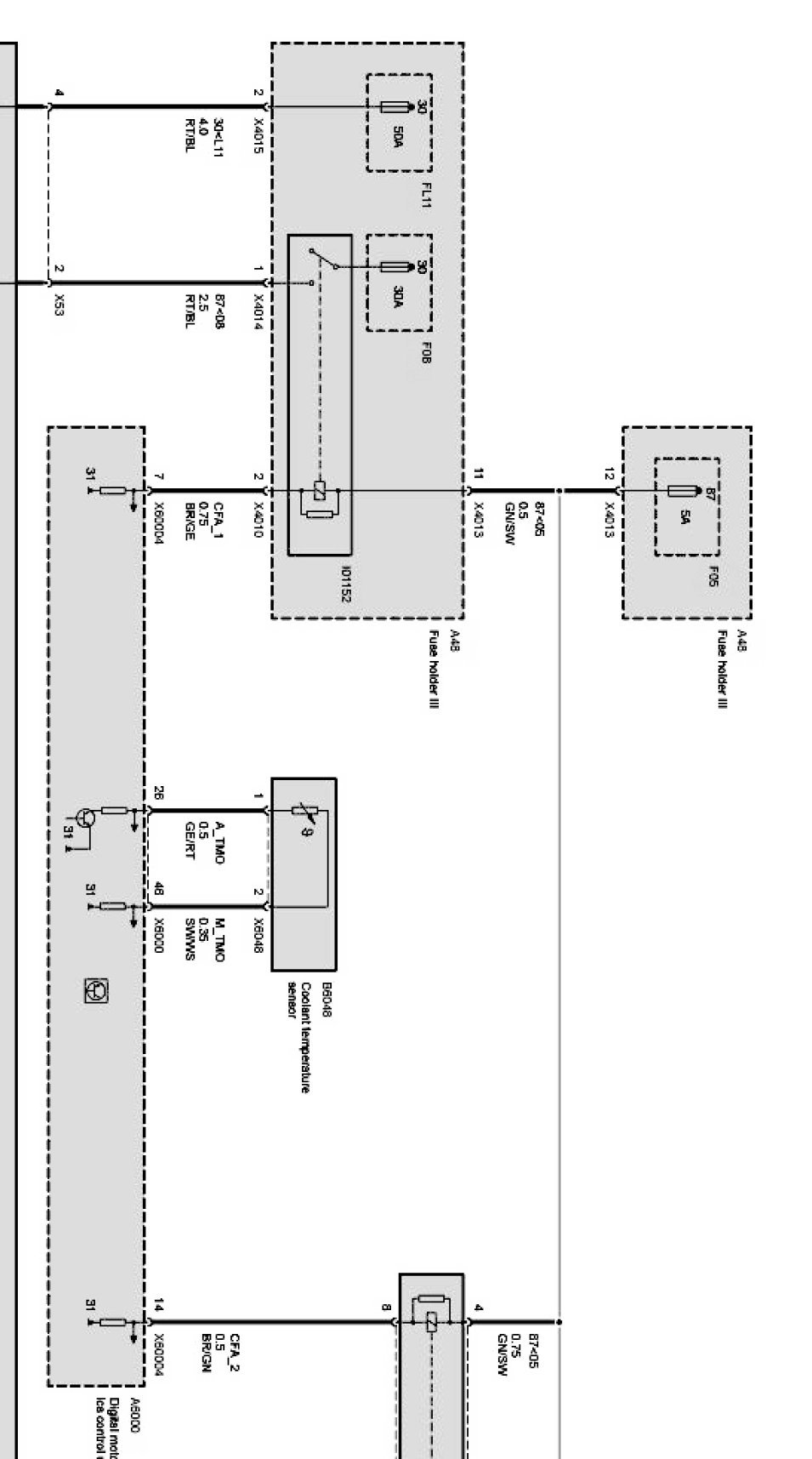

Electric fan Hot country version Part 3:

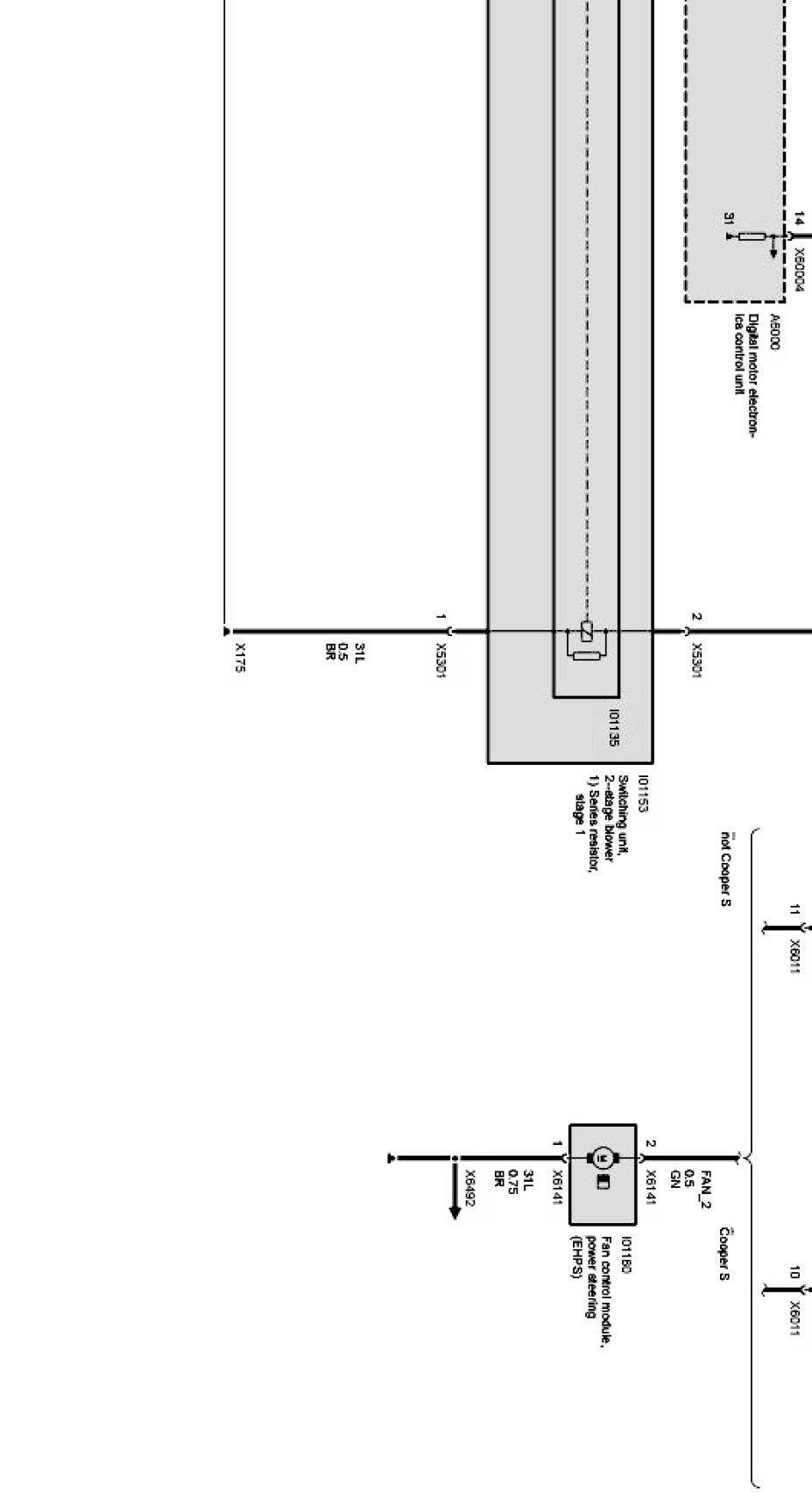

Electric fan Hot country version Part 4:
