Cooper S (R53) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X7
>>
X747 Adapter 613240, Storage Location M210
>>
S47 System Lock, Driver's Door (Up to 03/02)
S47 System Lock, Driver's Door (Up to 03/02)
Connector View
X747 Component connector (8-pin, black)

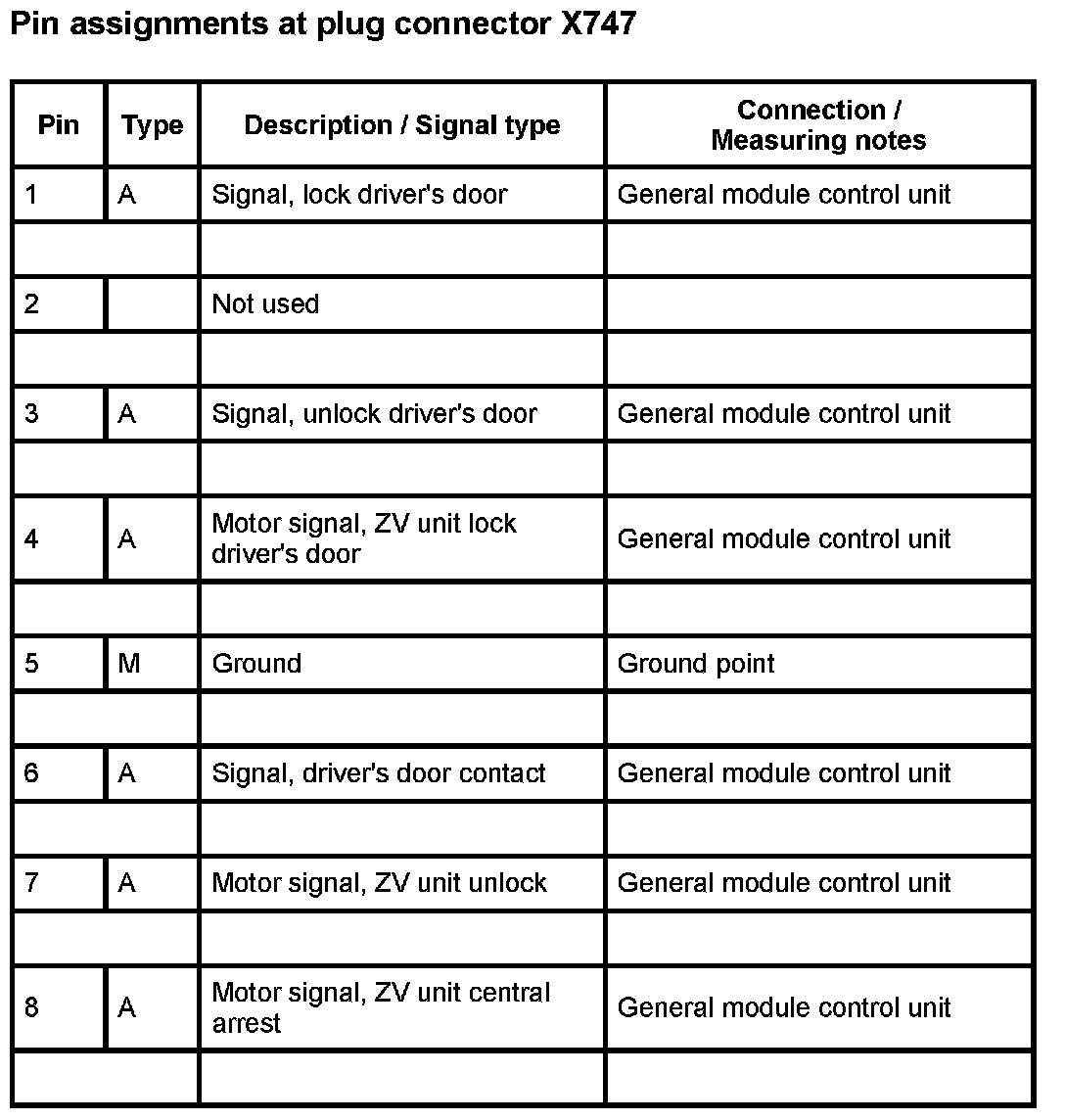

Pin Assignment
X747:
