Cooper S (R53) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X3
>>
X332 No Adapter
>>
A1 General Module Control Unit With IHKA Automatic Heating/Air Conditioning System Up to 03/02
A1 General Module Control Unit With IHKA Automatic Heating/Air Conditioning System Up to 03/02
Connector View
X332 Component Connector (20-Pin, Black)
Pin Assignment

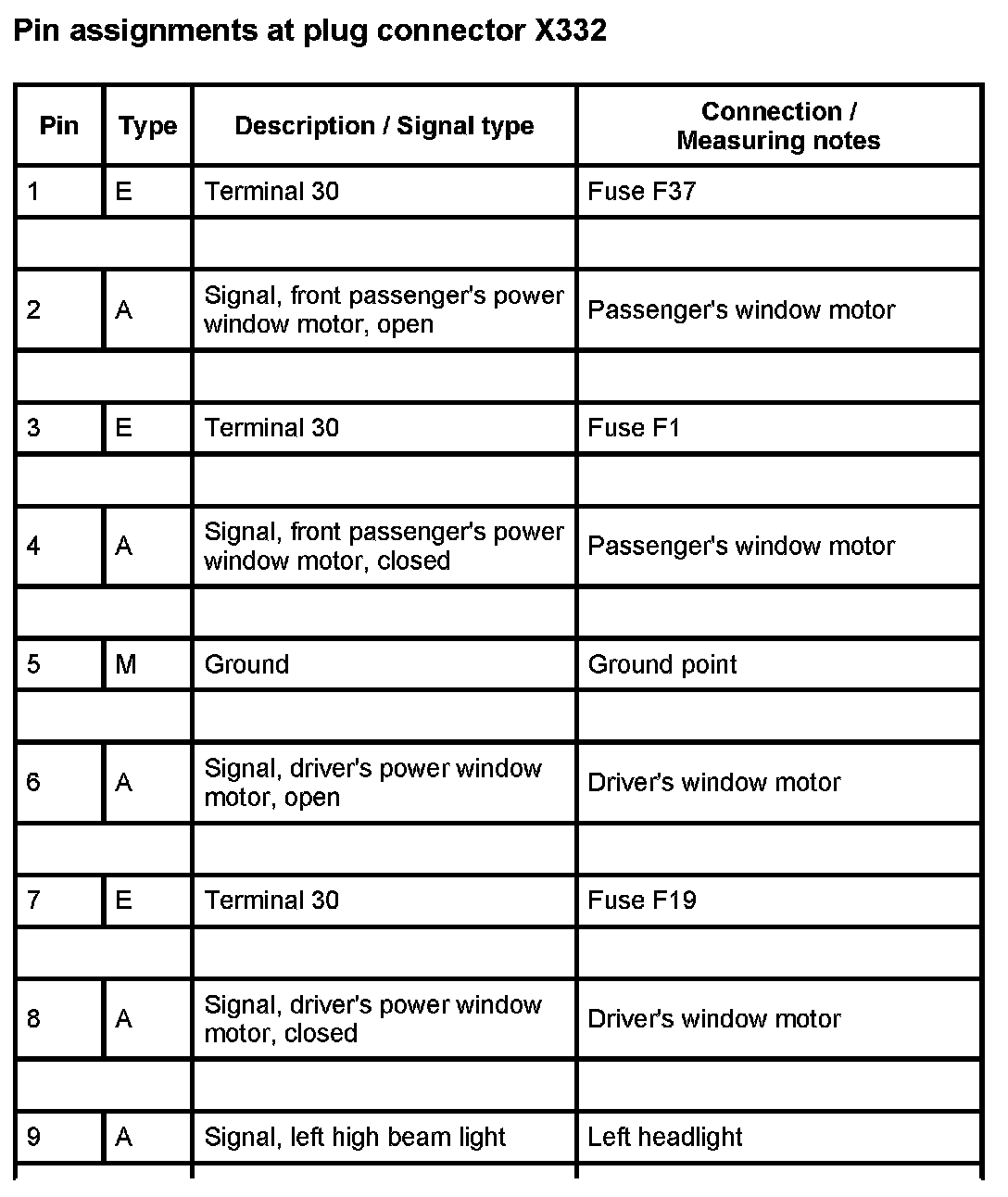

X332 Part 1:

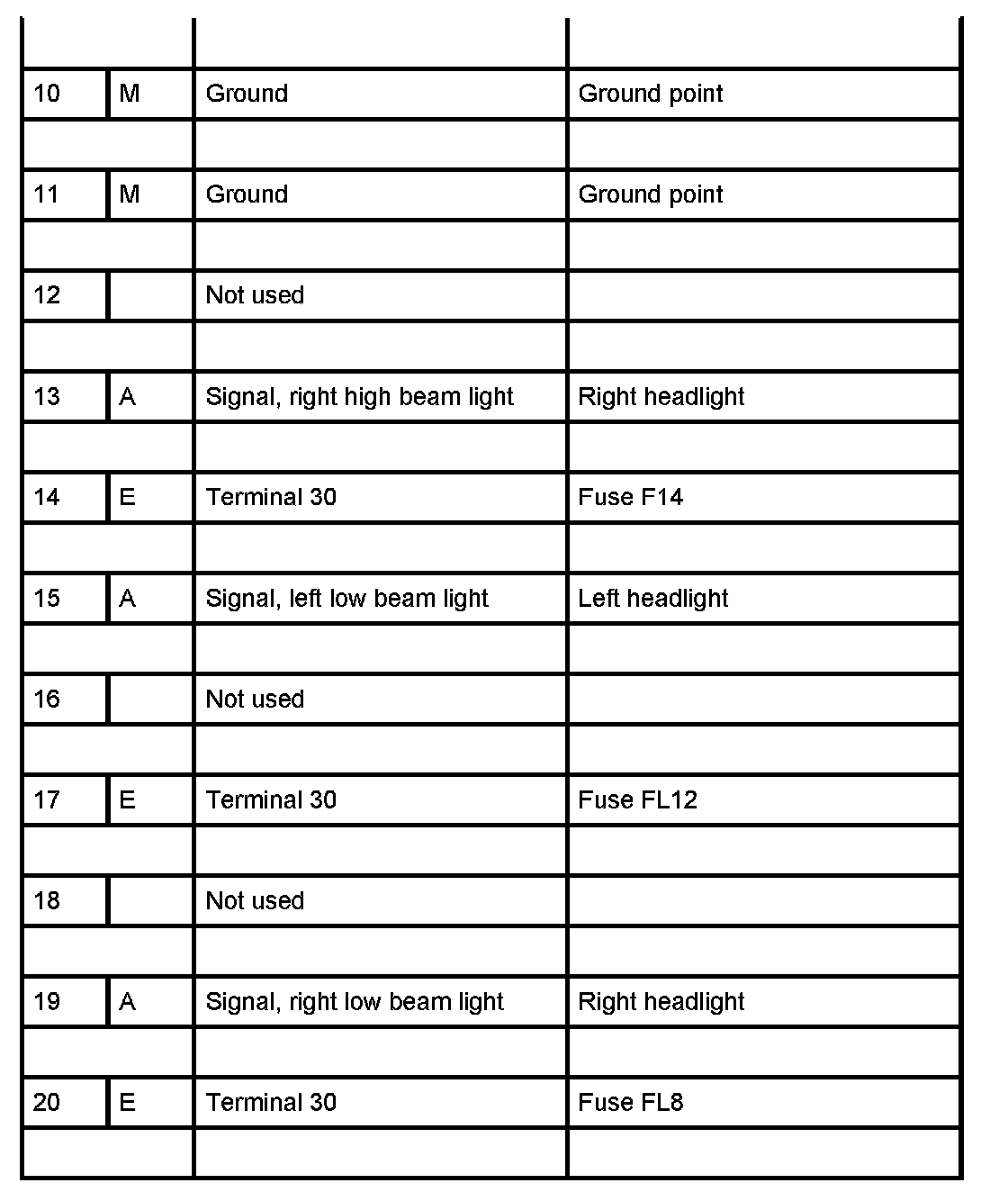

X332 Part 2:
