A1 General Module Control Unit With IHKR Integrated Heating/Air Conditioning Control Up to 03/02

Connector View




X255 Component connector (54-pin, blue)

Pin Assignment

x255 Part 1:





x255 Part 2:

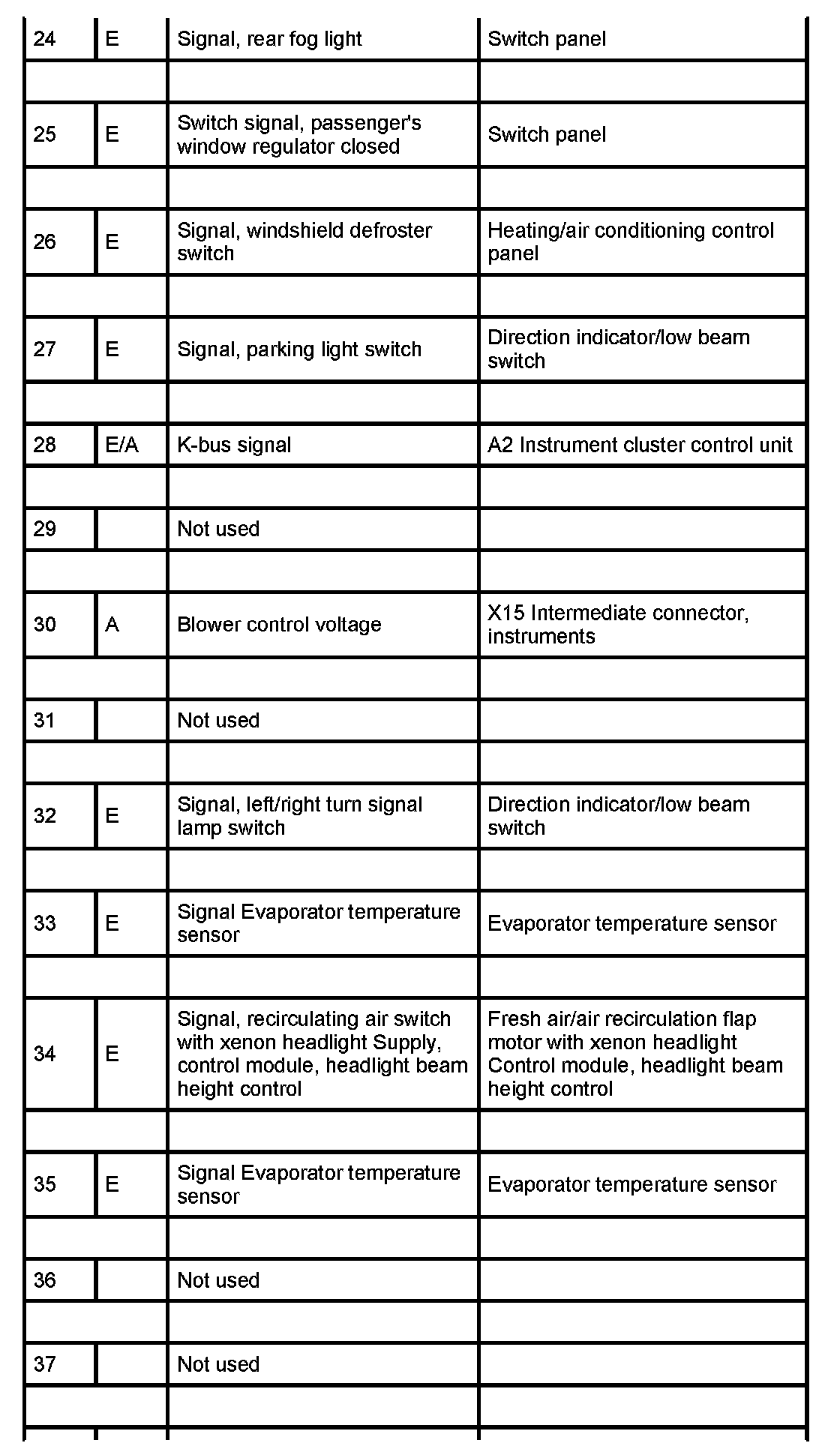

x255 Part 3:

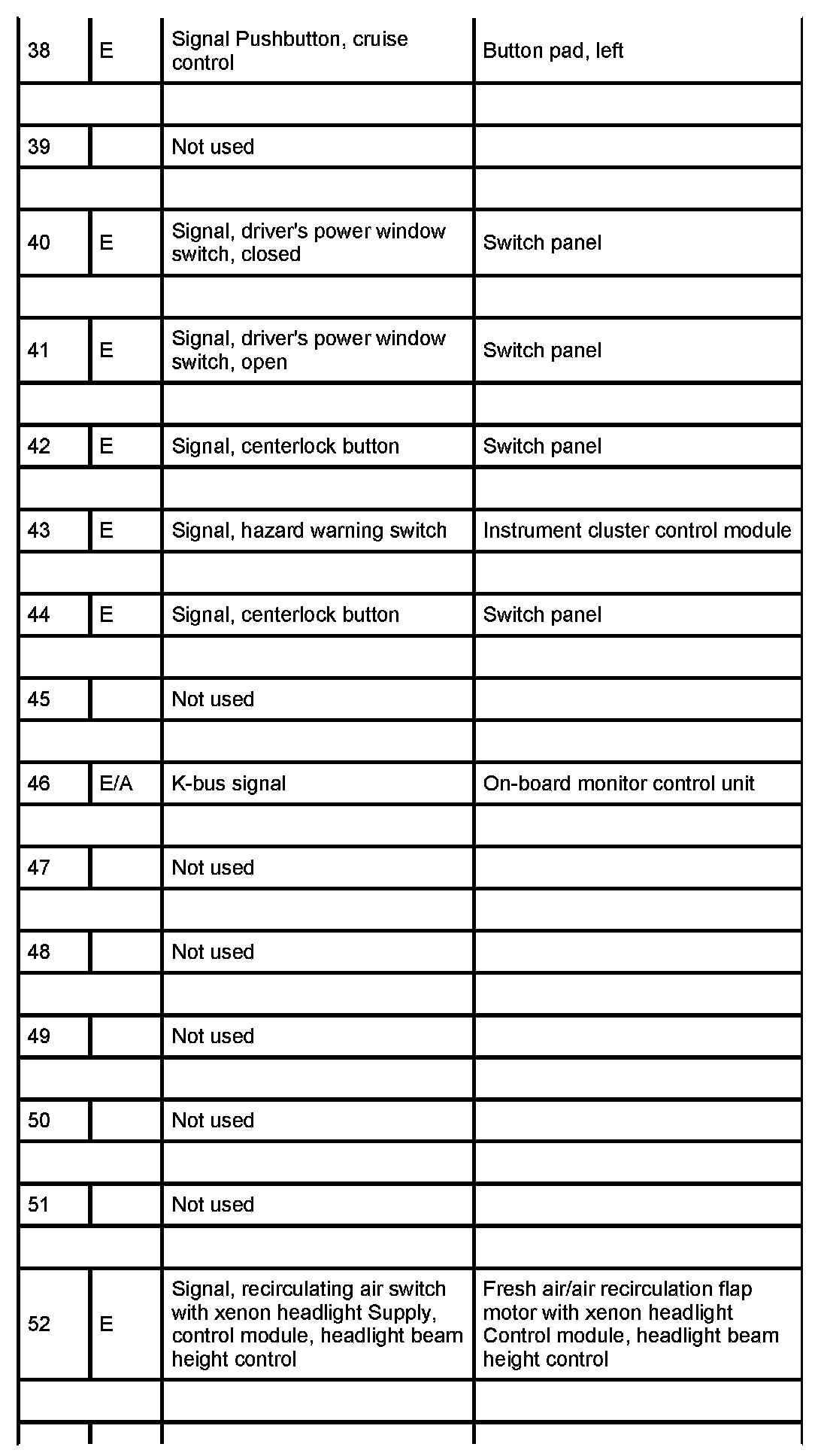

x255 Part 4:

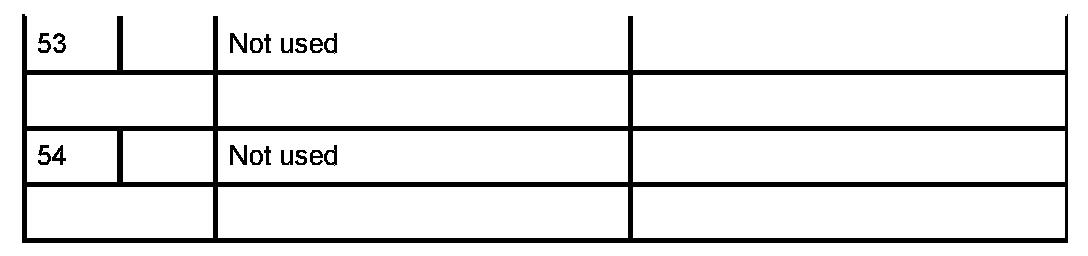

x255 Part 5:
