X1659 Adapter 613190, Storage Location F108
>>
A836 Electronic Immobilizer Control Unit (Up to 03/02)
A836 Electronic Immobilizer Control Unit (Up to 03/02)
Connector View
X1659 Component connector (13-pin, black)

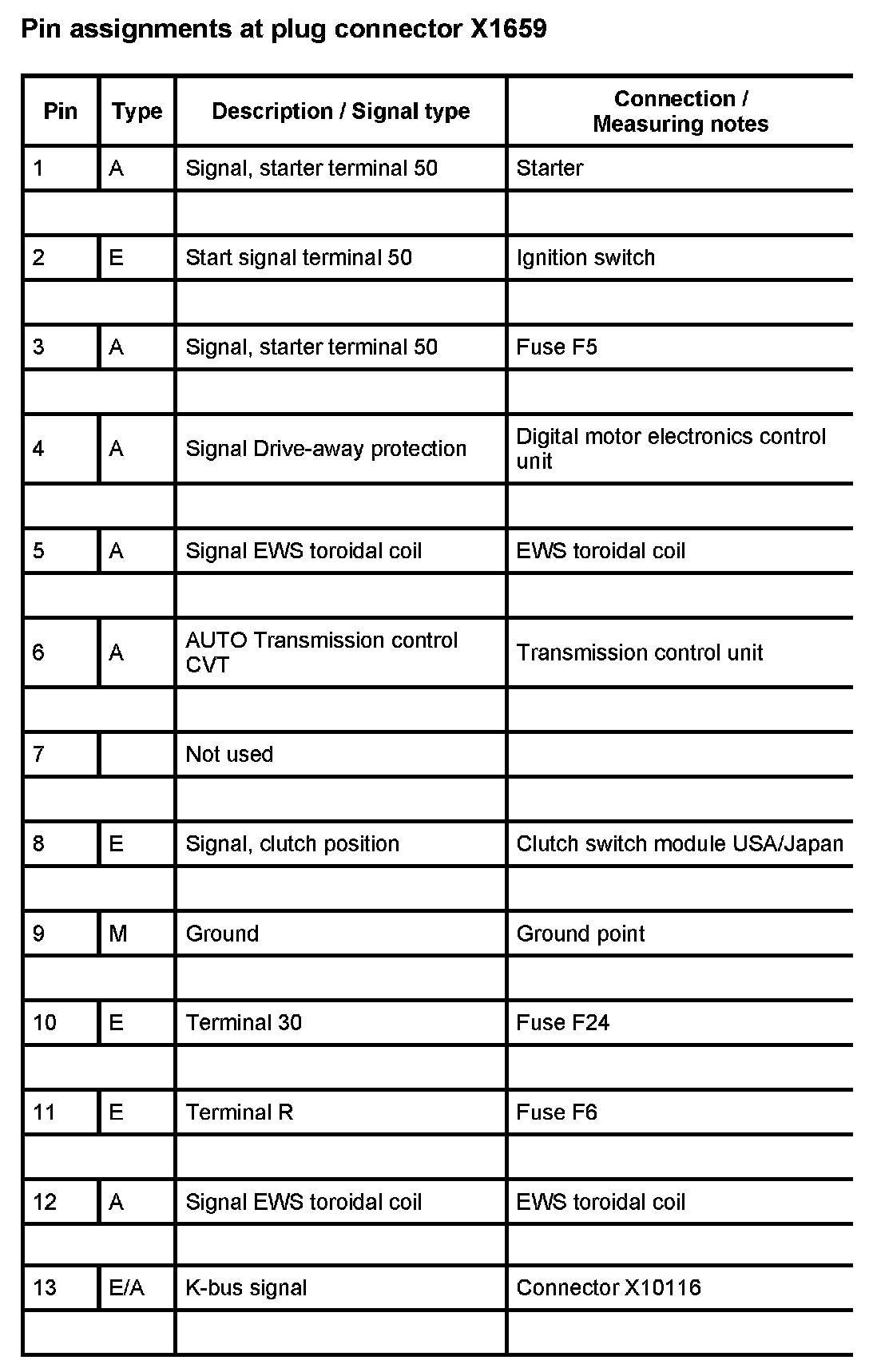

Pin Assignment
X1659:
