Rear

Replacing Rear Left Or Right Brake Hose

Note: General information. Description and Operation

After completing work, bleed brake system. Service and Repair

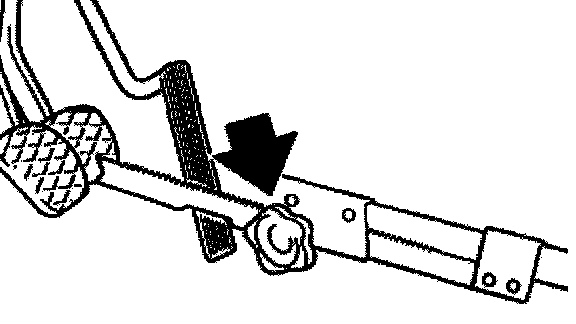

Apply pedal prop and depress brake pedal slightly. This prevents brake fluid from escaping from expansion tank after brake pipes have been disconnected (which would enable air to enter the braking system).





Disconnect brake hose from pipe.

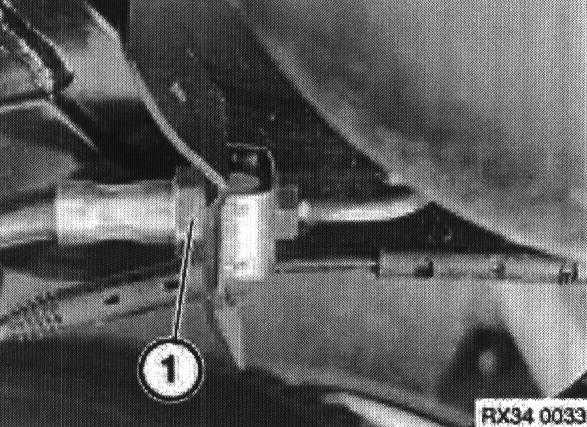

Brace brake hose on hexagon head (1) to ensure hose cannot rotate in retaining bracket.
Rear brake pipe to hose connection 14 Nm

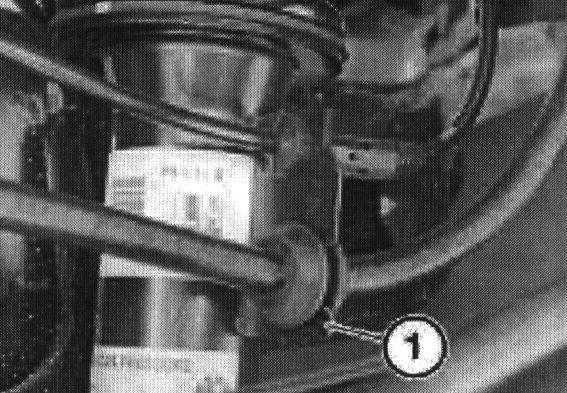

Release hose from bracket (1) on damper assembly.

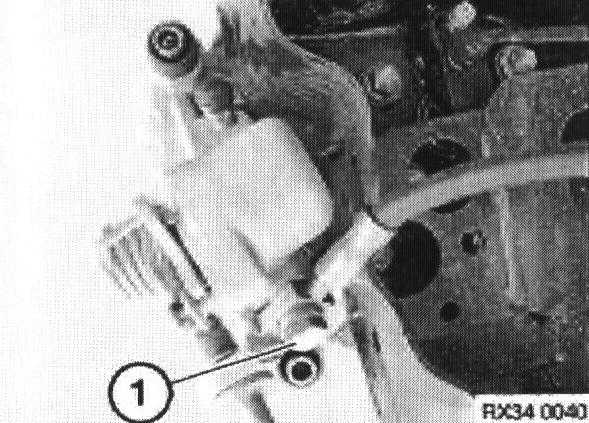

Remove banjo bolt (1) and remove brake hose from caliper.
Brake hose to brake calliper
Banjo Bolt
M12 x 1.0 40 - 50 Nm

Install hint:
Mount and tighten brake hose on brake caliper first, then on brake line/brake hose point of connection.
Never twist brake hose when installing it.
