Front

Replacing Front Left Or Right Brake Hoses

Note: General information. Description and Operation

After completing work, bleed brake system. Service and Repair

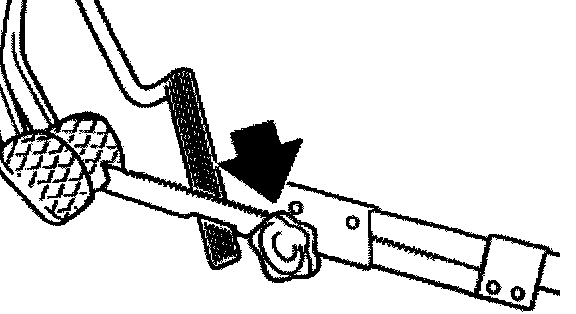

Apply pedal prop and depress brake pedal slightly. This prevents brake fluid from escaping from the expansion tank after brake pipes have been disconnected (which would enable air to enter the braking system).





Disconnect brake hose from pipe.

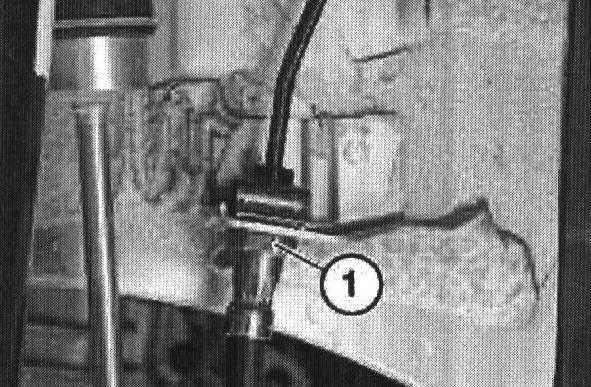

Brace brake hose on hexagon head (1) to ensure hose cannot rotate in retaining bracket.
Front brake pipe to hose connection 14 Nm

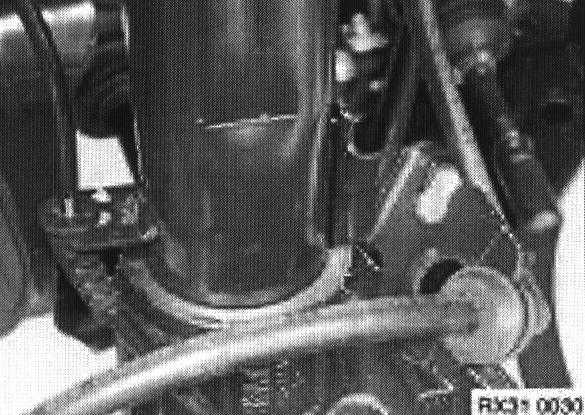

Release hose from bracket on damper assembly.

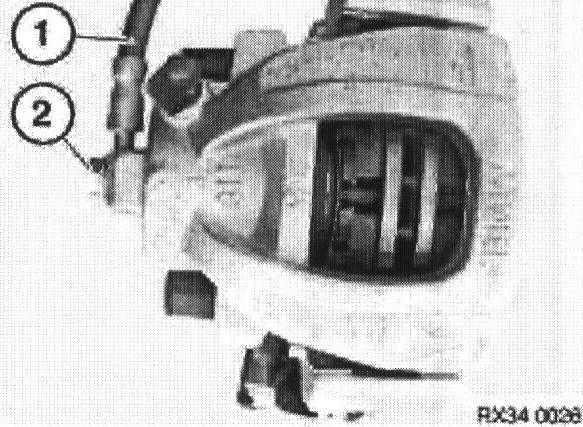

Remove banjo bolt (2).

Remove brake hose from caliper (1).
Brake hose to calliper
M10 x 1.5 Banjo bolt 40 Nm

Install hint:
First tighten brake hose to caliper.

Fit to damper assembly.

Install hint:
Mount and tighten brake hose on brake caliper first, then on brake line/brake hose point of connection. Never twist brake hose when installing it.

Ensure hose does not contact body.
