Replacing A Front Brake Anchor Plate/Brake Guard Plate

Removing And Installing/Replacing A Front Brake Anchor Plate/Brake Guard Plate





Remove front brake disk.
Refer to Removing and installing/replacing both front disk brakes. Front

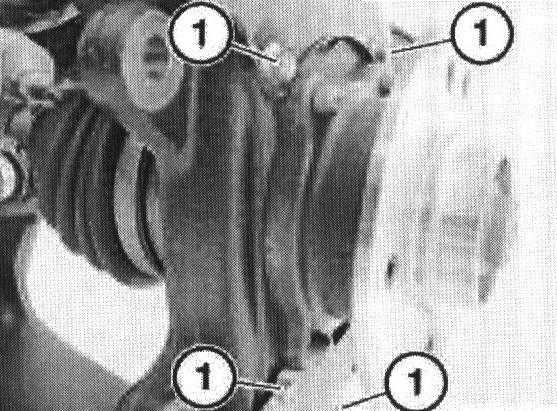

Release screws (1) and remove brake guard plate.
Dust shield to steering knuckle
M6 x 10 8 Nm
