Replacing Trim For Pedal Assembly

Removing And Installing/Replacing Trim For Pedal Assembly

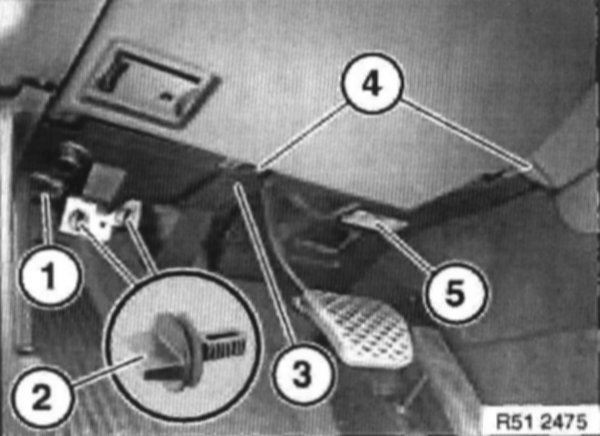

Unlock gong (1) and remove from trim (3).
Release screws (4).
Turn toggle (2) and remove.
Lower trim (3) a little and disconnect plug connection for footwell light (5).
Remove trim (3).

Replacement only:
Lever out footwell light (5).
