51 16 220 Replacing Trims For Center Console

Replacing Trims For Center Console

Remove oddments tray.

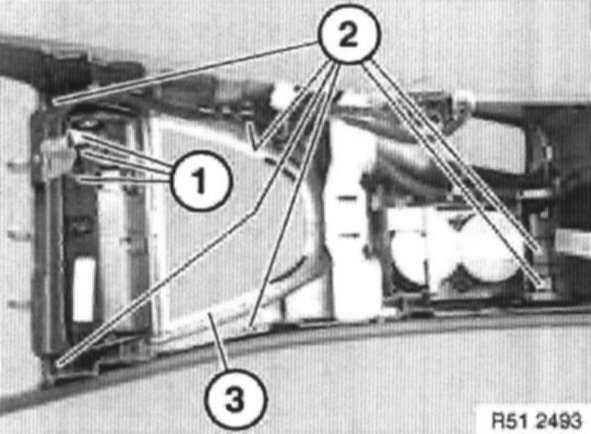

Disconnect plug connection (1).
Release screws (2).
Remove base (3) for centre console and place on a clean surface.


NOTE: The operation "Removing base for center console" ends here.


Removing front cup holder:

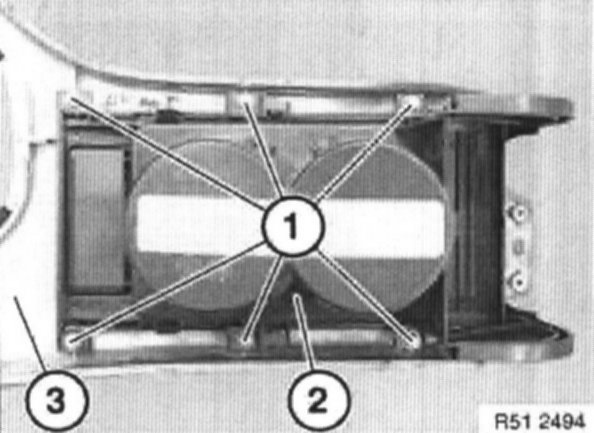

Release screws (1).
Remove cup holder (2) from base (3) for center console.







Installation:

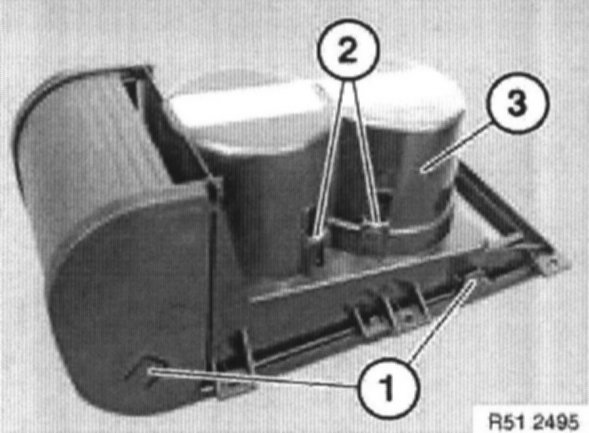

Left/right catches (1) must be correctly secured.
All springs (2) on cup holder (3) must not be damaged.







Removing decorative trim on front ashtray cover:

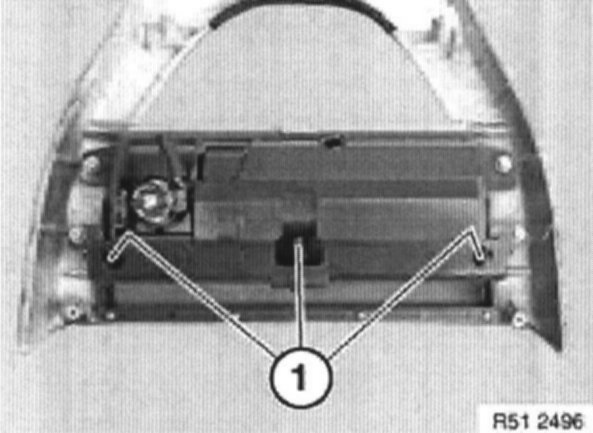

Release screws (1) and remove decorative trim from ashtray cover.







Removing front ashtray:

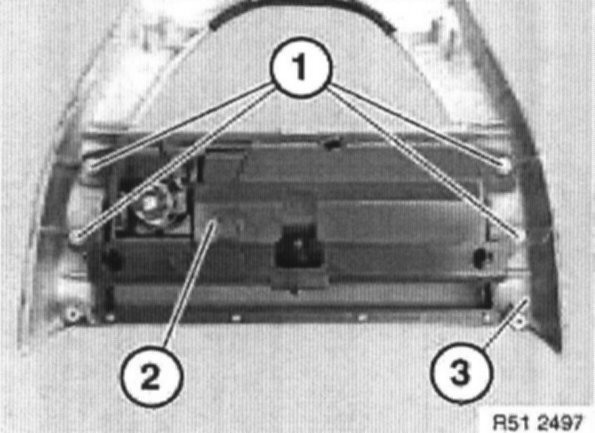

Release screws (1) and remove ashtray (2) from base (3) for center console.







Replacement of base of center console only:

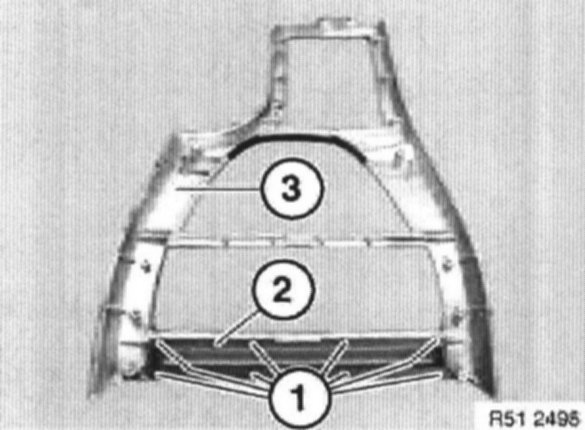

Release screws (1).
Remove trim (2) for switch from base (3) for center console.
