Procedures

Removing And Installing/Replacing Steering Wheel
Refer to Removing and installing or replacing airbag unit.

Move steering wheel/wheels to straight ahead position

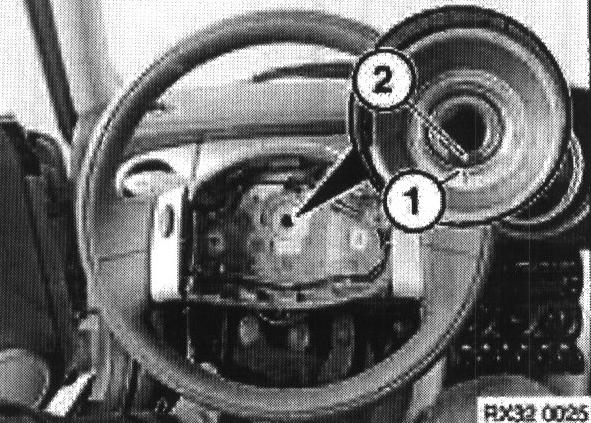

Release screw (1) and remove steering wheel (2).

Install hint:
Move wheels to straight ahead position.
Fit steering wheel.
Markings on steering wheel (3) and steering spindle (4) must match up.
Steering wheel to steering knuckle
M14 x 1.5 45 Nm
