Steering Column Lock: Service and Repair

Special Tools Required:
^ 32 3 110

Disconnect battery.

Refer to Disconnecting and connecting battery.

Remove ring antenna.

Refer to Removing and installing/replacing ring antenna of electronic immobilizer.





With ignition key, turn lock barrel to position "R".

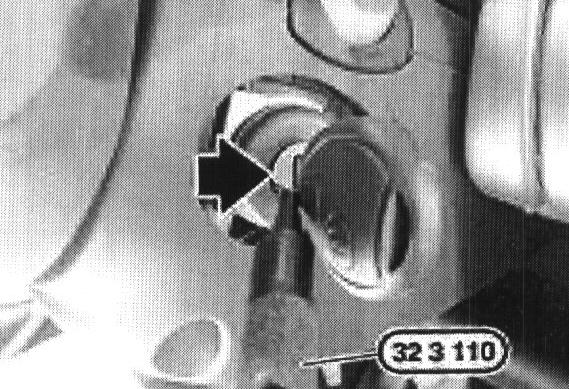

Press special tool 32 3 110 into locking cylinder hole and remove locking cylinder.

Note: If necessary, turn special tool in hole.
