Replacing Lower Section of Steering Column Trim

Move steering column to "top" position.

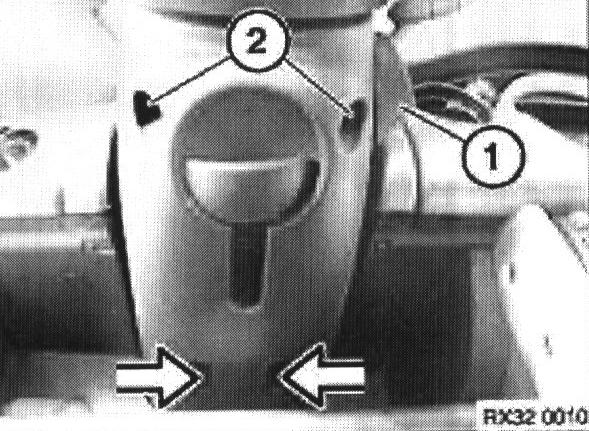

Remove ignition switch rubber (1).

Remove screws (2).

Install hint:

Steering wheel column lower trim 2 Nm

Release trim retaining clips (arrows).

Remove trim.

Install hint:
Ensure lower trim is correctly aligned to the upper trim.
