Exhaust System: Service and Repair

Note: Exhaust vibration dampers were only fitted to vehicles built up to September 2001.

Remove rear muffler.





Remove vibration damper retaining bolts.

Replace vibration dampers and replace washer.

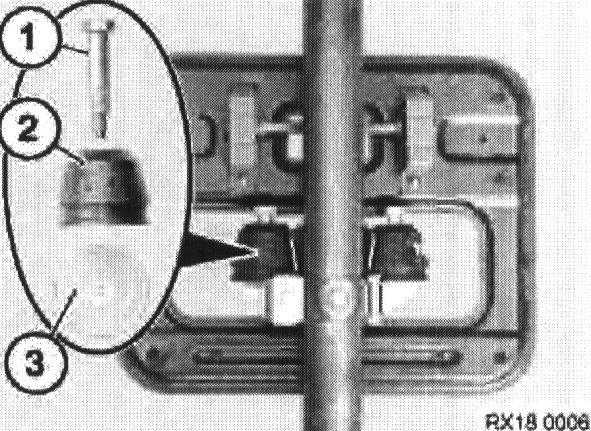

1. Vibration damper retaining bolt
2. Vibration damper
3. Washer
Vibration damper on bracket 21 Nm
