22 11 100 Replacing Right Engine Mounting Bracket (Up to 12/03)

22 11 100 - Replacing right engine mounting bracket (up to 12.03)


Necessary preliminary tasks:
- Remove top engine carrier bracket
- Remove tank venting valve
- Support engine with trolley jack. Place suitable material on trolley jack to protect oil sump against damage.

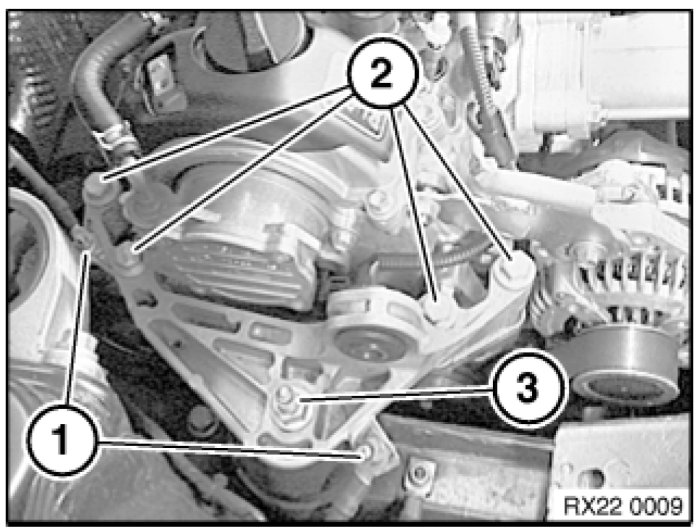

Release nuts (1) and remove grounding strap.
Tightening torque, 22 11 11AZ Specifications.

Release nut (2) and screws (3).
Tightening torque 22 11 1AZ/2AZ Specifications.

Remove engine support bracket.
