Accelerator Pedal: Service and Repair

Accelerator Pedal and Bracket

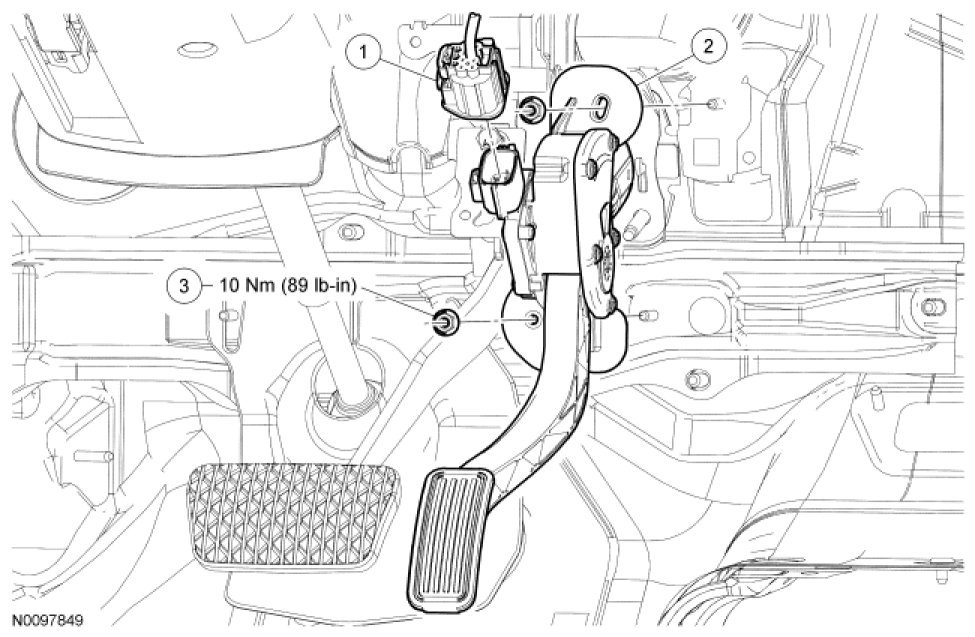

2.5L, 2.5L Hybrid and 3.0L Vehicles

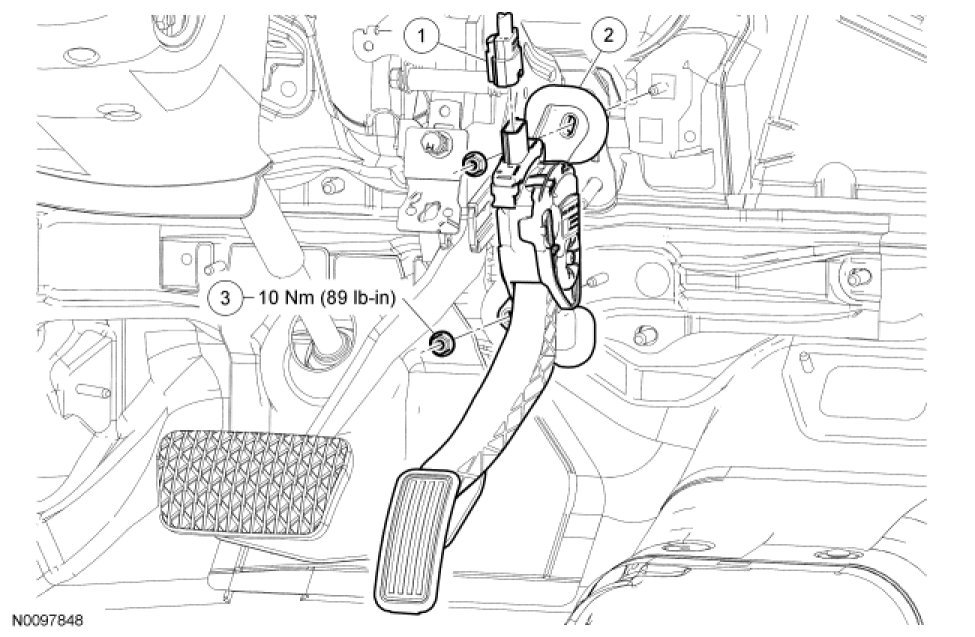

3.5L Vehicles









Removal and Installation

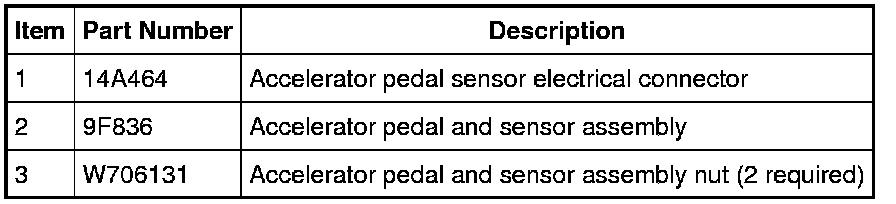

1. Disconnect the accelerator pedal sensor electrical connector.

2. Remove the 2 nuts and the accelerator pedal and sensor assembly.
- To install, tighten to 10 Nm (89 lb-in).

3. To install, reverse the removal procedure.
