Evaporative Emissions Hose: Service and Repair

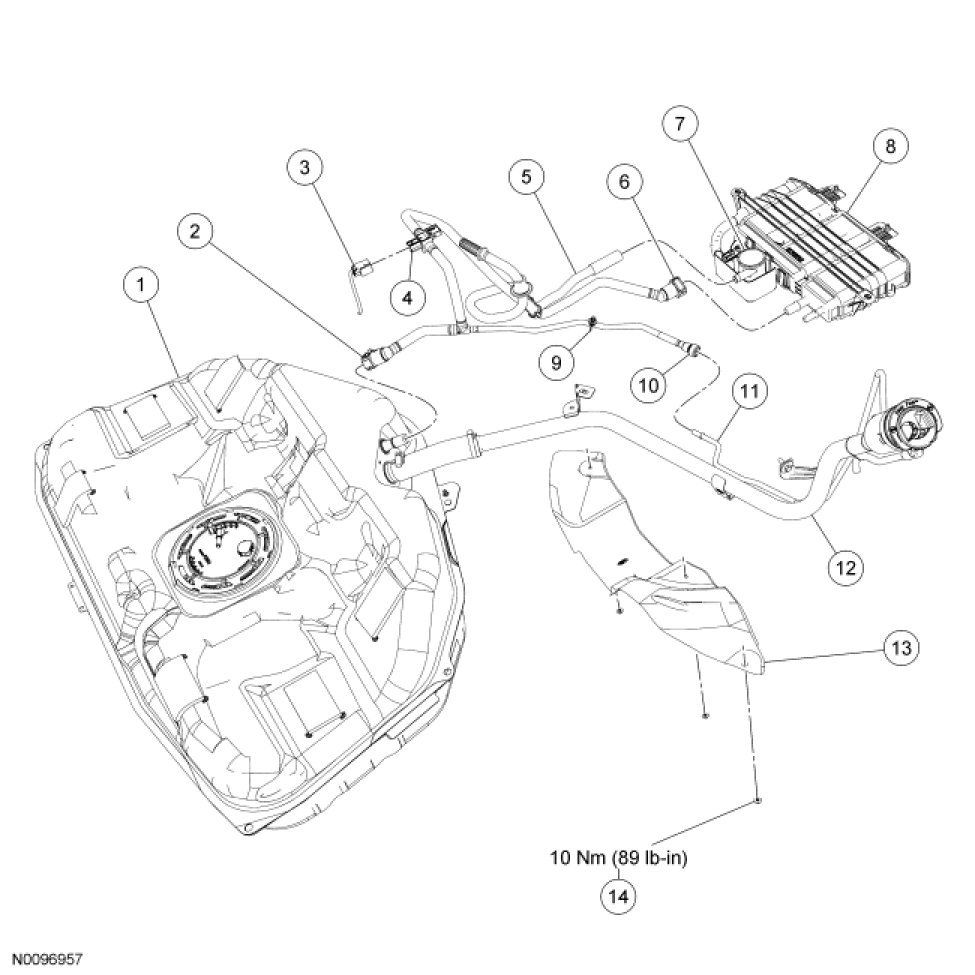

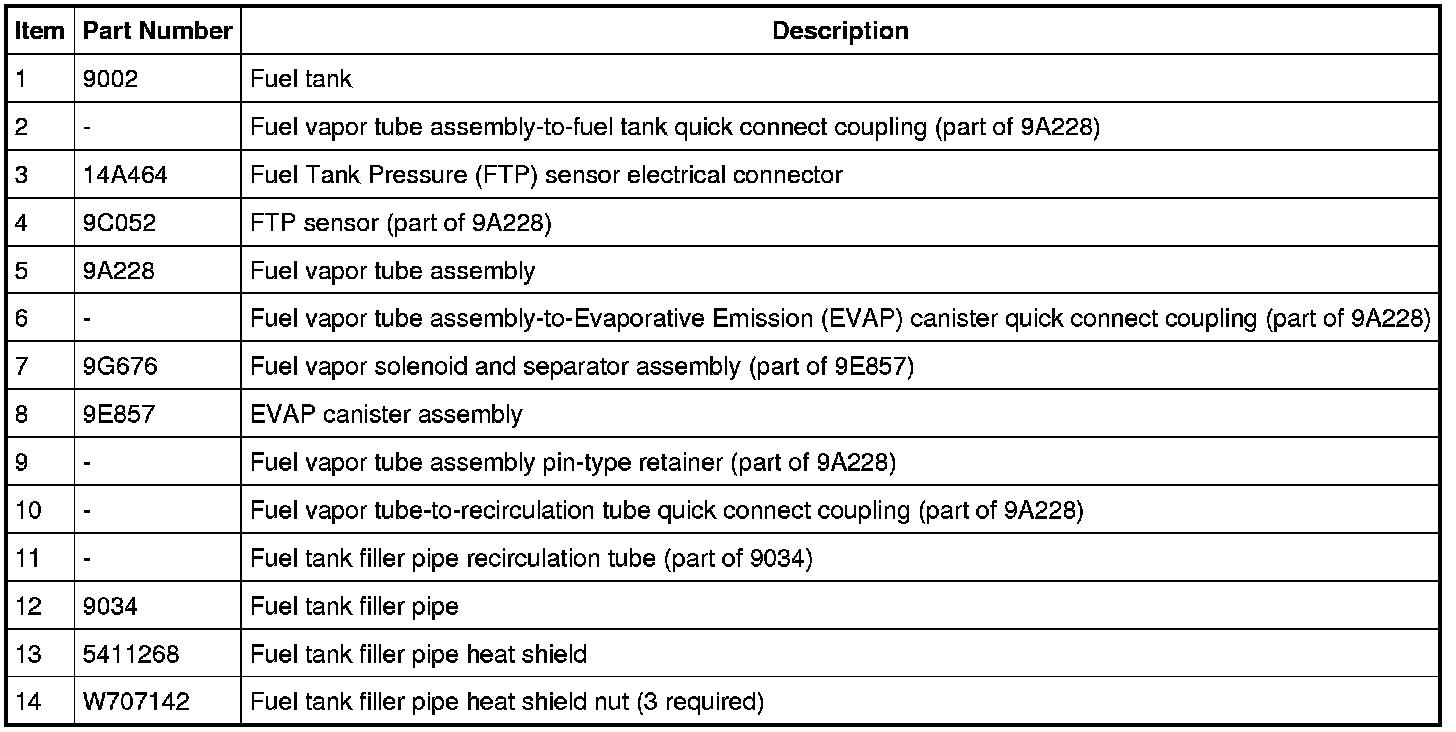

Fuel Vapor Tube Assembly - Front Wheel Drive (FWD)









Removal and Installation

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Disconnect the battery ground cable. For additional information, refer to Battery, Mounting and Cables Battery Disconnect.

3. Remove the 3 nuts and the fuel tank filler pipe heat shield.
- To install, tighten to 10 Nm (89 lb-in).

4. Disconnect the Fuel Tank Pressure (FTP) sensor electrical connector.

5. Disconnect the fuel vapor tube assembly-to-fuel tank quick connect coupling. For additional information, refer to Fuel System - General Information Quick Connect Coupling.

6. Disconnect the fuel vapor tube assembly-to-Evaporative Emission (EVAP) canister quick connect coupling. For additional information, refer to Fuel System - General Information Quick Connect Coupling.

7. Disconnect the fuel vapor tube assembly from the fuel vapor separator and solenoid assembly.

8. Release the pin-type retainer.

9. Disconnect the fuel vapor tube assembly-to-recirculation tube quick connect coupling. For additional information, refer to Fuel System - General Information Quick Connect Coupling.

10. Remove the fuel vapor tube assembly.

11. To install, reverse the removal procedure.
- Carry out the Evaporative Emission System Leak Test. For additional information, refer to Evaporative Emission System Leak Test Testing and Inspection.
