Brake Disc

Brake Disc

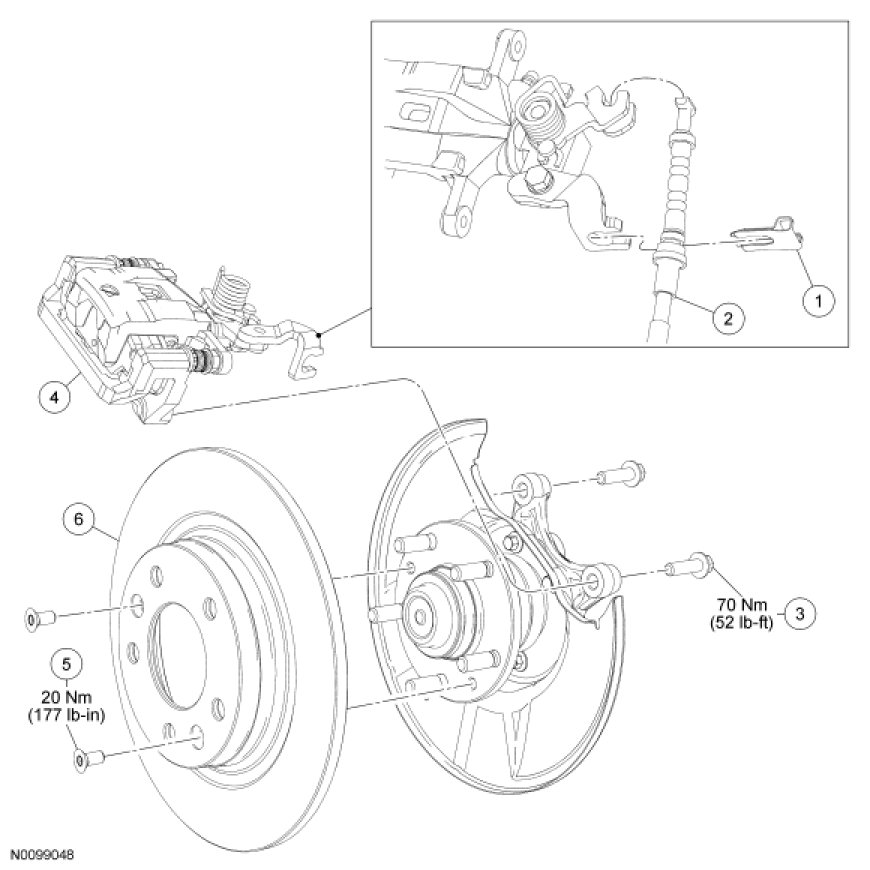

NOTE: Front Wheel Drive (FWD) shown, All-Wheel Drive (AWD) similar.

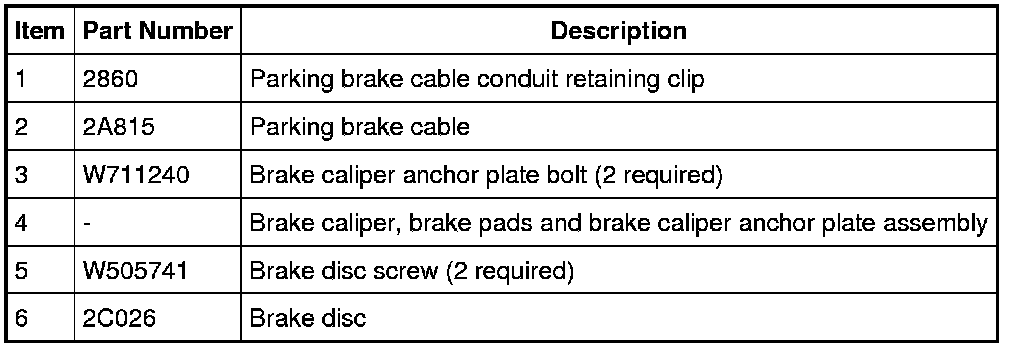

Removal

1. Remove the wheel and tire. For additional information, refer to Wheels and Tires Removal and Replacement.

2. Disconnect the parking brake cable from the brake caliper.
- Pull back the parking brake lever.

- Disconnect the cable from the parking brake lever.

- Remove the cable conduit retaining clip.

- Disconnect the cable from the brake caliper.

3. NOTICE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

Remove the 2 brake caliper anchor plate bolts and position the brake caliper, brake pads and brake caliper anchor plate aside as an assembly.

- Support the brake caliper, brake pads and brake caliper anchor plate assembly using mechanic's wire.

4. Remove the 2 brake disc screws and the brake disc.

Installation

1. NOTE: Make sure the brake disc-to-hub mounting surface is free of rust and foreign material before applying anti-seize lubricant.

Install the brake disc and the 2 brake disc screws.

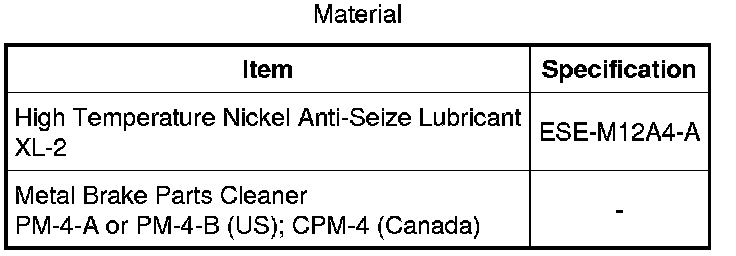

- Using the specified brake cleaner, clean the mating surfaces.

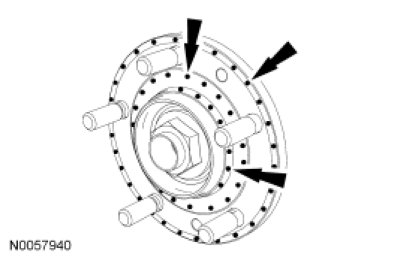

- Apply specified lubricant as shown.

- Tighten the screws to 20 Nm (177 lb-in).





2. NOTE: Make sure that the brake caliper hose is not twisted.

Position the brake caliper, brake pads and brake caliper anchor plate assembly and install the 2 brake caliper anchor plate bolts.

- Tighten to 70 Nm (52 lb-ft).

3. Install the parking brake cable to the brake caliper.
- Pull back the parking brake lever.

- Connect the cable to the parking brake lever.

- Install the cable conduit retaining clip.

4. Install the wheel and tire. For additional information, refer to Wheels and Tires Removal and Replacement.

5. Cycle the park brake several times to verify normal operation.
- Apply brakes several times to verify correct brake operation.
