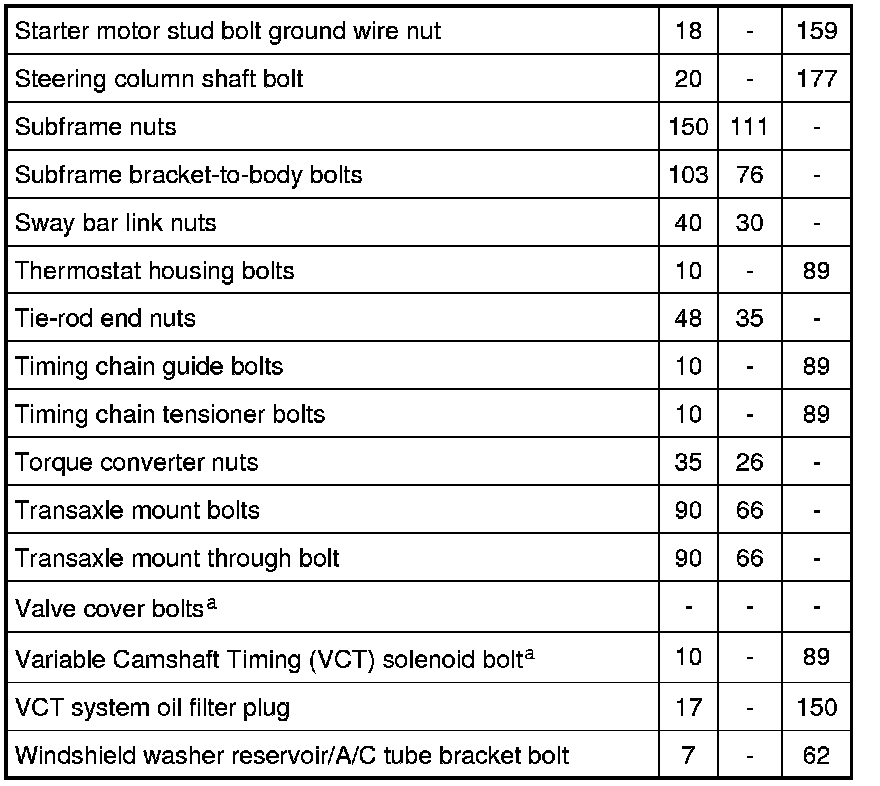

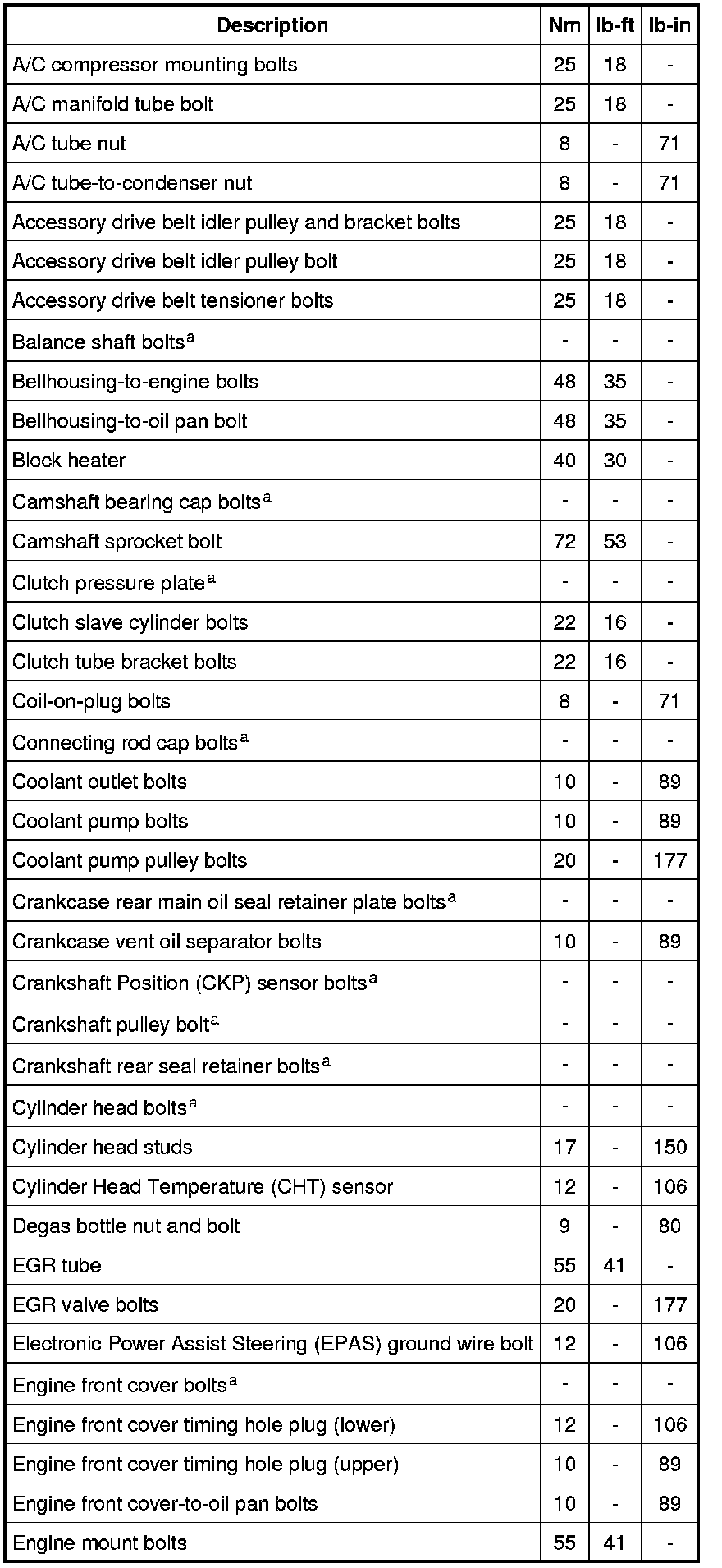

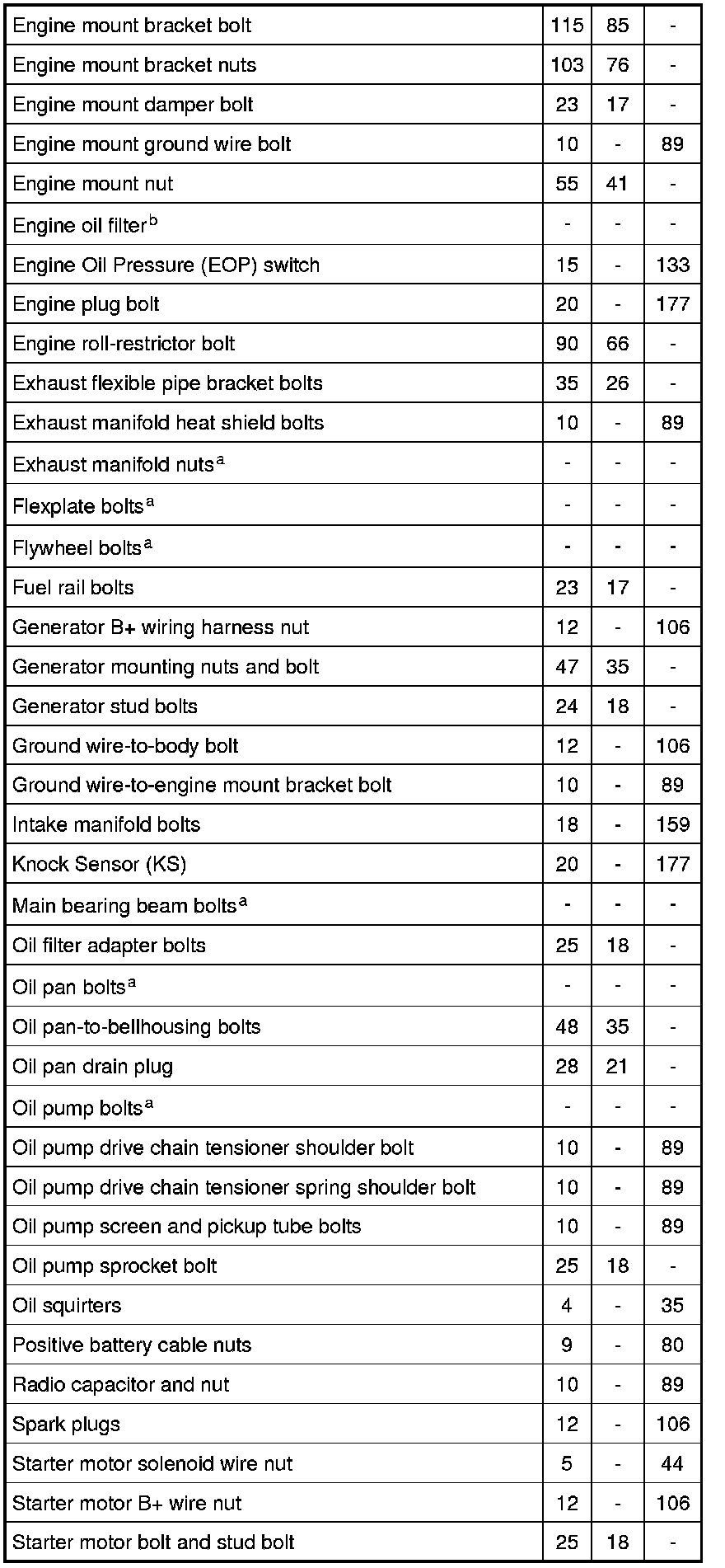

Torque Specifications

Torque Specifications













a Refer to the procedure for the specification.

b Lubricate the engine oil filter gasket with clean engine oil. Tighten the oil filter three-fourths turn after the oil filter gasket makes contact with the oil filter adapter.
