Oil Separator: Service and Repair

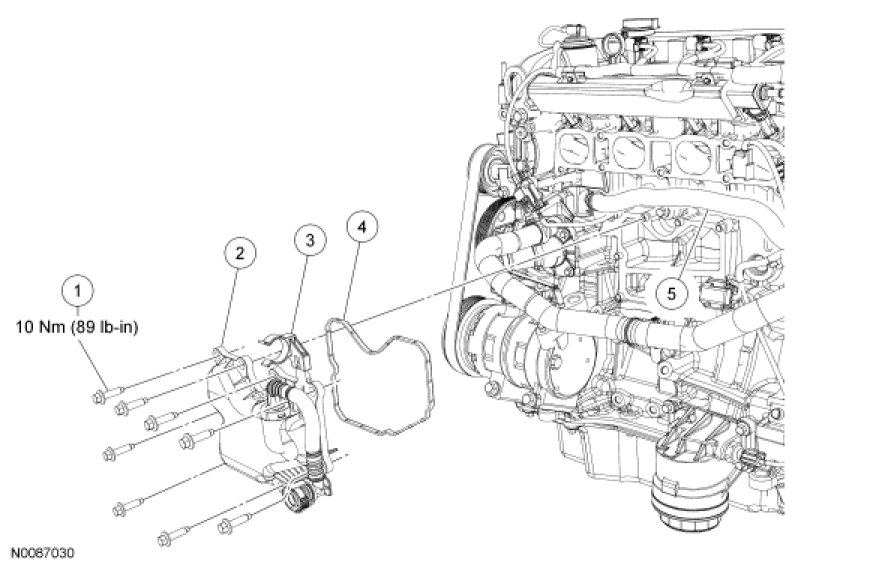

Crankcase Vent Oil Separator









Removal and Installation

1. Remove the intake manifold. For additional information, refer to Engine - 2.5L Intake Manifold.

2. Release the coolant bypass hose from the clip.

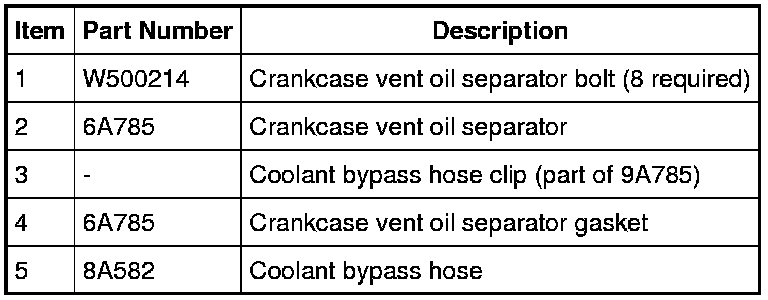

3. Remove the 8 bolts and the crankcase vent oil separator and gasket.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
- Clean the engine block mating surface.
