FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2011
>>
Milan FWD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>

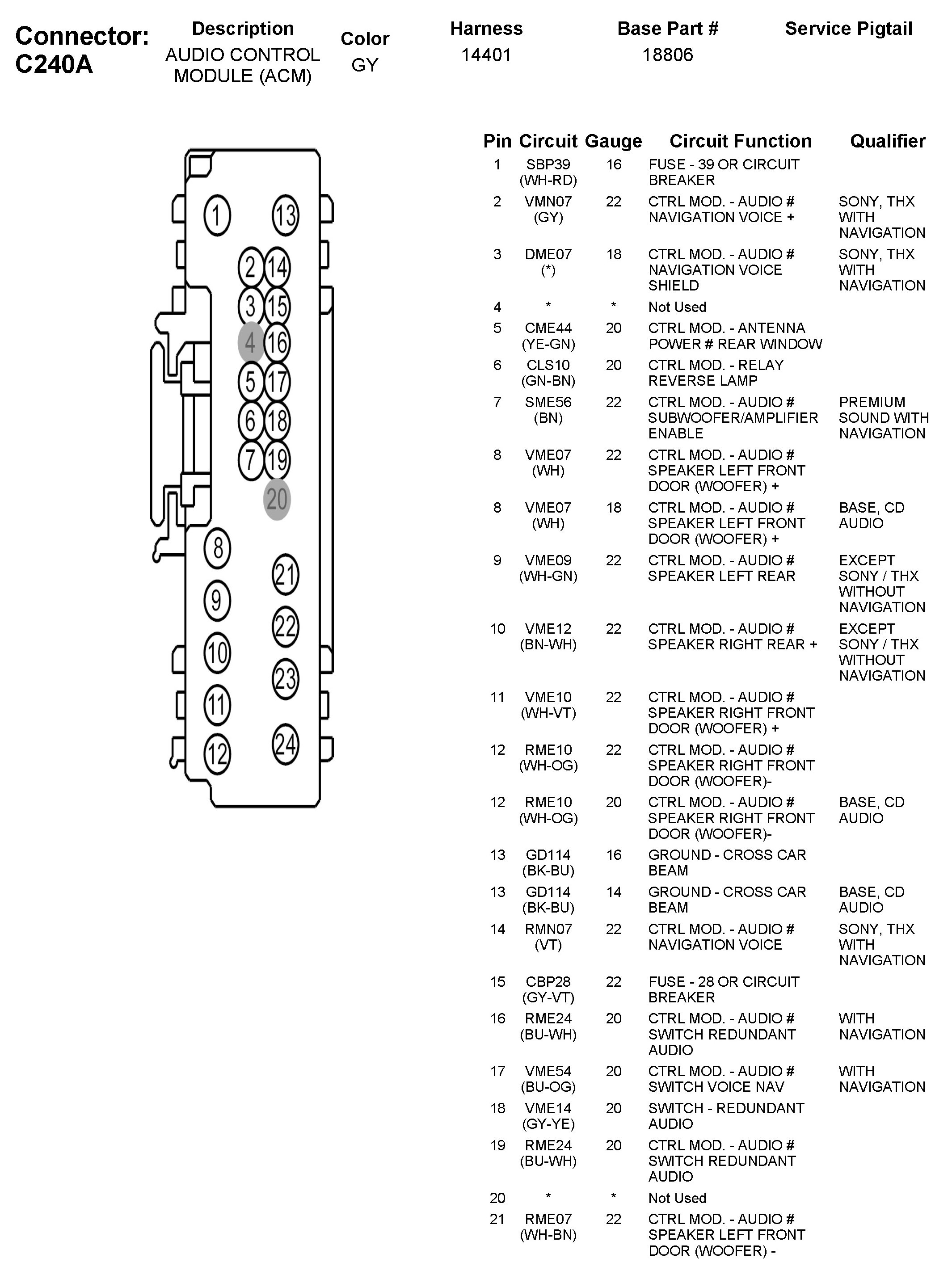

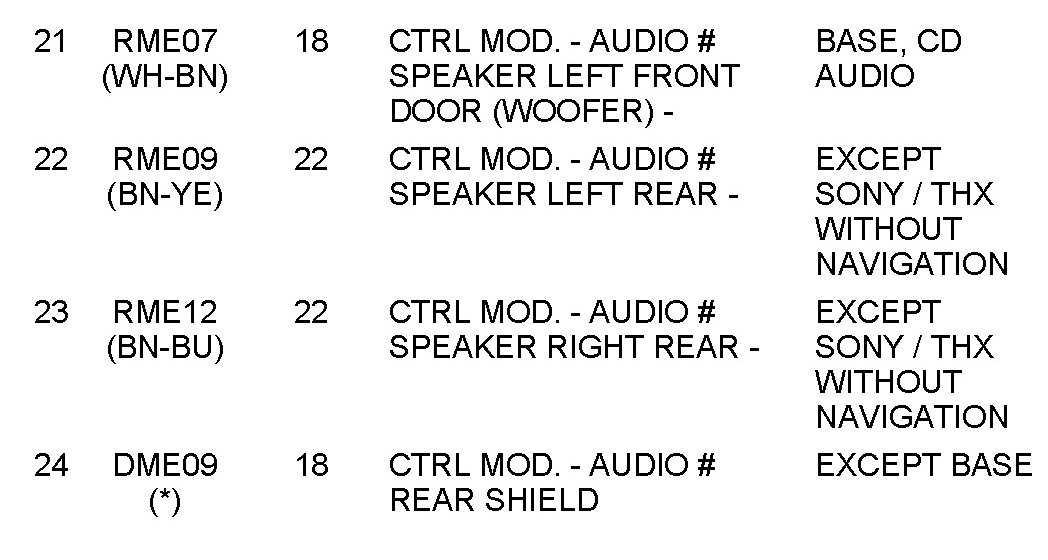

C240A Audio Control Module (ACM)
C240A Audio Control Module (ACM)
