Front Door Limiter: Service and Repair

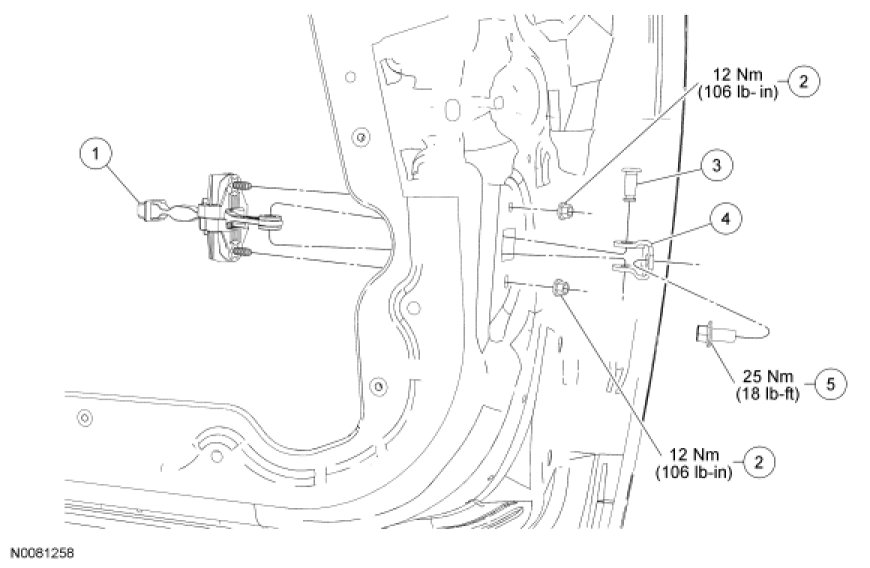

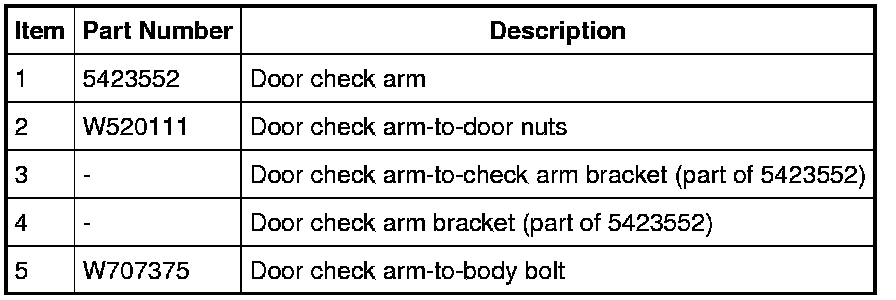

Door Check Arm









1. Remove the door trim panel. For additional information, refer to Interior Trim and Ornamentation Service and Repair or Service and Repair.

2. Remove the door check arm-to-body bolt.
- To install, tighten to 25 Nm (18 lb-ft).

3. Remove the door check arm-to-door nuts.
- To install, tighten to 12 Nm (106 lb-in).

4. To install, reverse the removal procedure.
