Motor Electronics Cooler

Motor Electronics Cooler









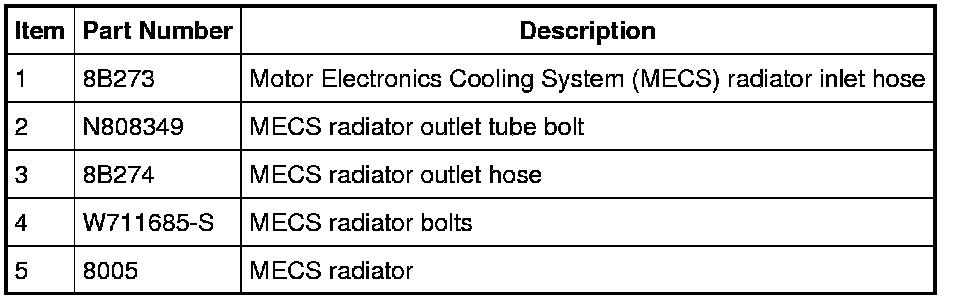

1. Drain the Motor Electronics Cooling System (MECS). For additional information, refer to Motor Electronics Cooling System Draining and Filling Motor Electronics Cooling System Draining and Filling.

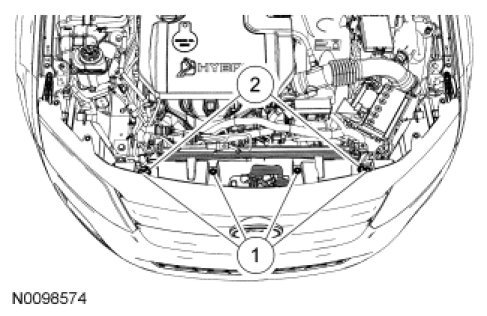

2. Remove the 4 bolts and the 2 retainers and position the front grille aside far enough to gain access to the MECS radiator. For additional information, refer to Bumpers Front Bumper.

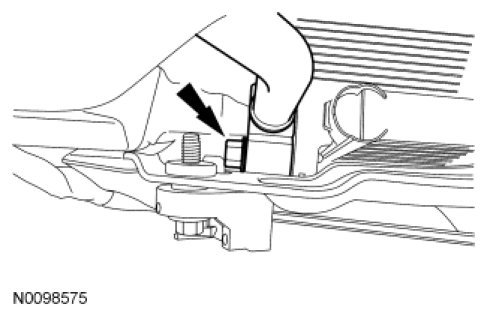

3. Remove the bolt and remove the upper MECS radiator tube from the MECS cooler.
- To install, tighten to 15 Nm (133 lb-in).





4. Remove the radiator splash shield.

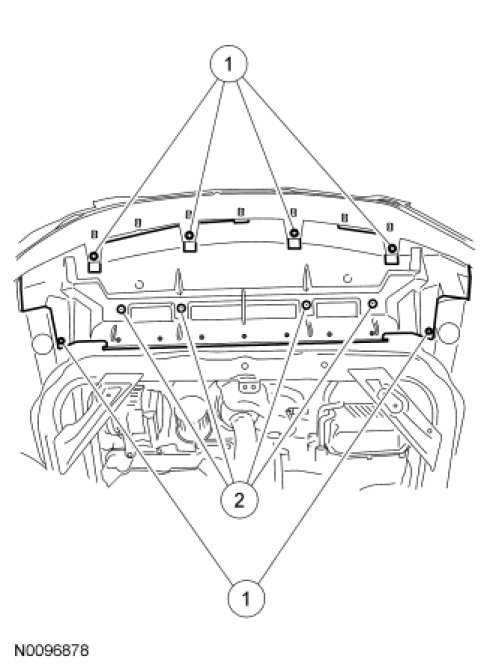

1. Remove the 6 screws.

2. Remove the 4 retainers.

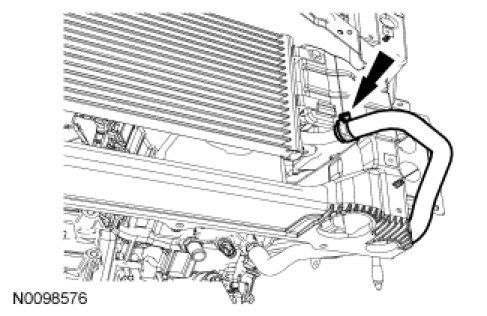

5. Compress the constant tension clamp and disconnect the MECS radiator hose from the MECS radiator.

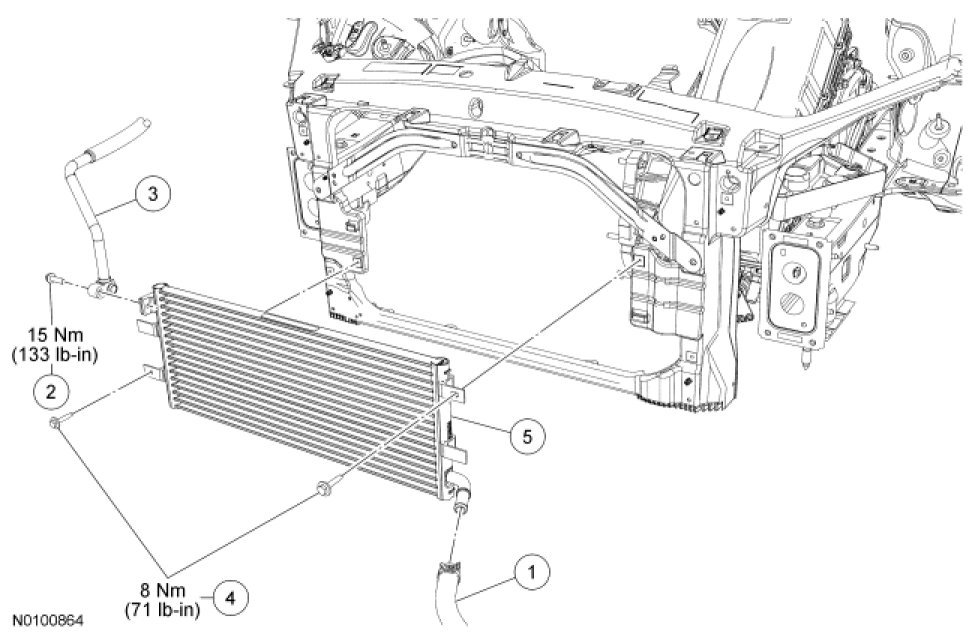

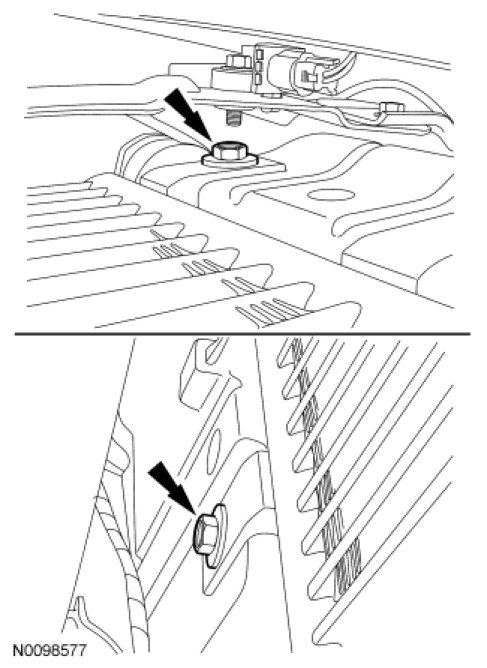

6. Remove the MECS radiator bolts and remove the radiator.
- To install, tighten to 8 Nm (71 lb-in).





7. To install, reverse the removal procedure.
