Selector Lever Bezel

Selector Lever Bezel

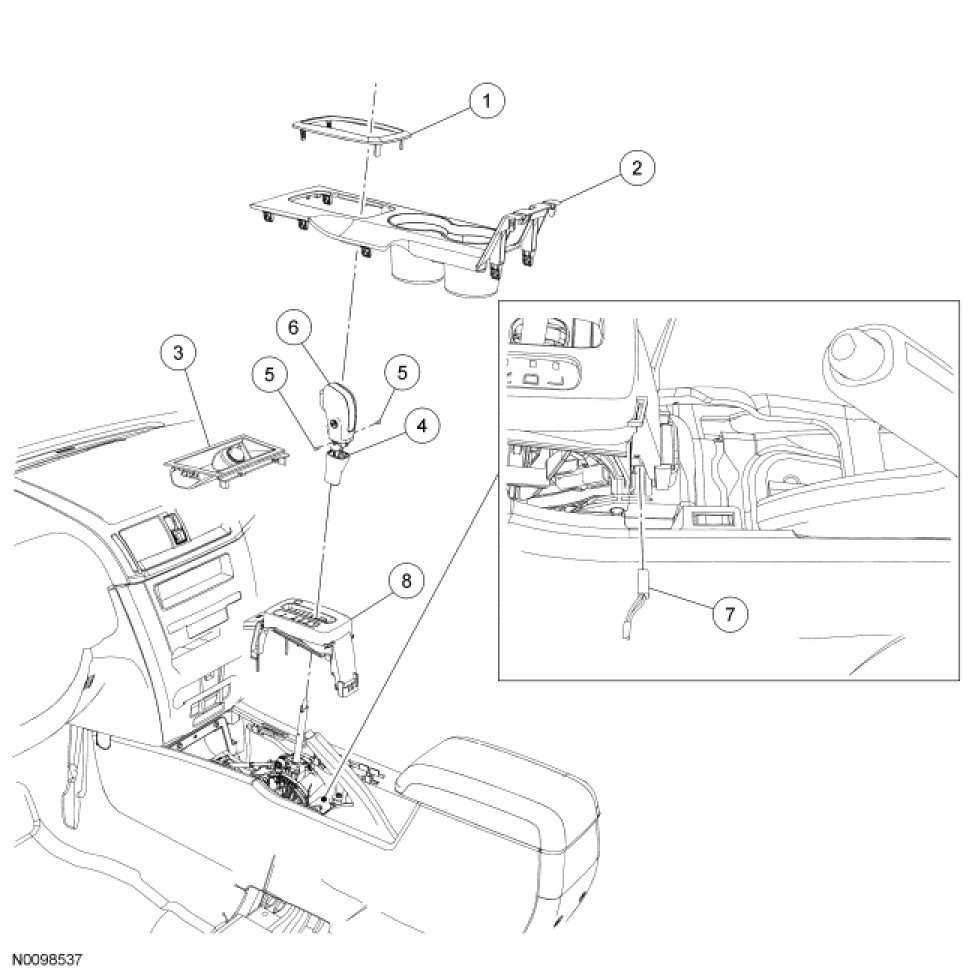

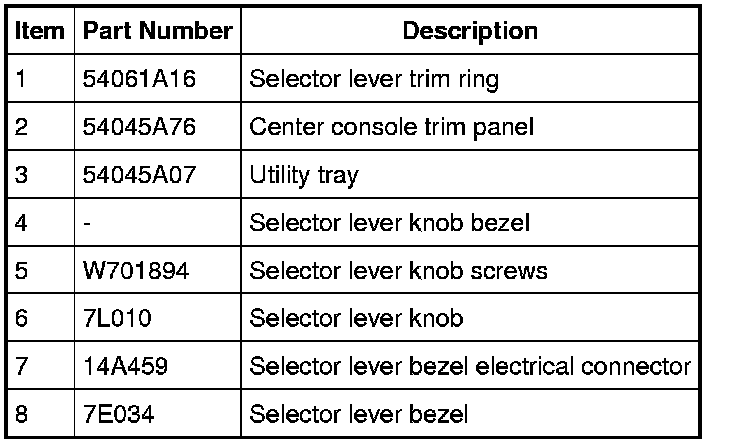

Removal

1. Remove the selector lever trim ring.





2. Remove the center console trim panel.

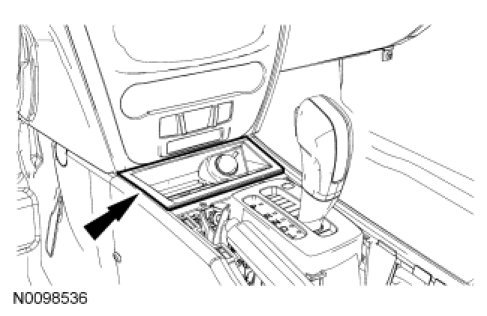

3. Remove the utility tray from the center console.





4. Disconnect the electrical connector and remove the utility tray.

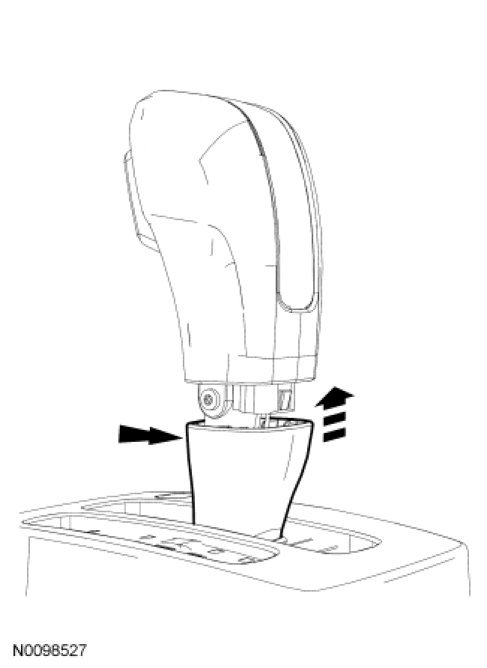

5. Slide the selector lever knob bezel downward to gain access to the 2 selector lever knob screws.

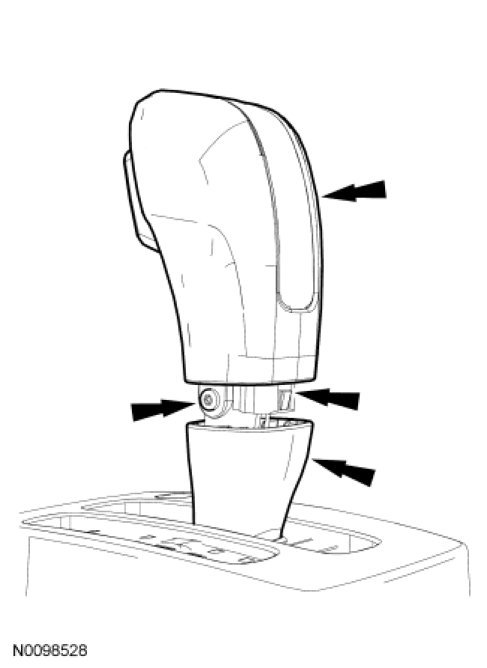

6. Remove the 2 screws from the selector lever knob. Remove the selector lever knob and the selector lever knob bezel.





7. Disconnect the selector lever bezel electrical connector.





8. NOTE: Selector lever removed for clarity.

Release the 3 tabs and remove the selector lever knob bezel.





Installation

1. NOTICE: Be sure that the override lever is inserted in the override lever guide or the shift interlock override button will not work correctly.

NOTE: Selector lever removed for clarity.

Install the selector lever bezel on the selector lever.

- Position the override lever in the override lever guide.

- Make sure that the 3 locking tabs are locked in place.





2. Connect selector lever bezel electrical connector.





3. Install the selector lever knob on the selector lever and install the screws.

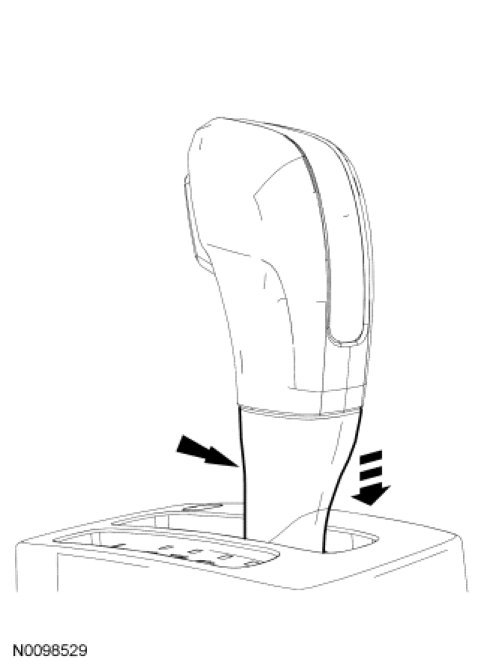

4. Slide the selector lever knob bezel up and install it on the selector lever knob.





5. Position the utility tray in place and connect the electrical connector.





6. Install the utility tray on the center console.





7. Install the center console trim panel.





8. Install the selector lever trim ring.
