Home >> Mercury >> 2011 >> Milan FWD L4-2.5L Hybrid >> Repair and Diagnosis >> Restraints and Safety Systems >> Sensors and Switches - Restraints and Safety Systems >> Seat Occupant Sensor >> Diagrams >> C3325 Occupant Classification Sensor (OCS) 2

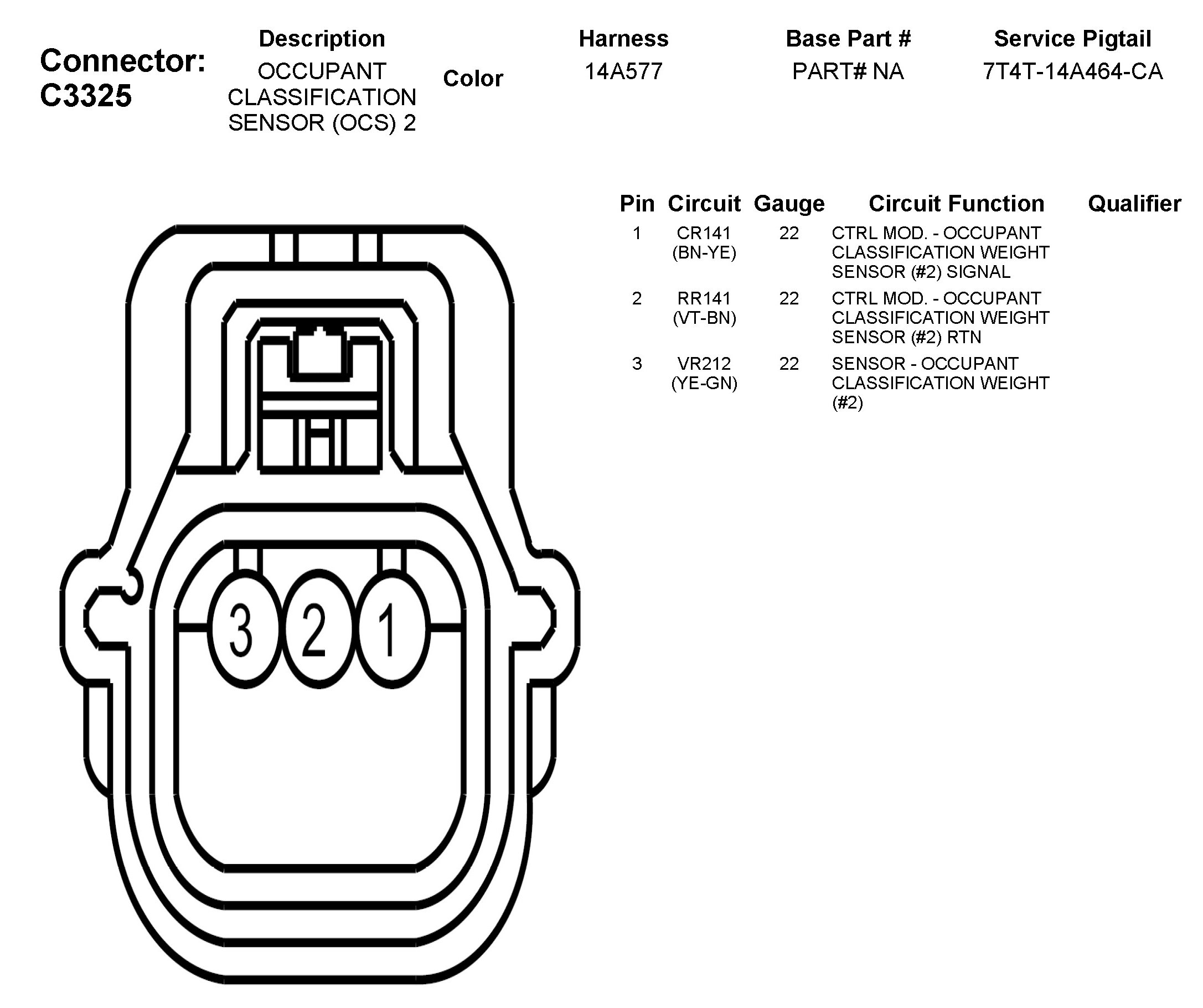

C3325 Occupant Classification Sensor (OCS) 2
