Test TZ: Vehicle Mode Signal
Test TZ: Vehicle Mode Signal

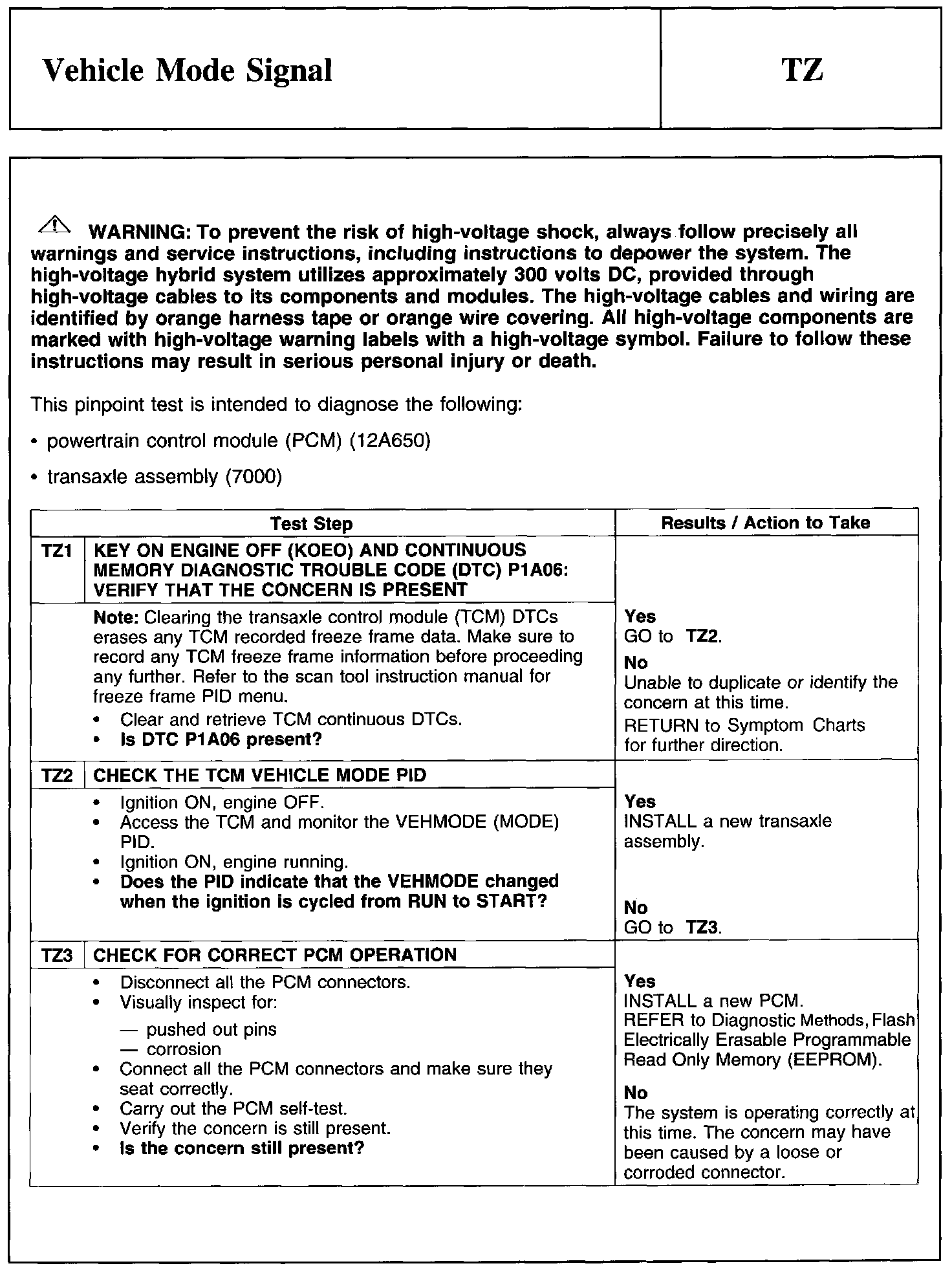

PINPOINT TEST TZ: VEHICLE MODE SIGNAL
TZ1-TZ3:
