Test TY: Transmission Range Signal
Test TY: Transmission Range Signal
PINPOINT TEST TY: TRANSMISSION RANGE SIGNAL

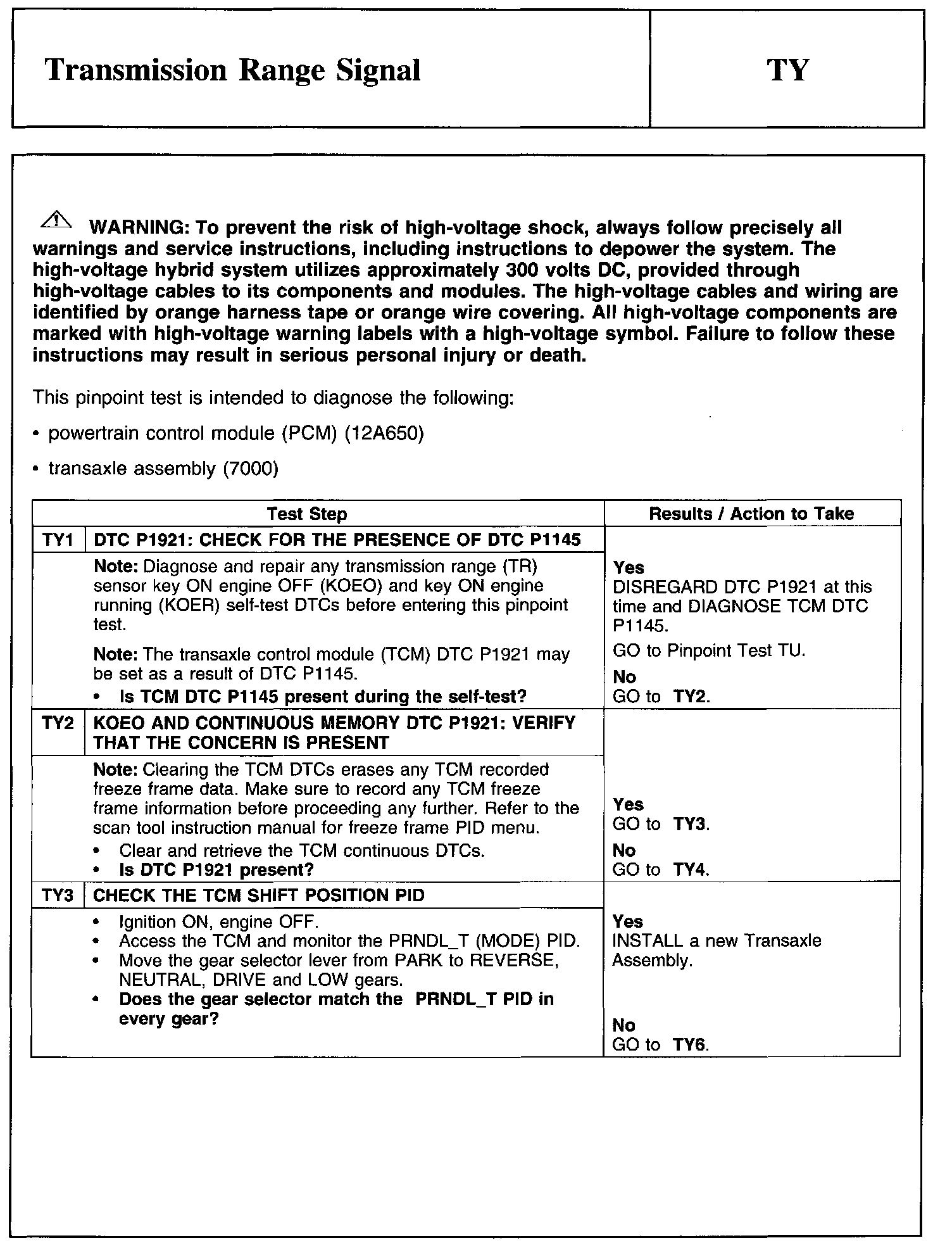

TY1-TY3:

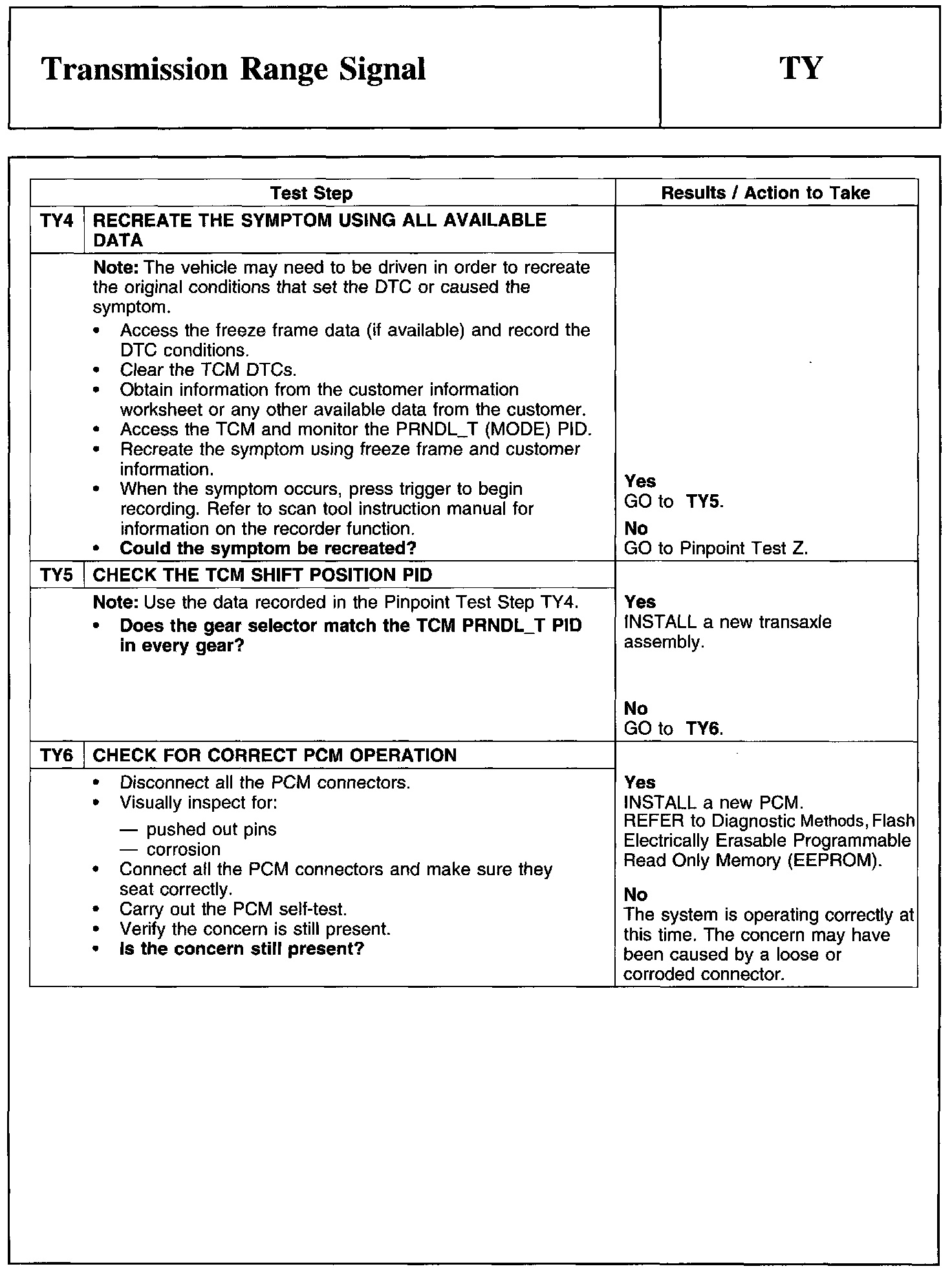

TY4-TY6:
