Test TV: Engine Speed Desired Signal Out Of Range
Test TV: Engine Speed Desired Signal Out Of Range
PINPOINT TEST TV: ENGINE SPEED DESIRED SIGNAL OUT OF RANGE

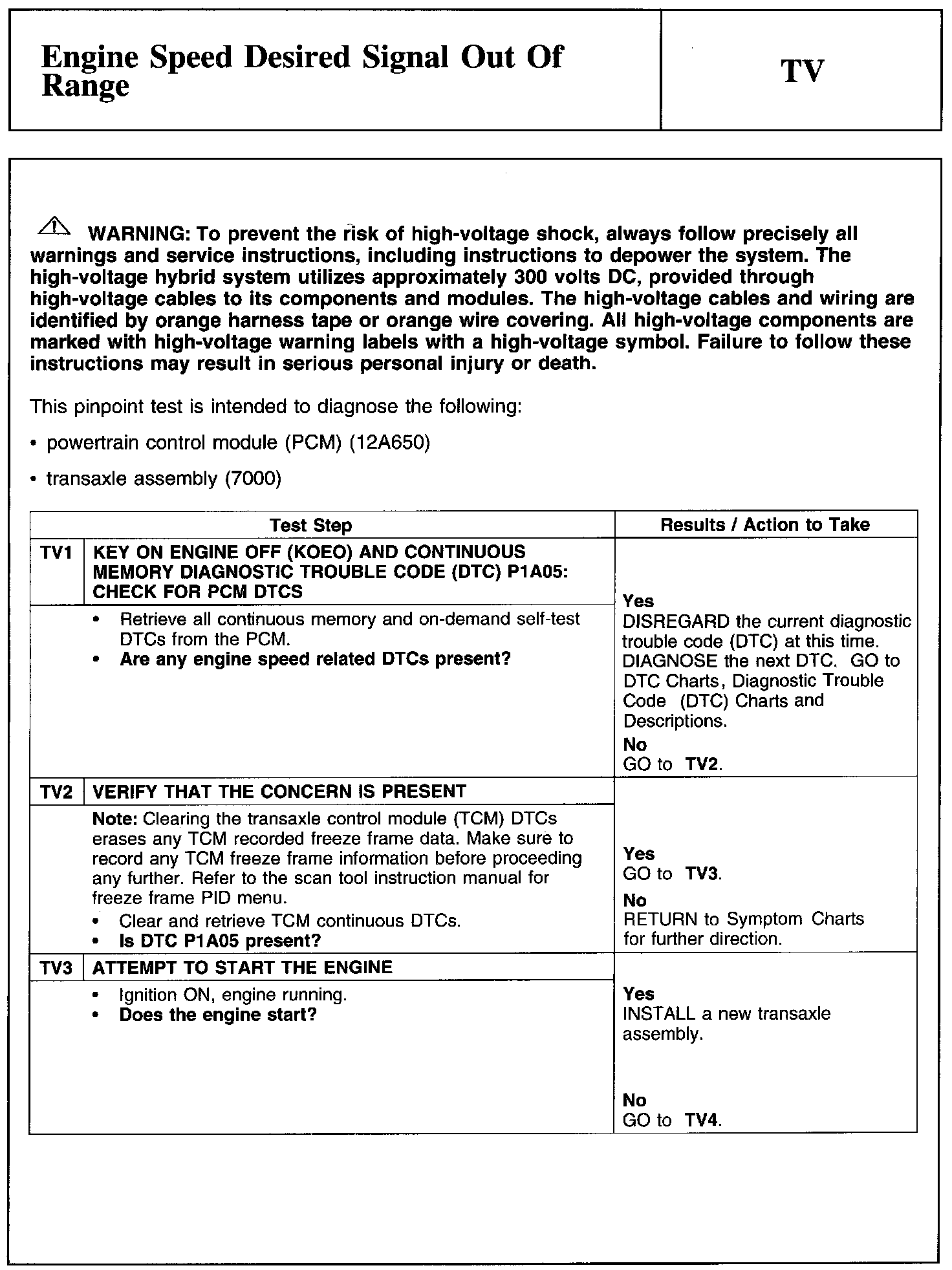

TV1-TV3:

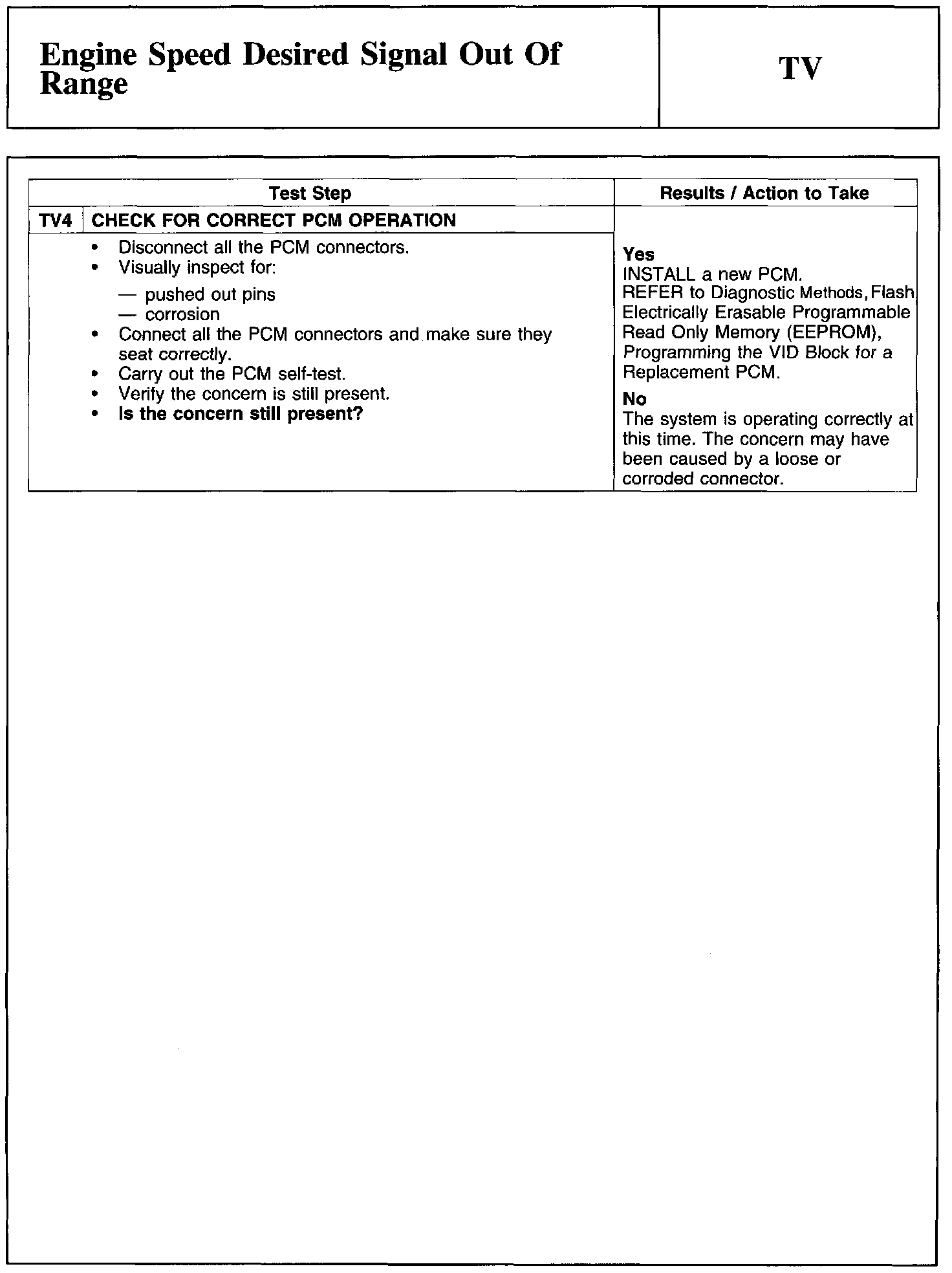

TV4:
