Test TR: Immediate Shutdown (ISDN) 1 and 2 Signals

PINPOINT TEST TR: IMMEDIATE SHUTDOWN (ISDN) 1 AND 2 SIGNALS

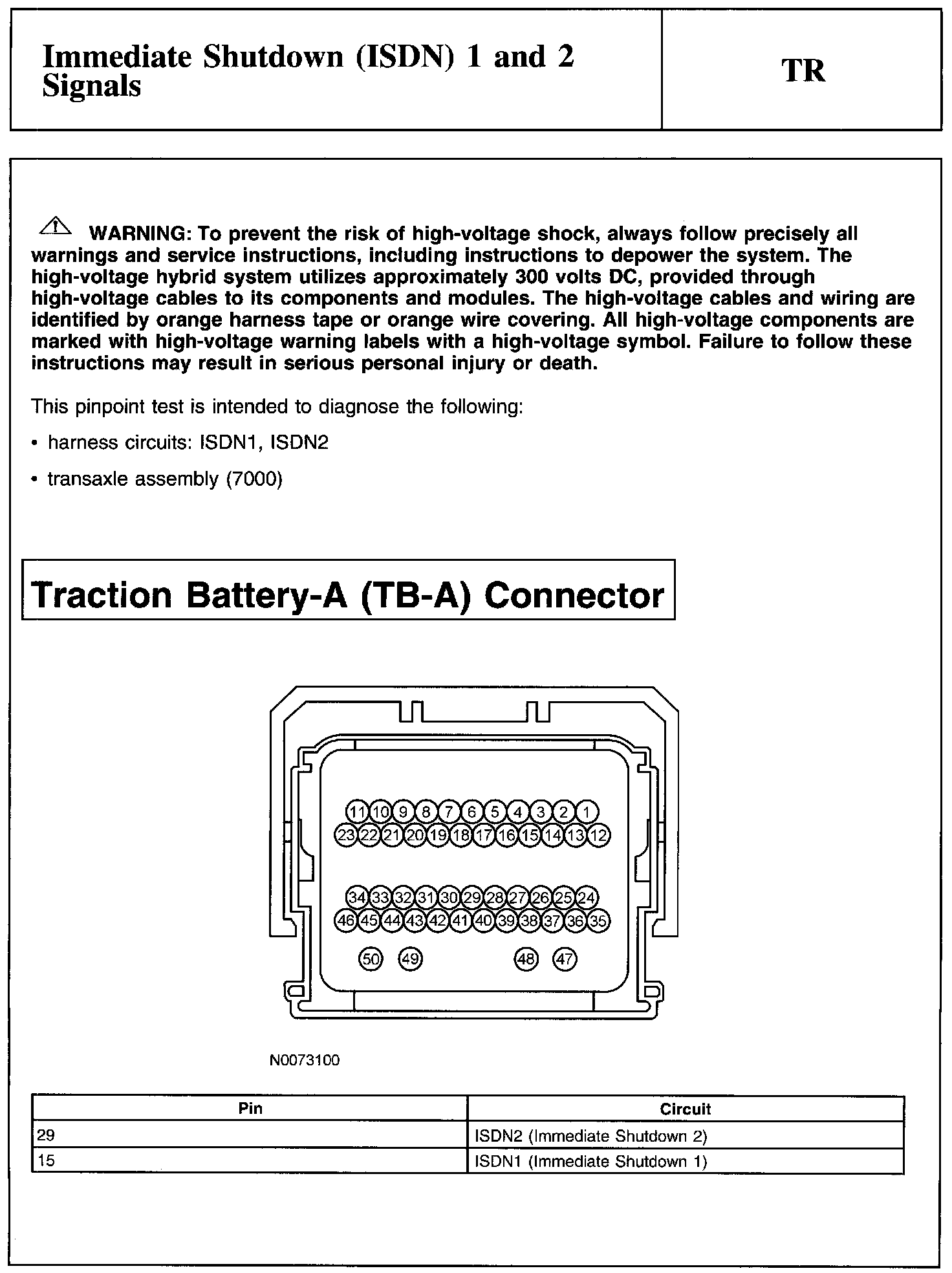

Warning And Traction Battery-A (TB-A) Connector:






Transaxle Assembly-A Connector And Transaxle Assembly-B Connector:






TR1-TR4:

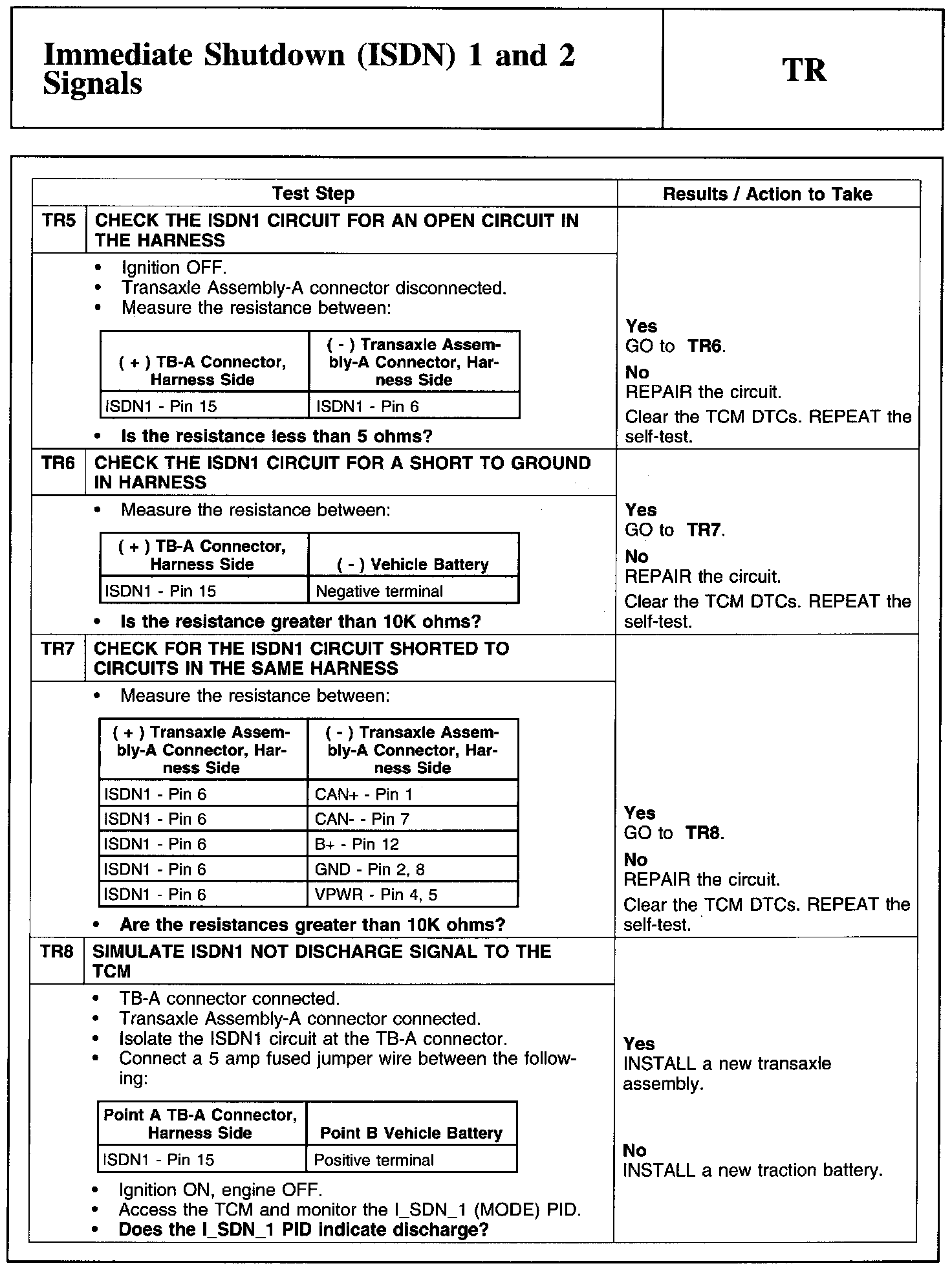

TR5-TR8:

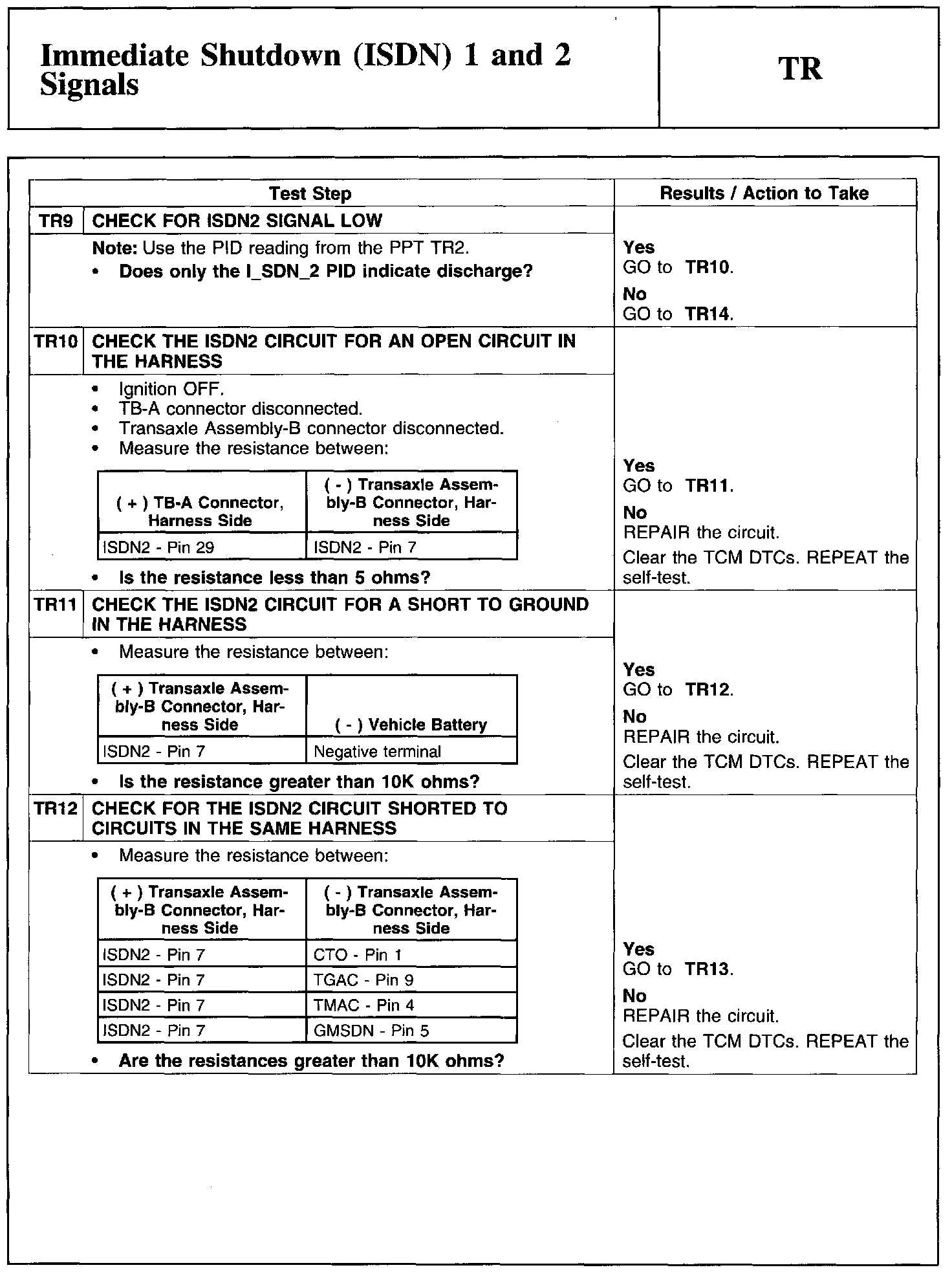

TR9-TR12:

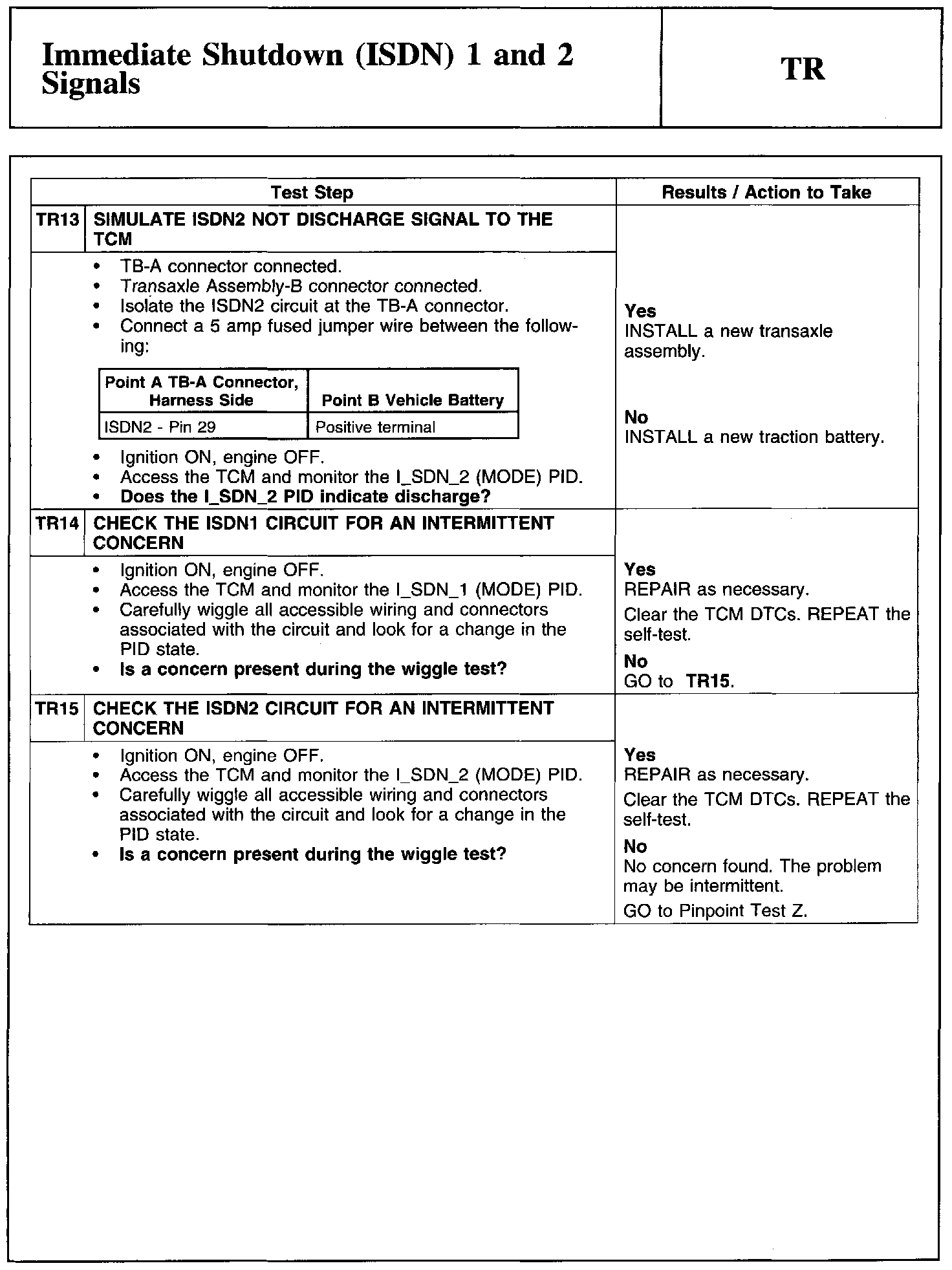

TR13-TR15:
