Test TI: DTC P1A08: Generator Mode Signal
Test TI: DTC P1A08: Generator Mode Signal
PINPOINT TEST TI: DTC P1A08: GENERATOR MODE SIGNAL

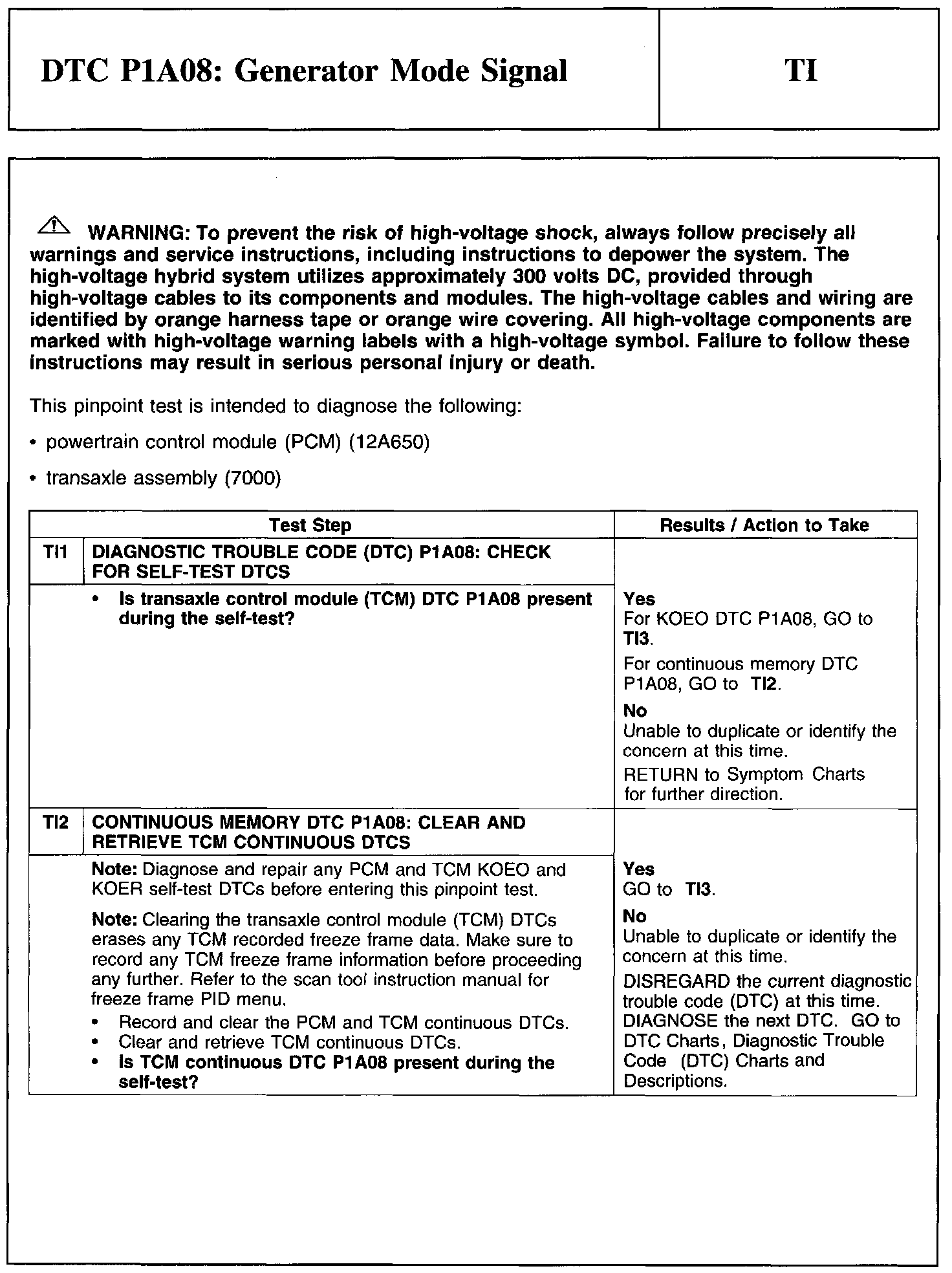

TI1-TI2:

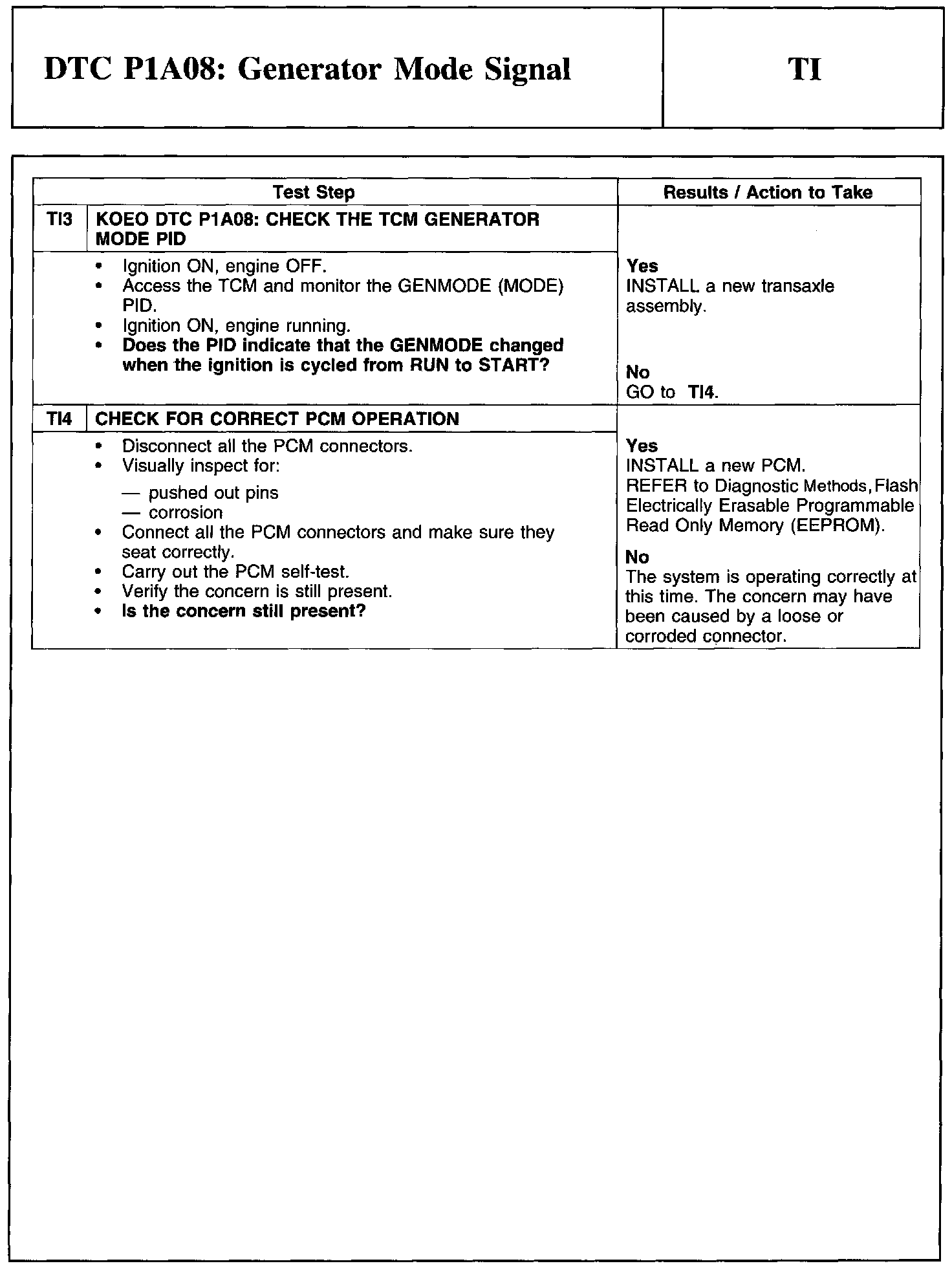

TI3-TI4:
