Test TD: Torque Of Motor Signal
Test TD: Torque Of Motor Signal
PINPOINT TEST TD: TORQUE OF MOTOR SIGNAL

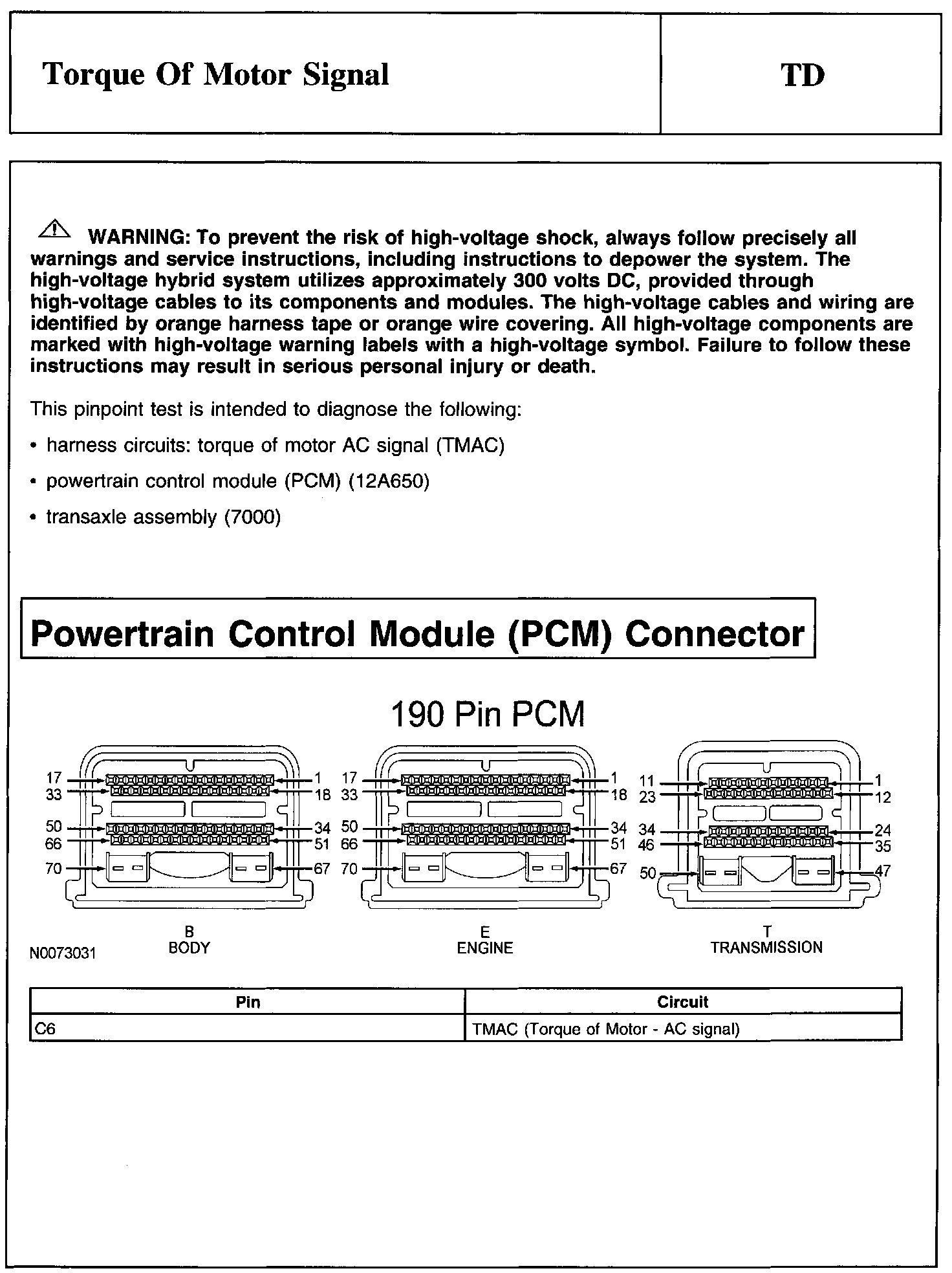

Warning And Powertrain Control Module (PCM) Connector:

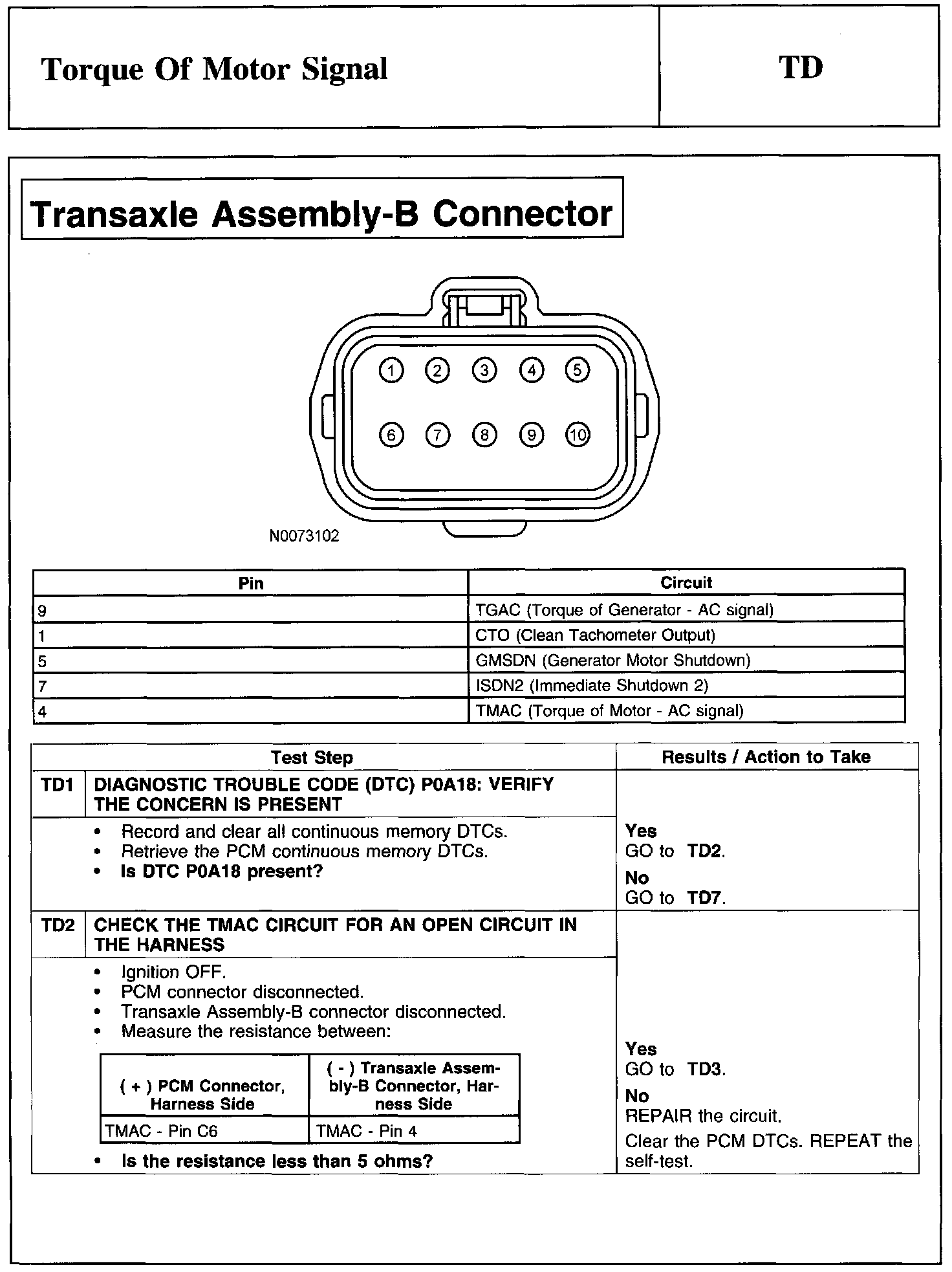

TD1-TD2:

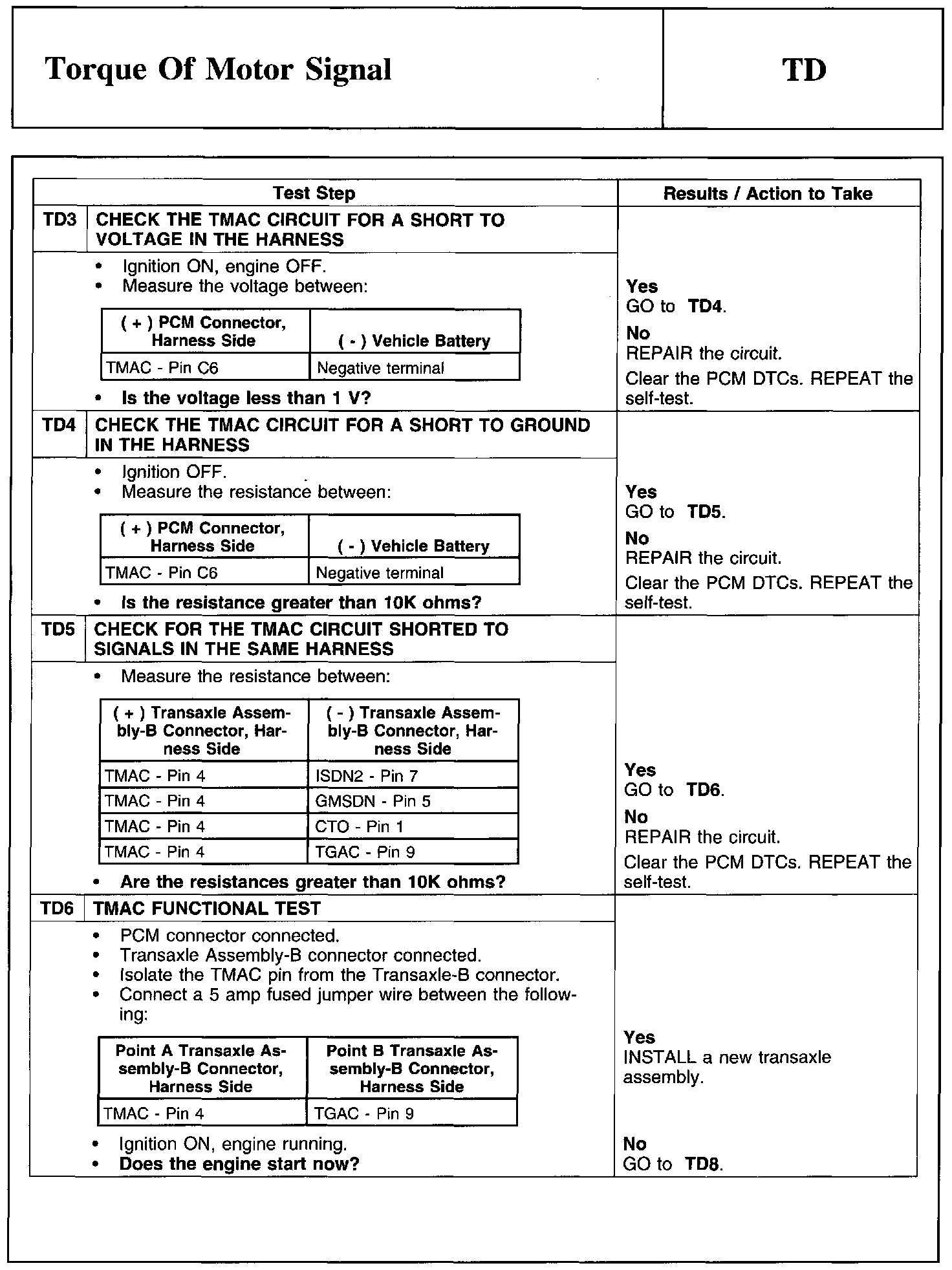

TD3-TD6:

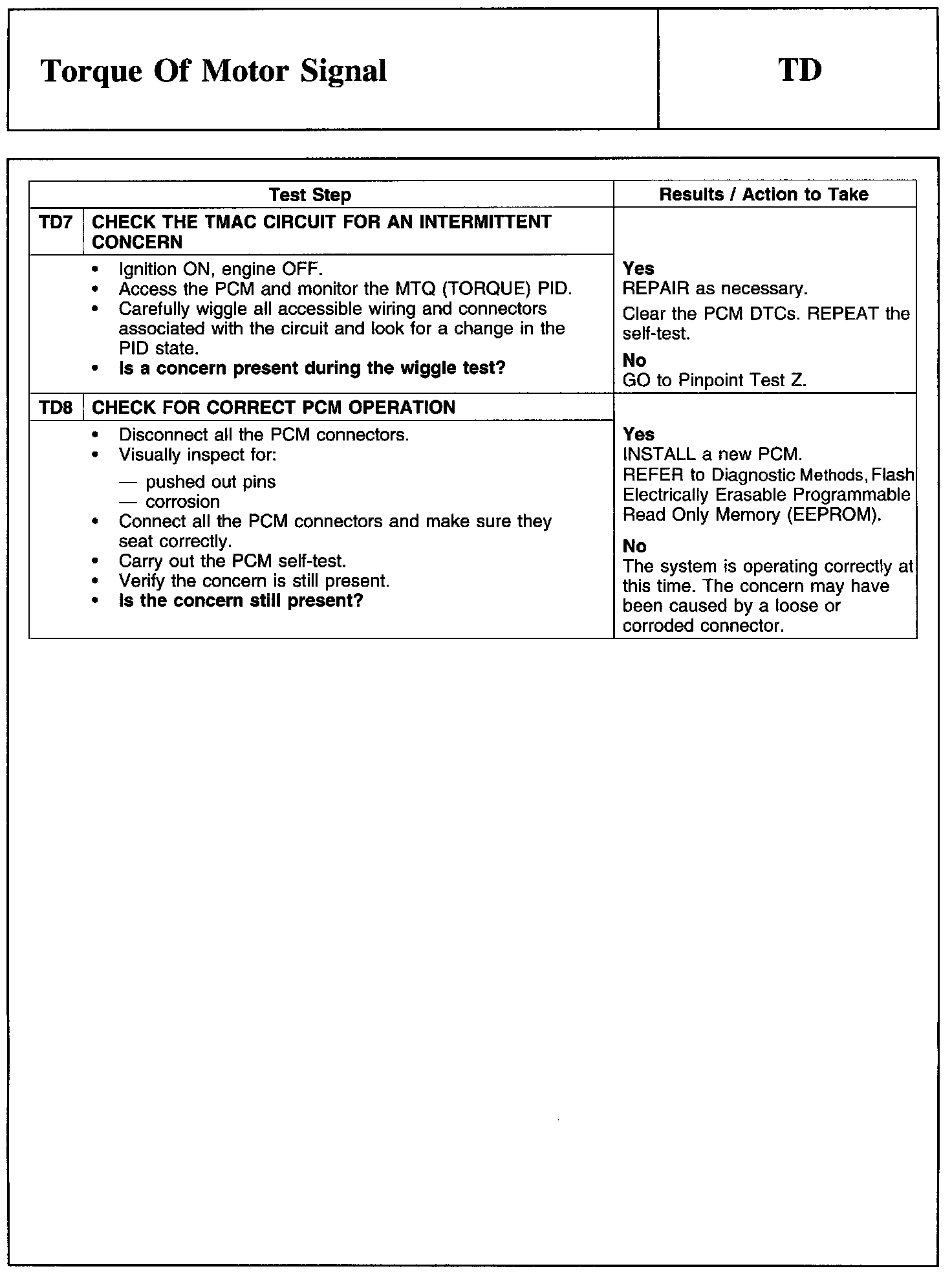

TD7-TD8:
