Test TC: Torque Of Generator Signal
Test TC: Torque Of Generator Signal
PINPOINT TEST TC: TORQUE OF GENERATOR SIGNAL

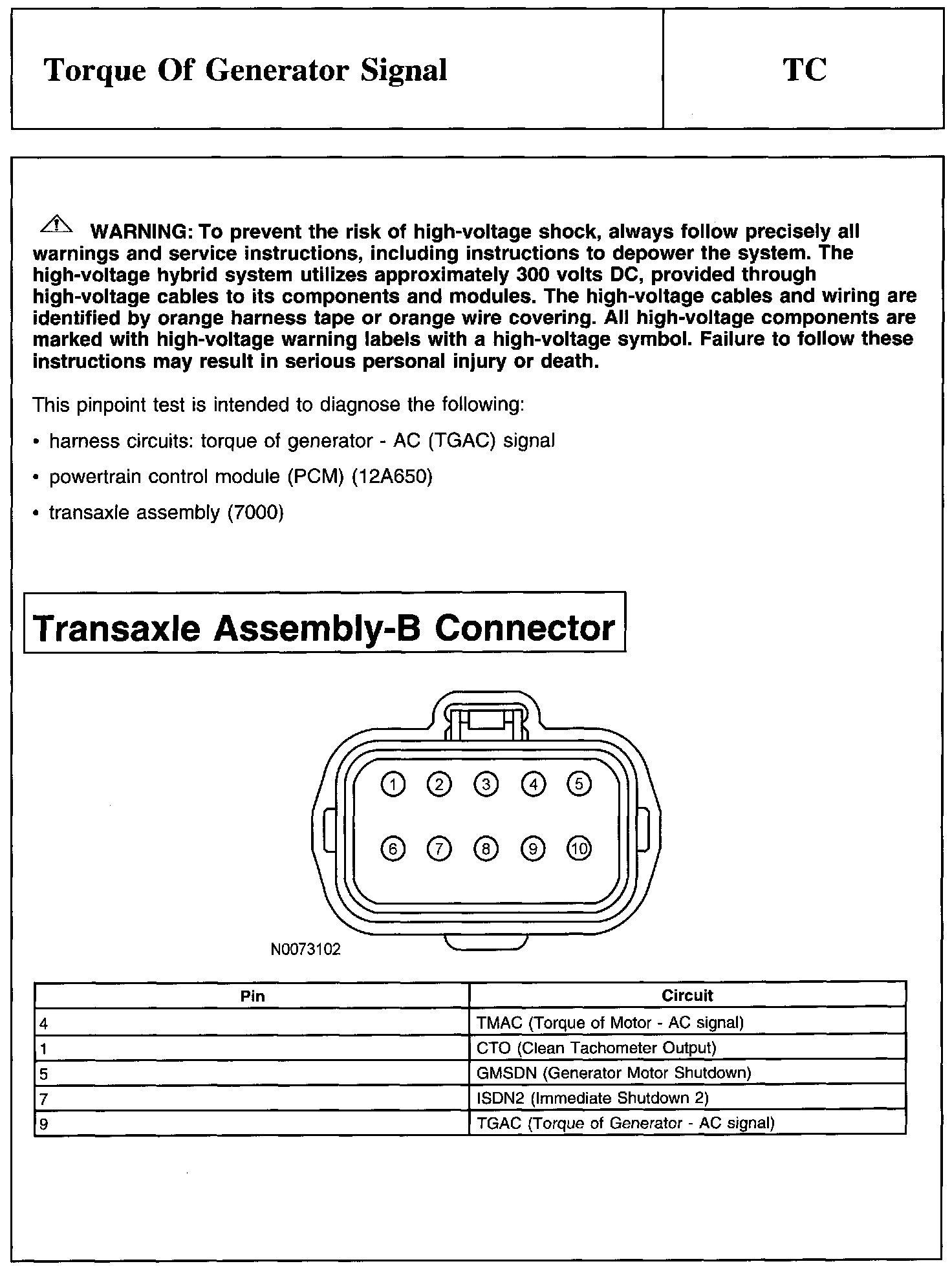

Warning And Transaxle Assembly-B Connector:

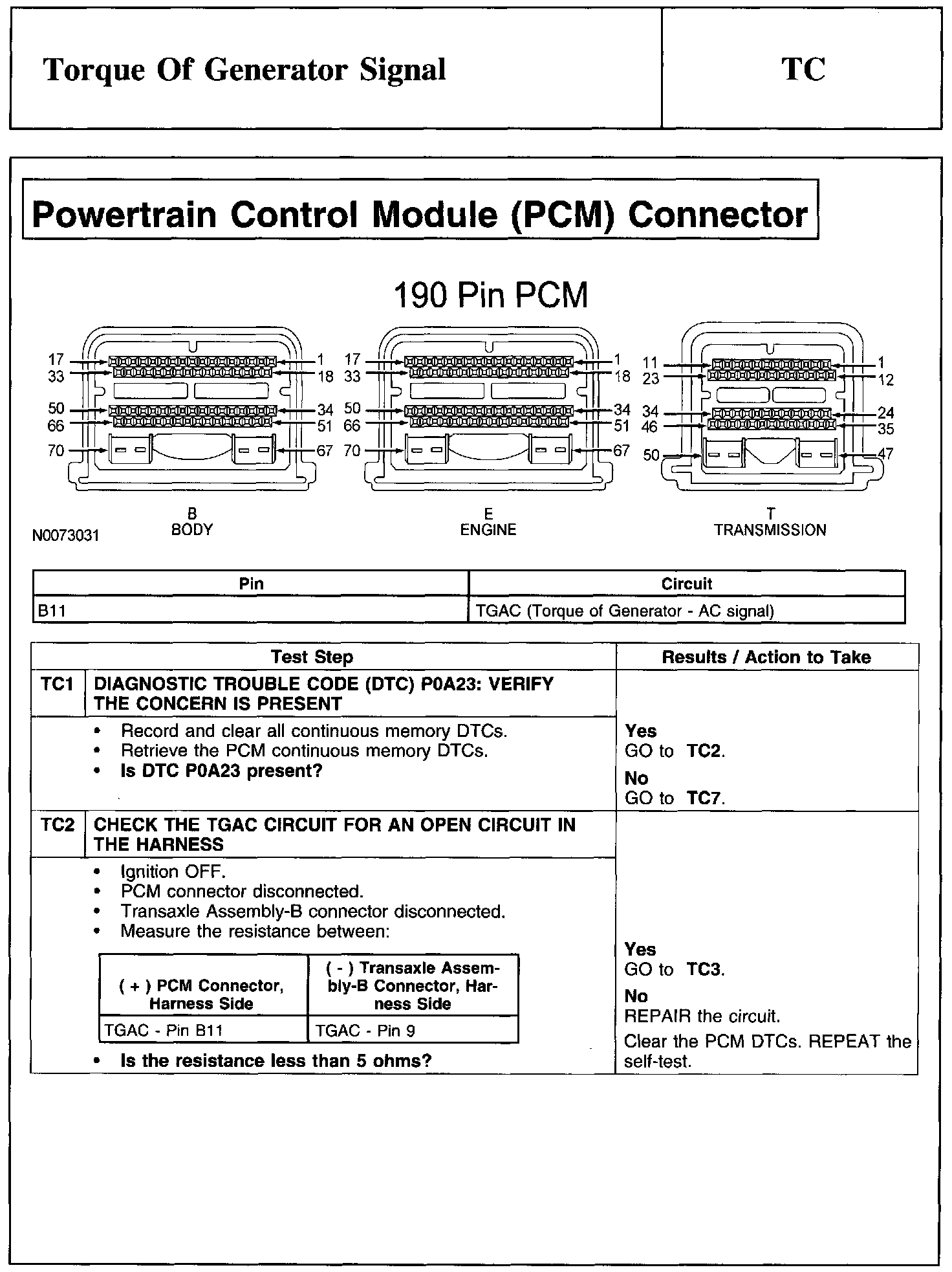

TC1-TC2:

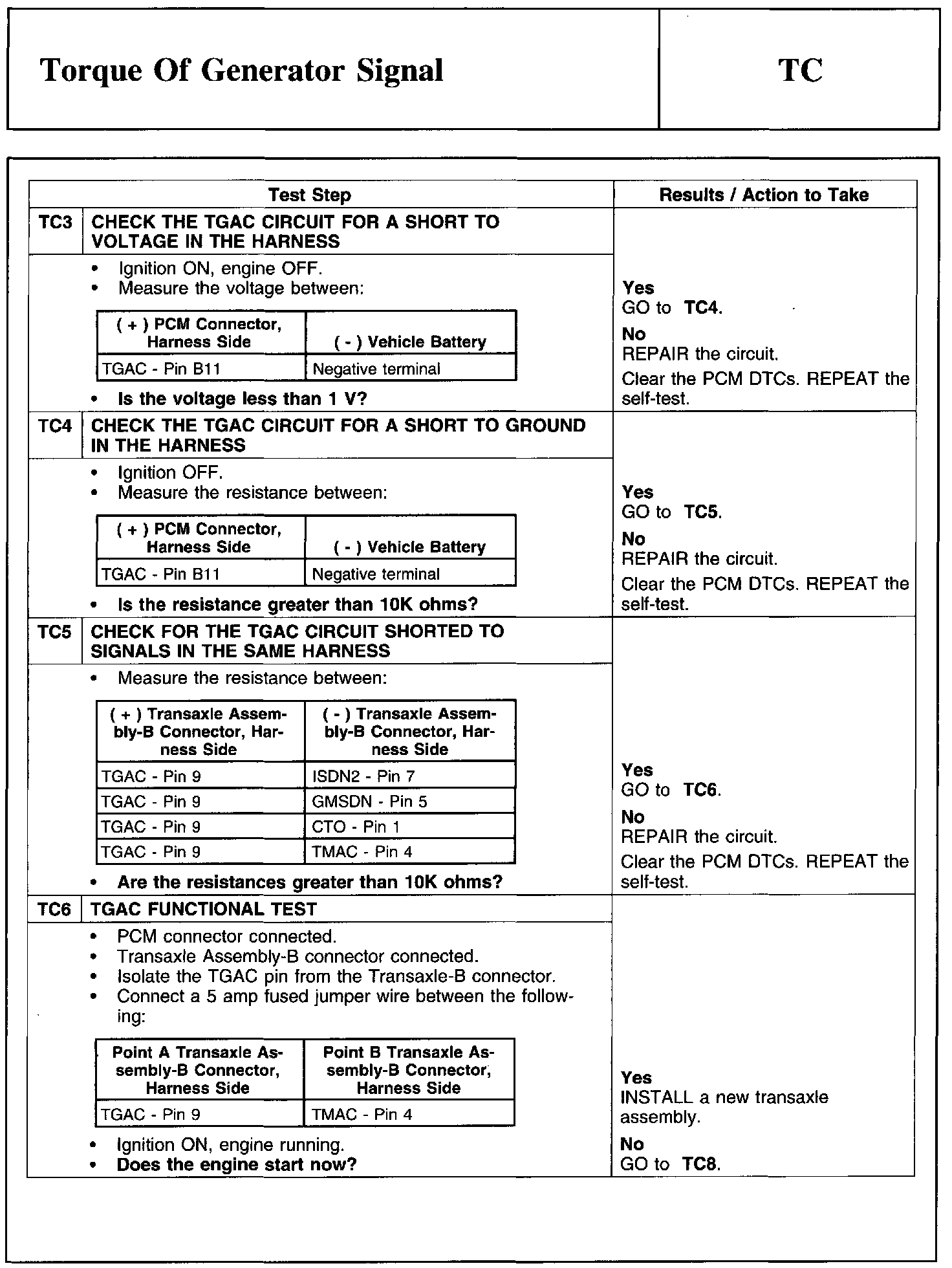

TC3-TC6:

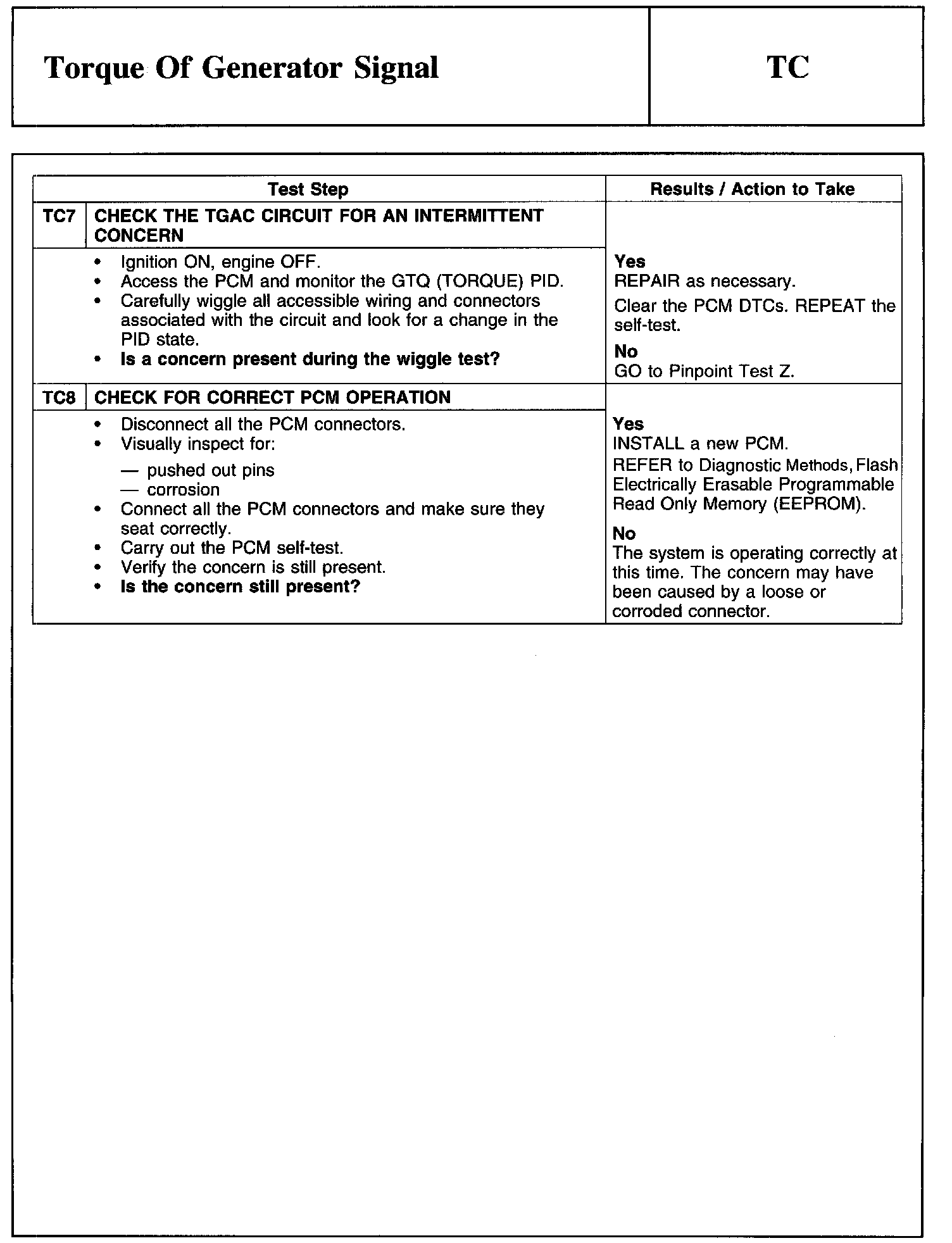

TC7-TC8:
