Test TA: Transmission Range (TR) Sensor
Test TA: Transmission Range (TR) Sensor
PINPOINT TEST TA: TRANSMISSION RANGE (TR) SENSOR

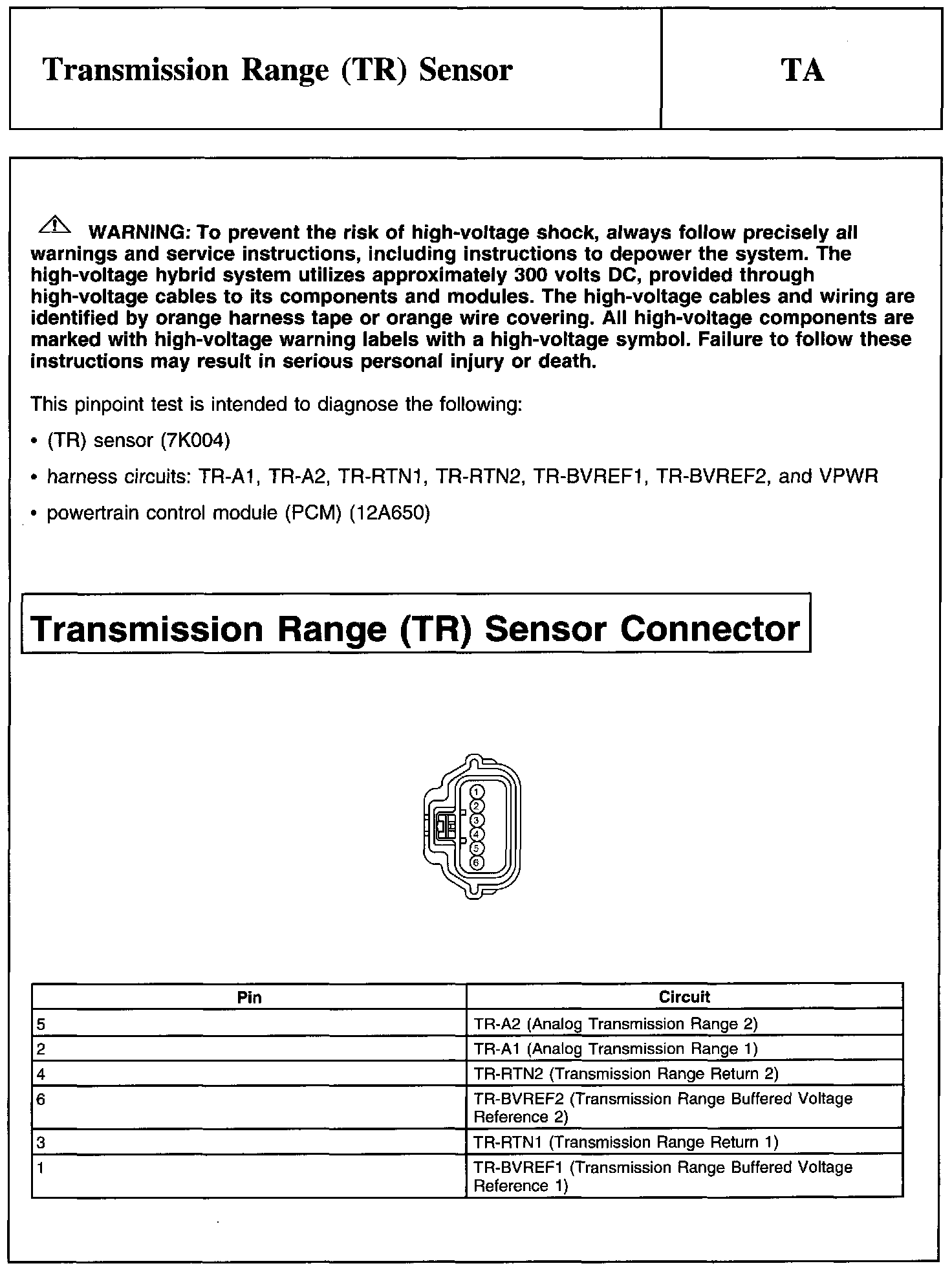

Warning And Transmission Range (TR) Sensor Connector:

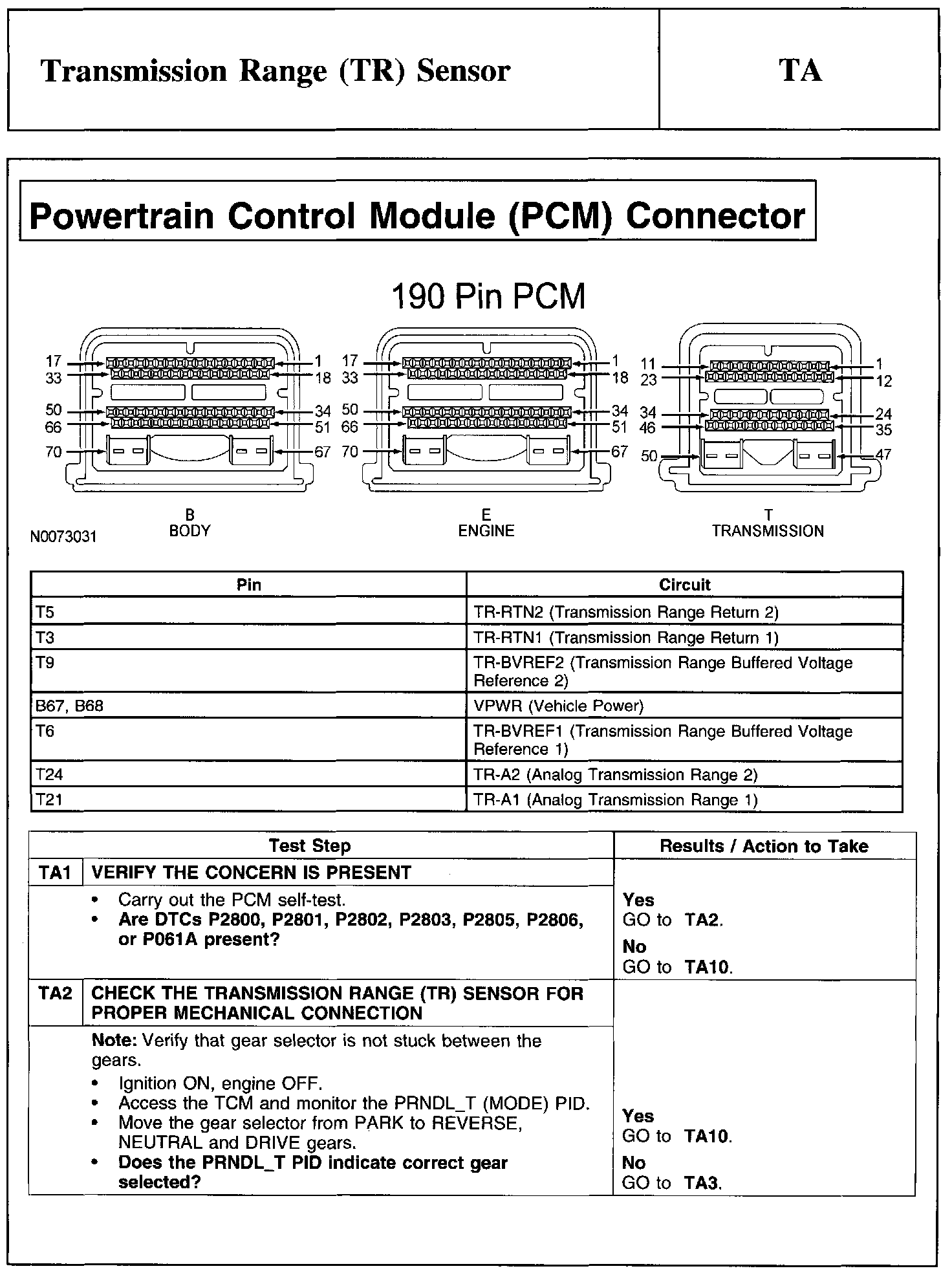

TA1-TA2:

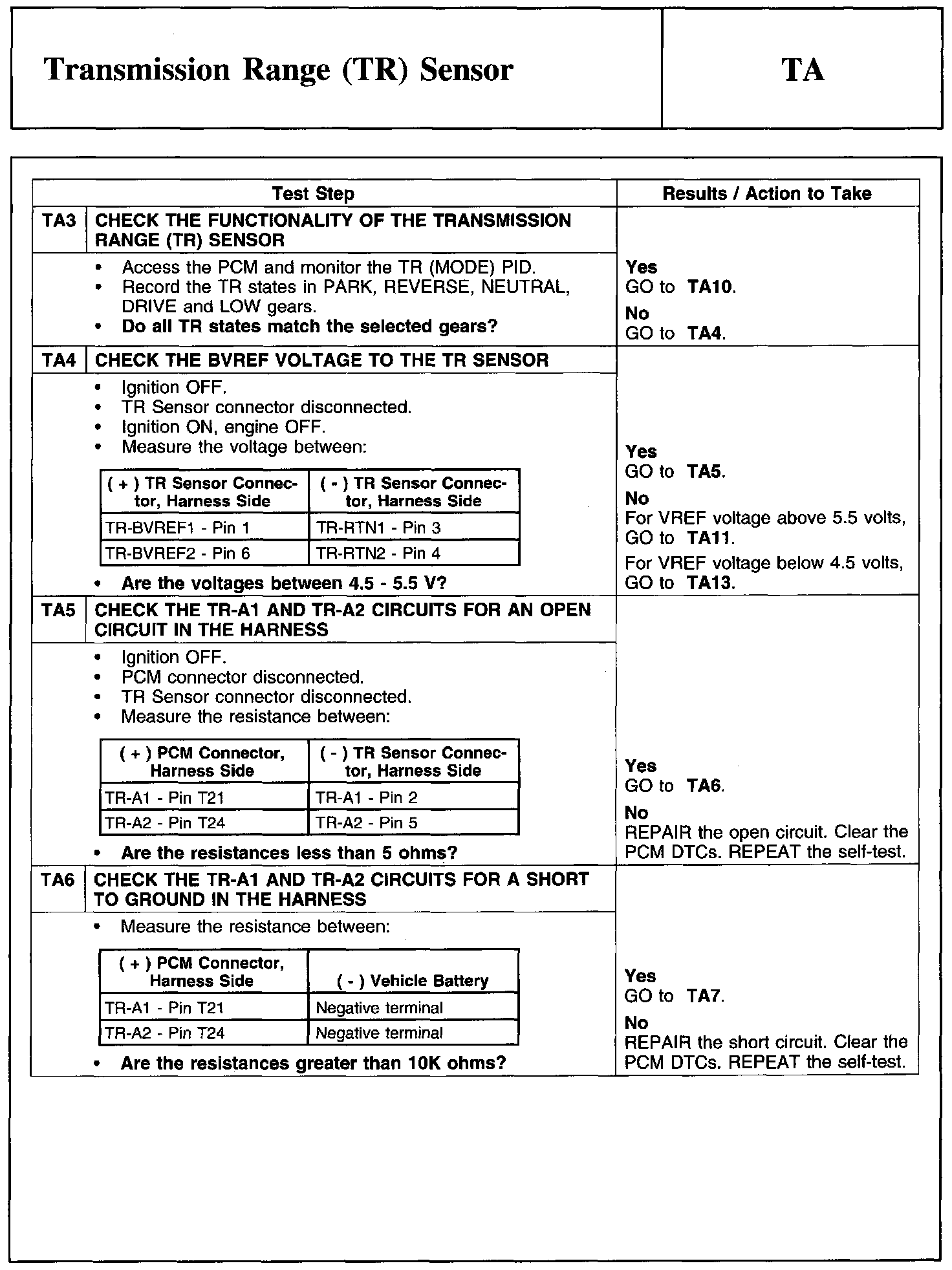

TA3-TA6:

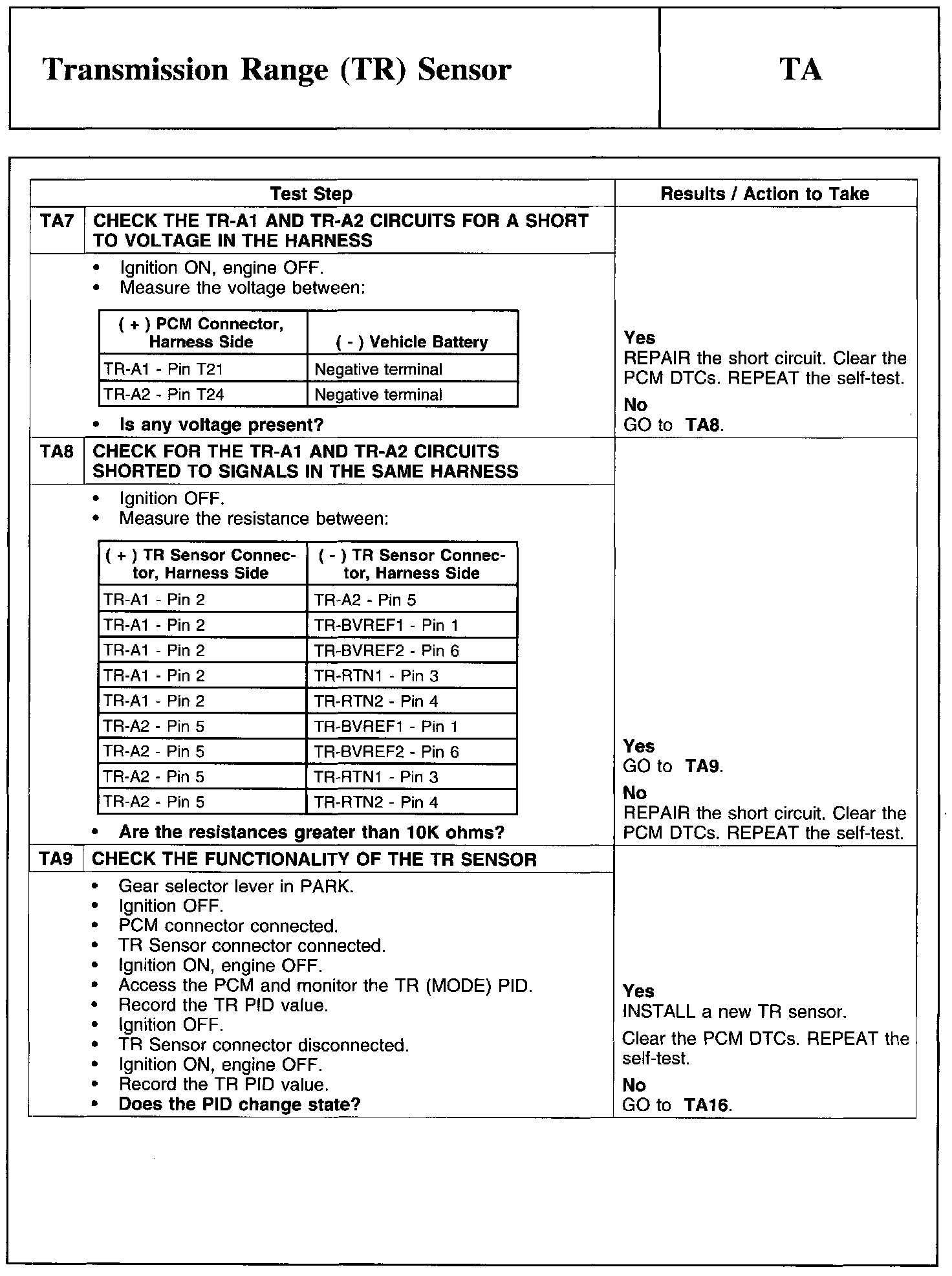

TA7-TA9:

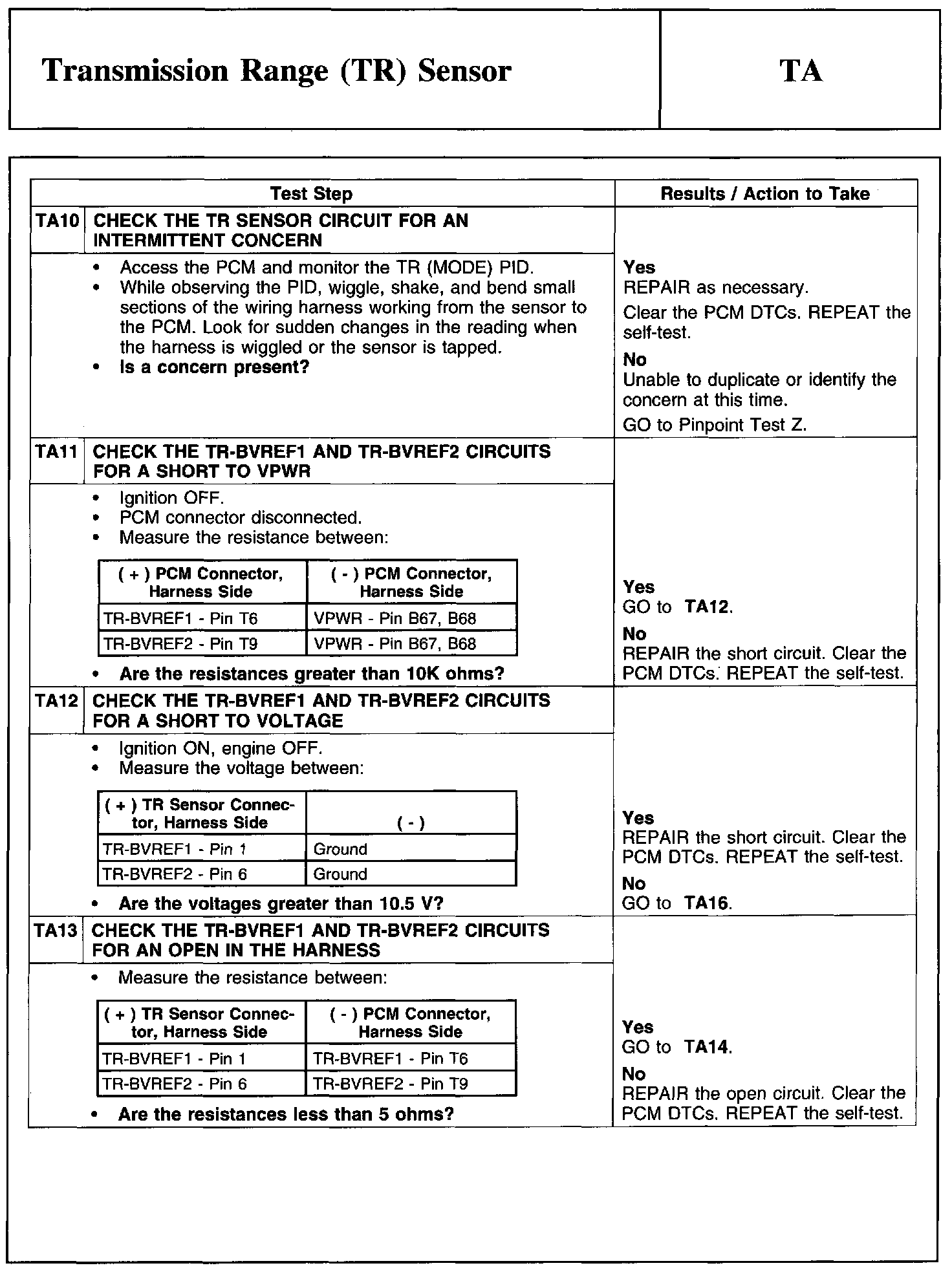

TA10-TA13:

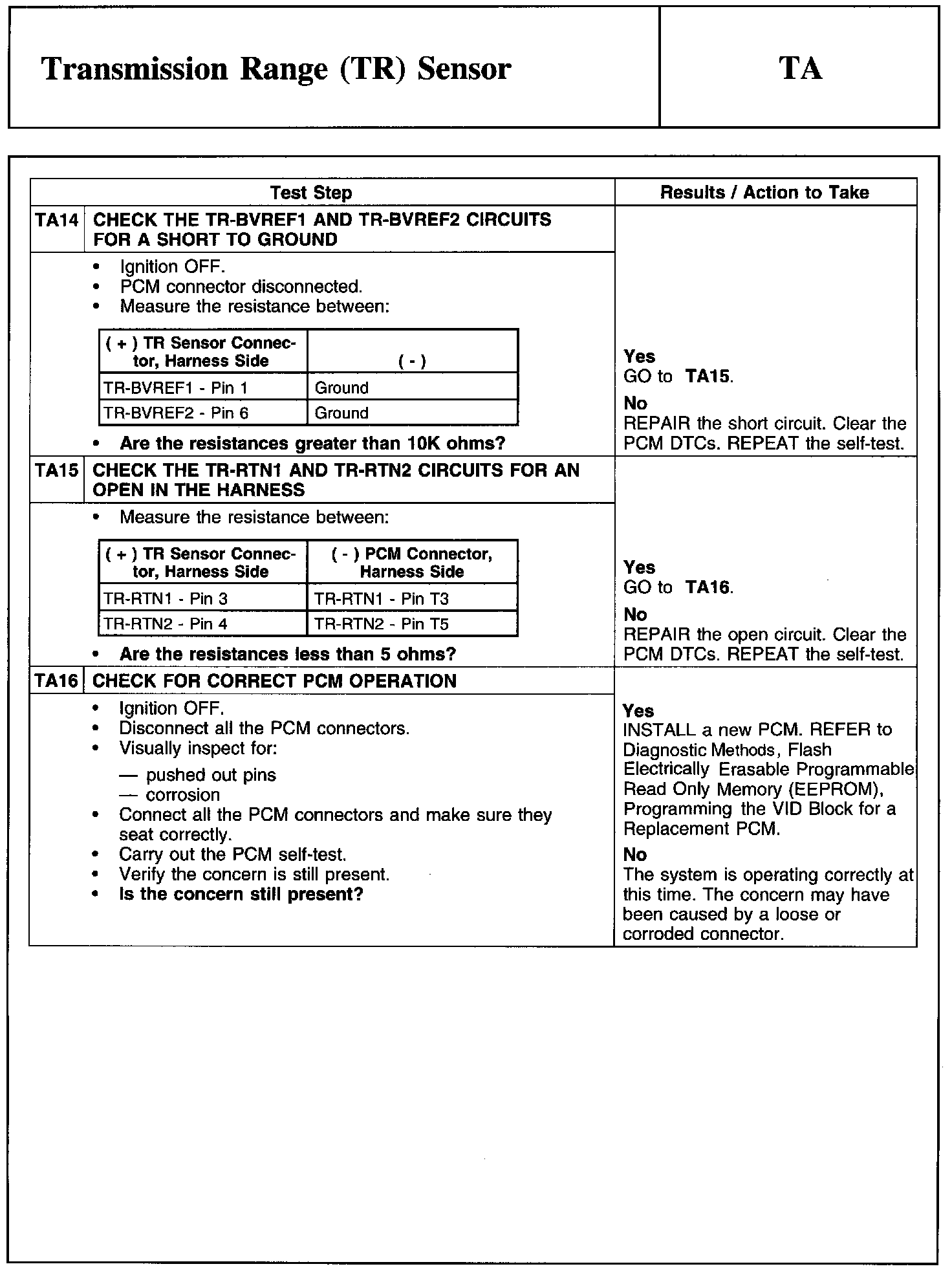

TA14-TA16:
