Test QF: Electronic Throttle Control (ETC) System
Test QF: Electronic Throttle Control (ETC) System
PINPOINT TEST QF: ELECTRONIC THROTTLE CONTROL (ETC) SYSTEM

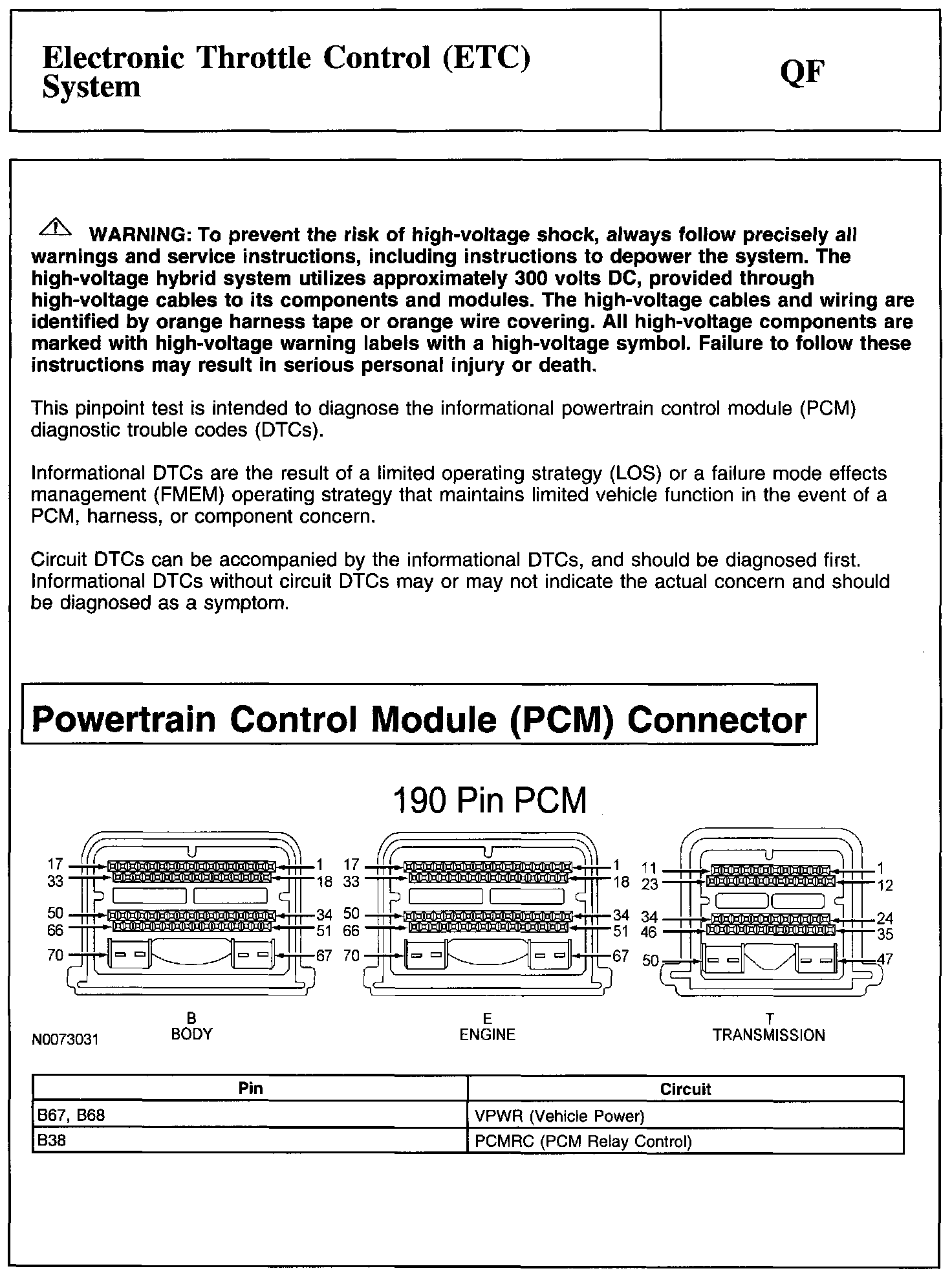

Warning And Powertrain Control Module (PCM) Connector:

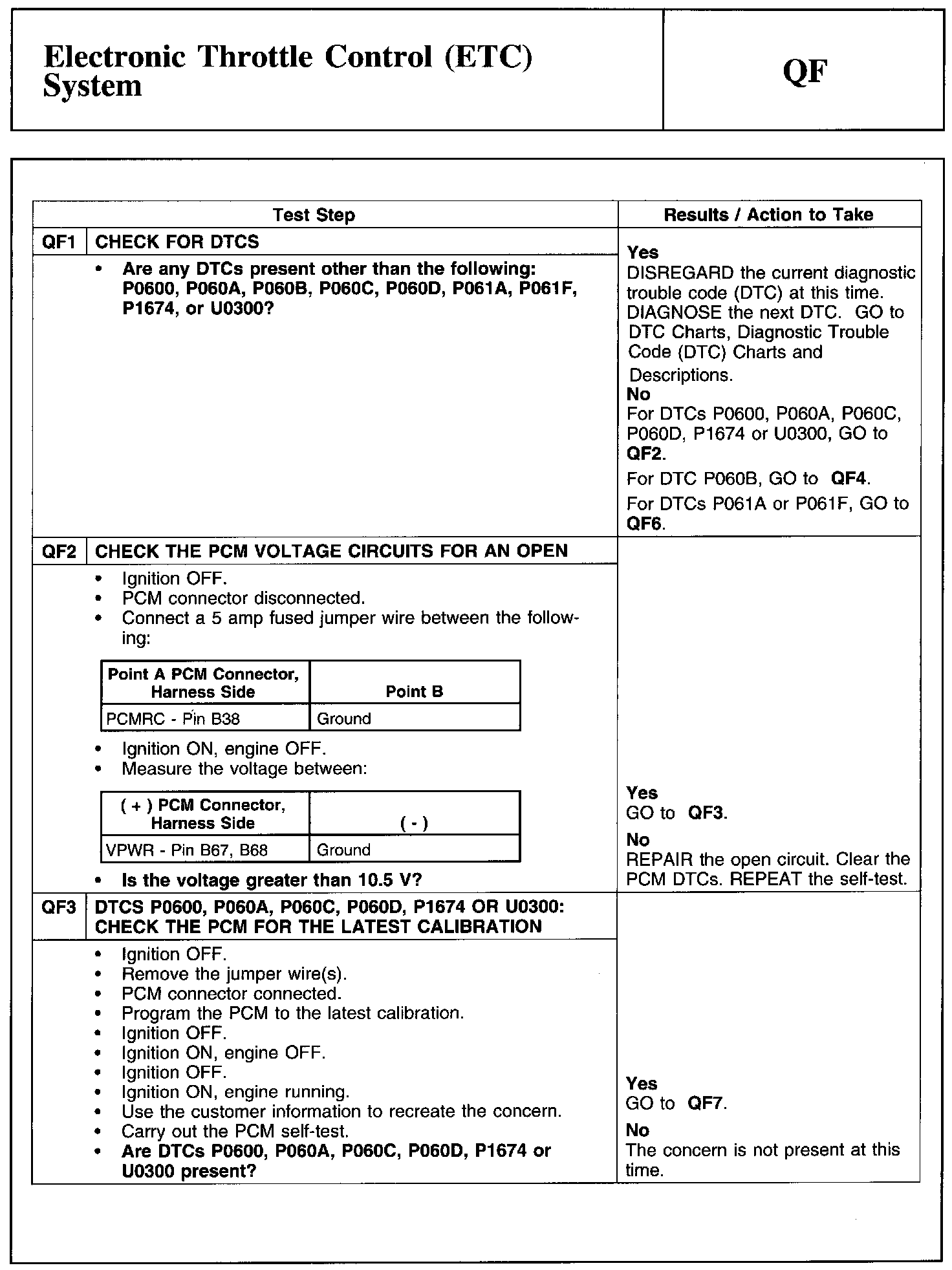

QF1-QF3:

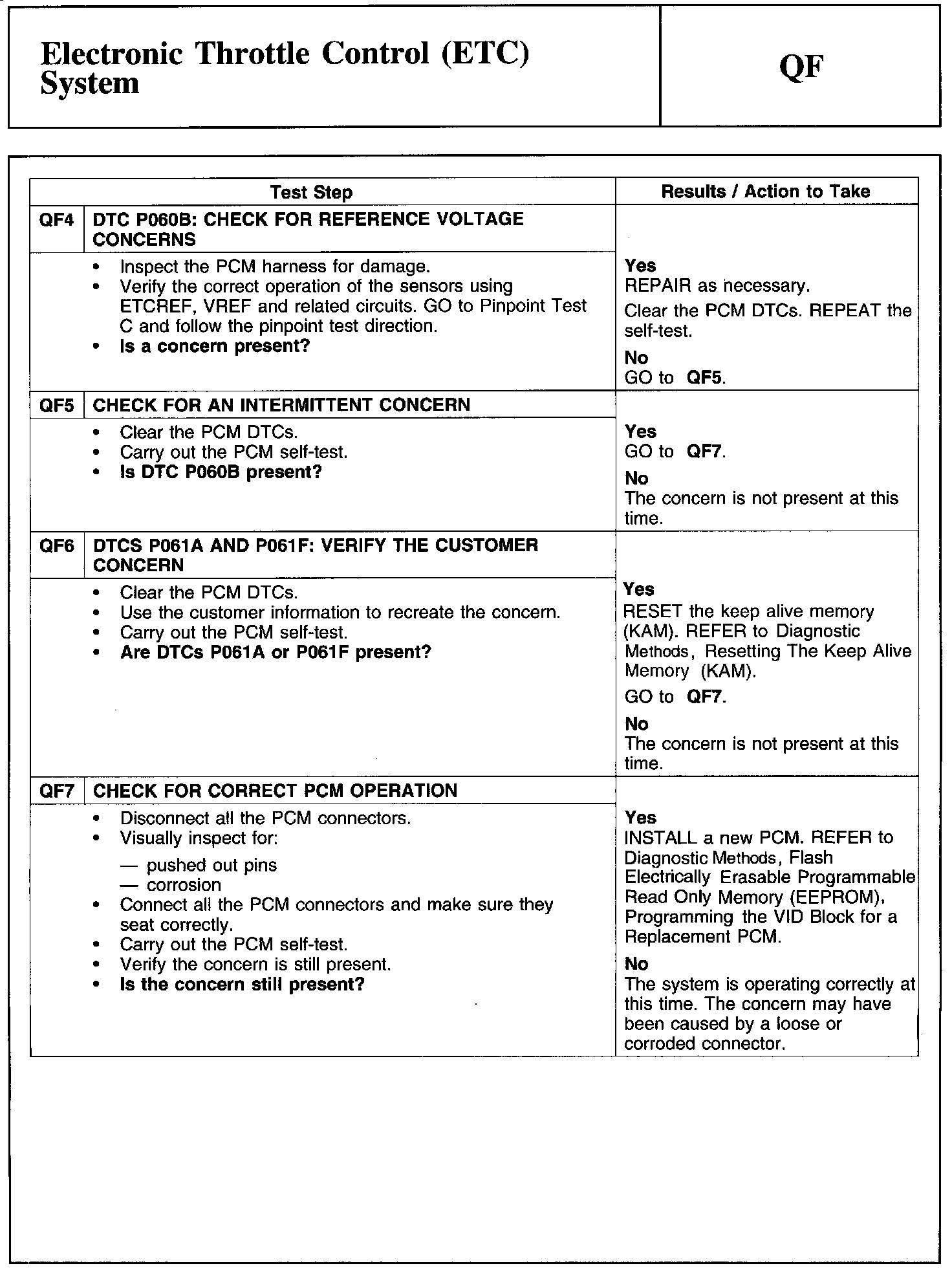

QF4-QF7:
