Test QB: Keep Alive Power
Test QB: Keep Alive Power
PINPOINT TEST QB: KEEP ALIVE POWER

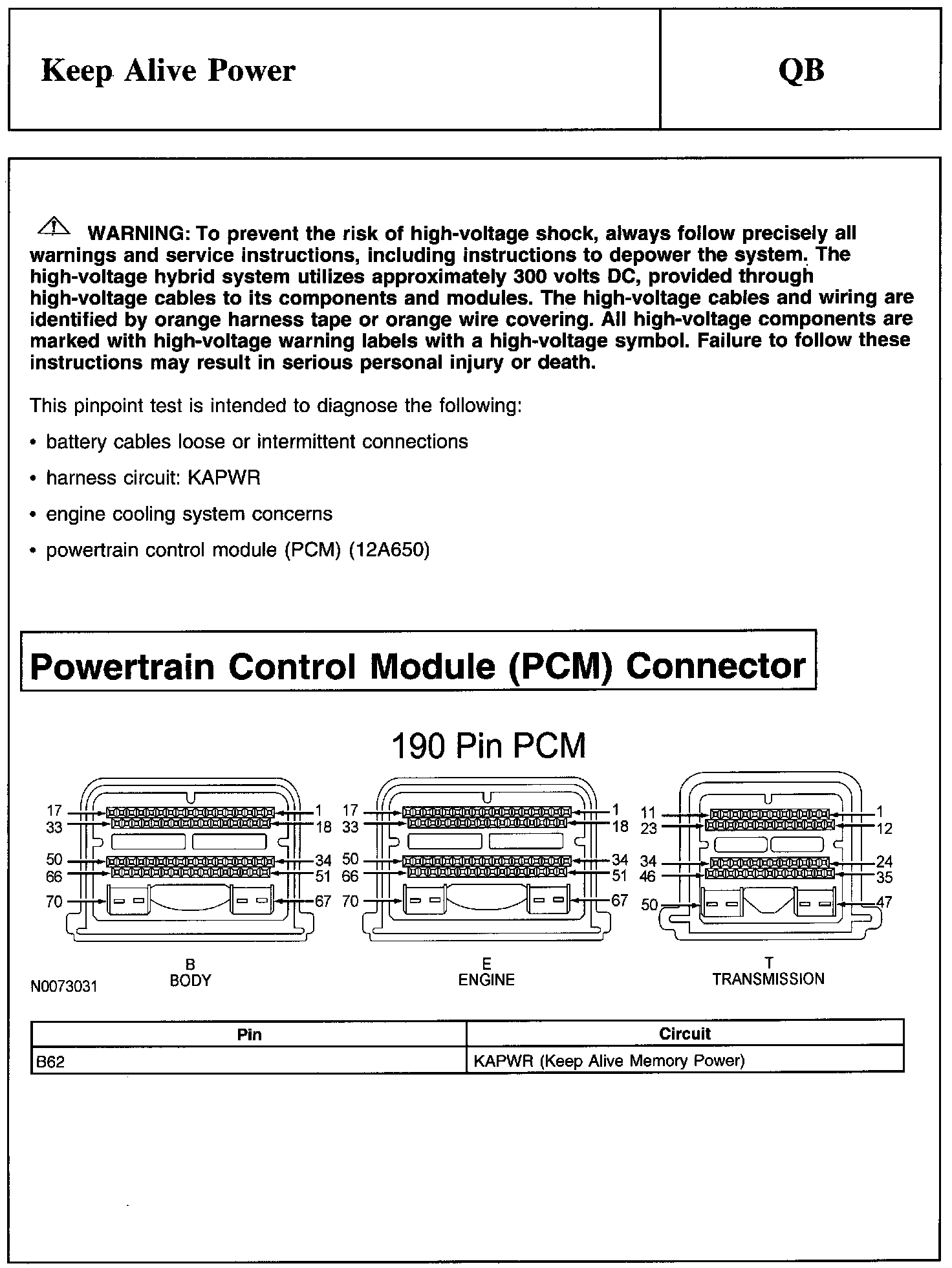

Warning And Powertrain Control Module (PCM) Connector:

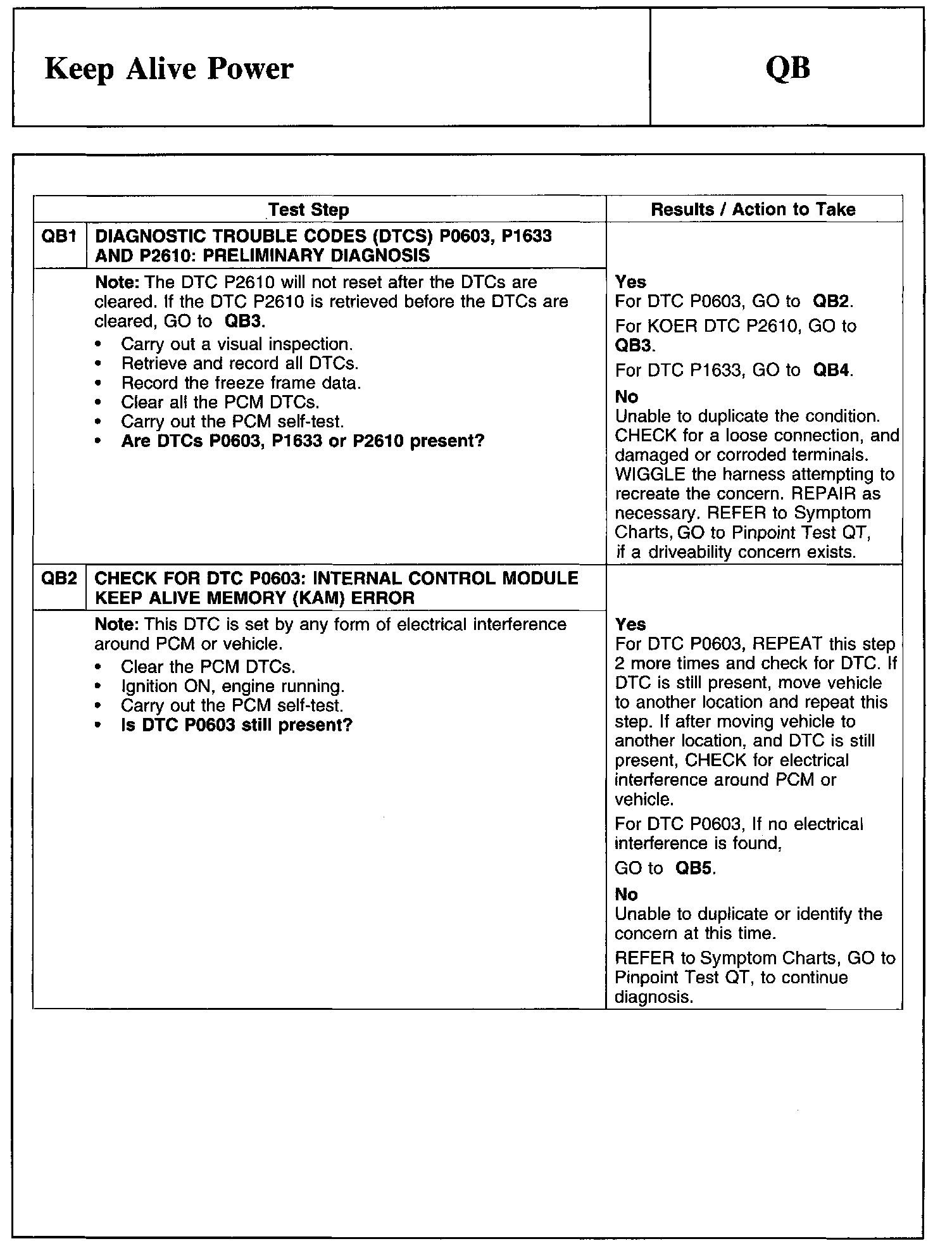

QB1-QB2:

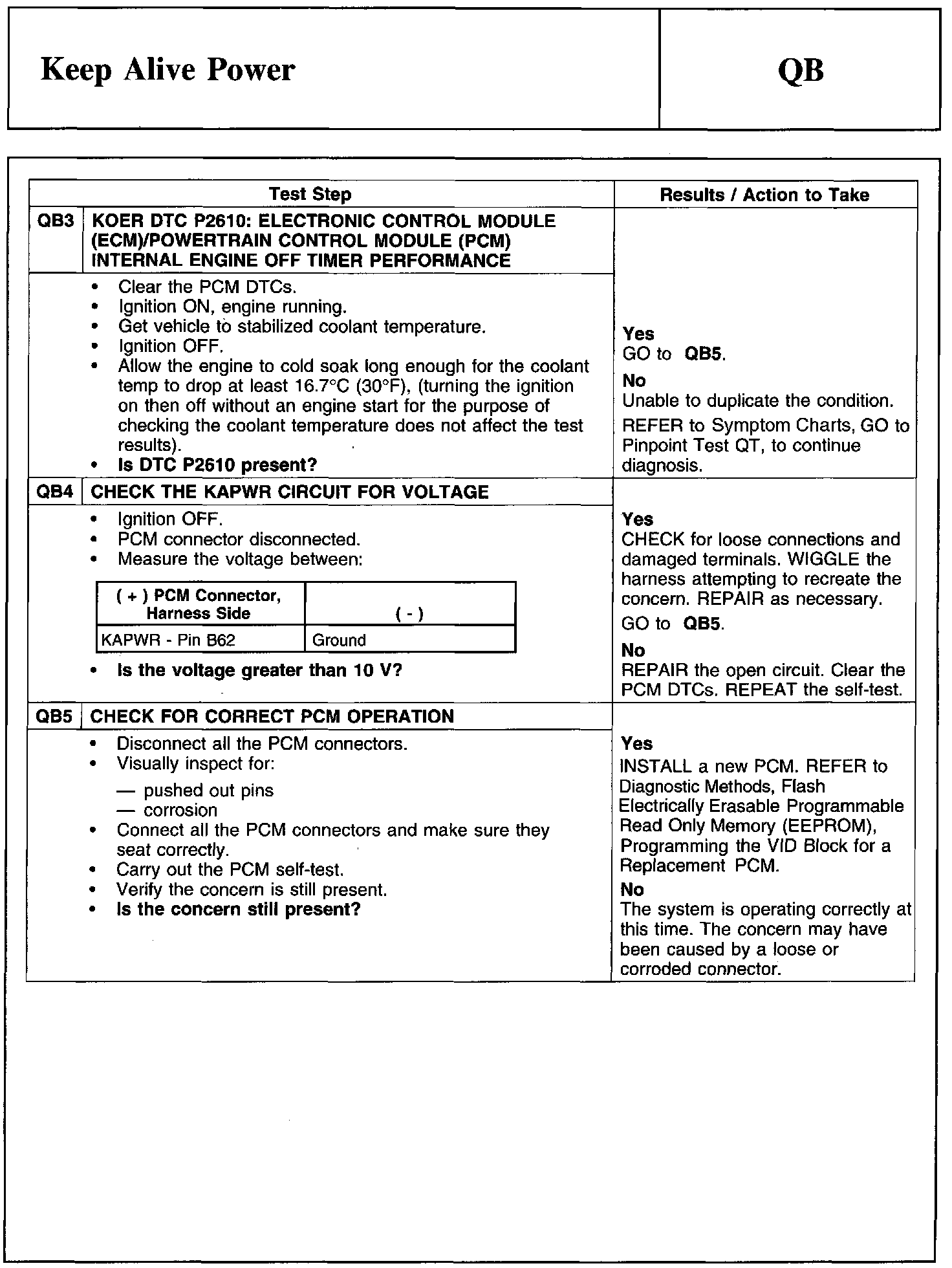

QB3-QB5:
