Test KT: Motor Electronics Cooling System (MECS) Pump

PINPOINT TEST KT: MOTOR ELECTRONICS COOLING SYSTEM (MECS) PUMP

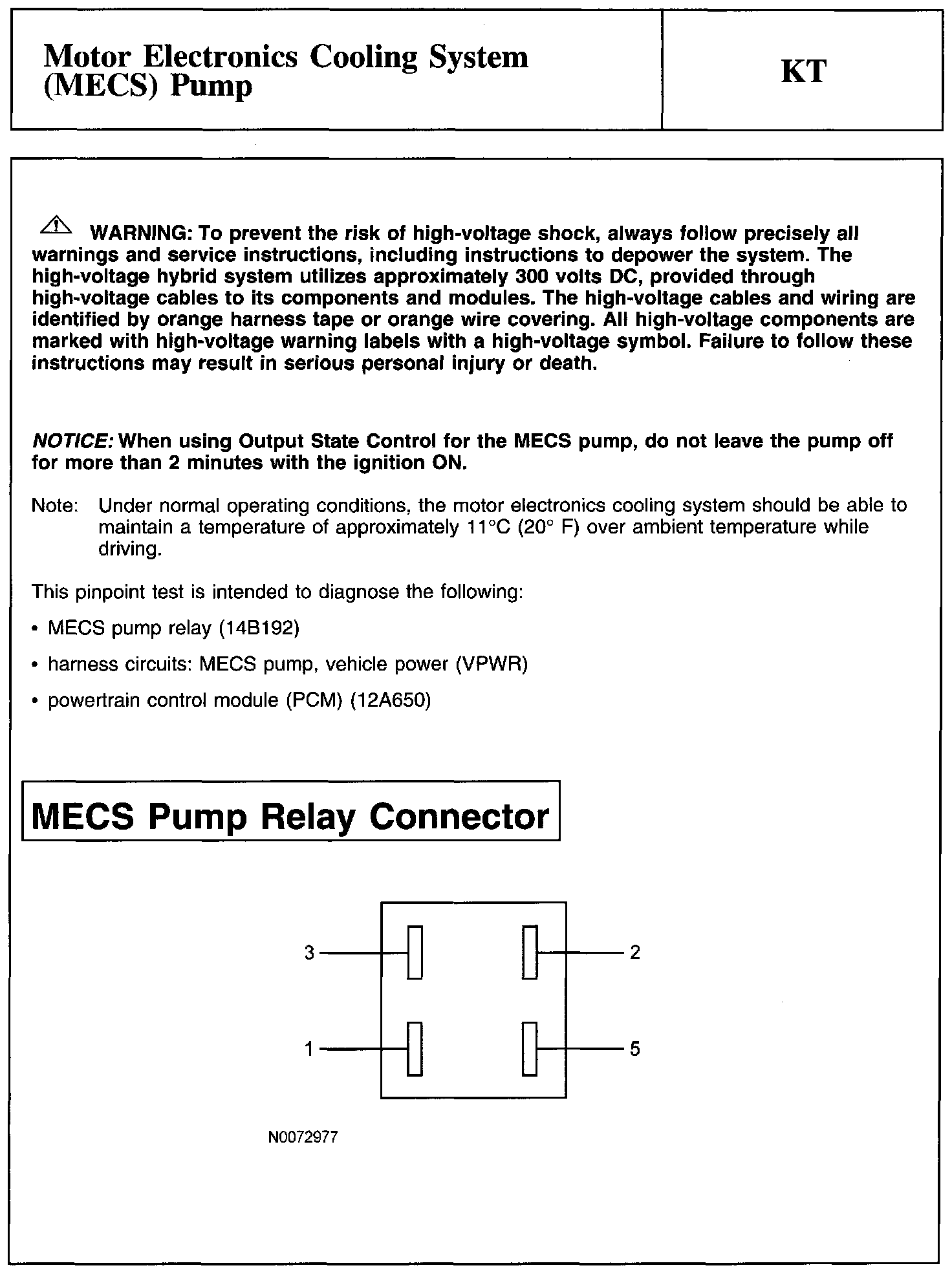

Warning, Notice, Note And MECS Pump Relay Connector:

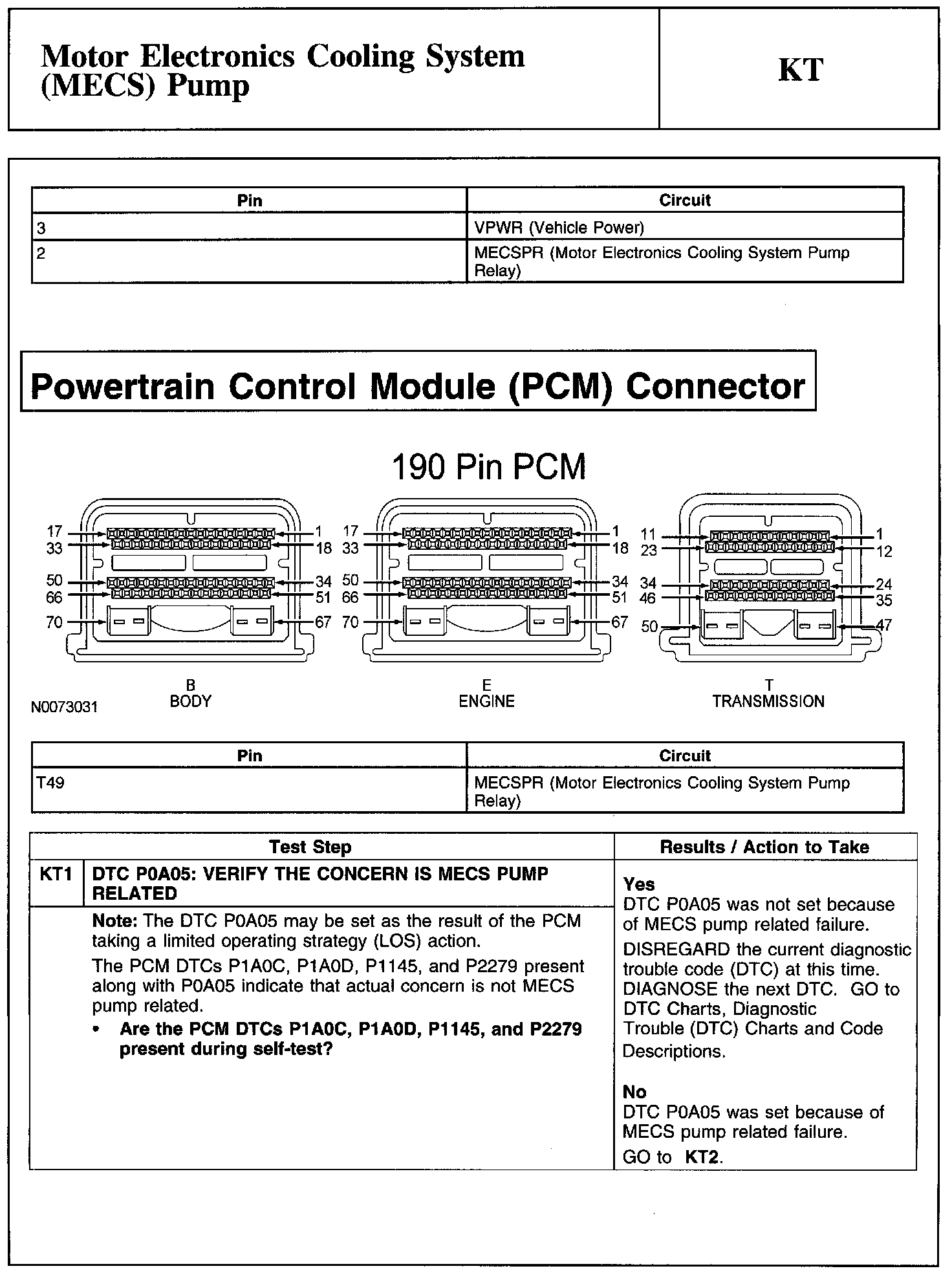

KT1:

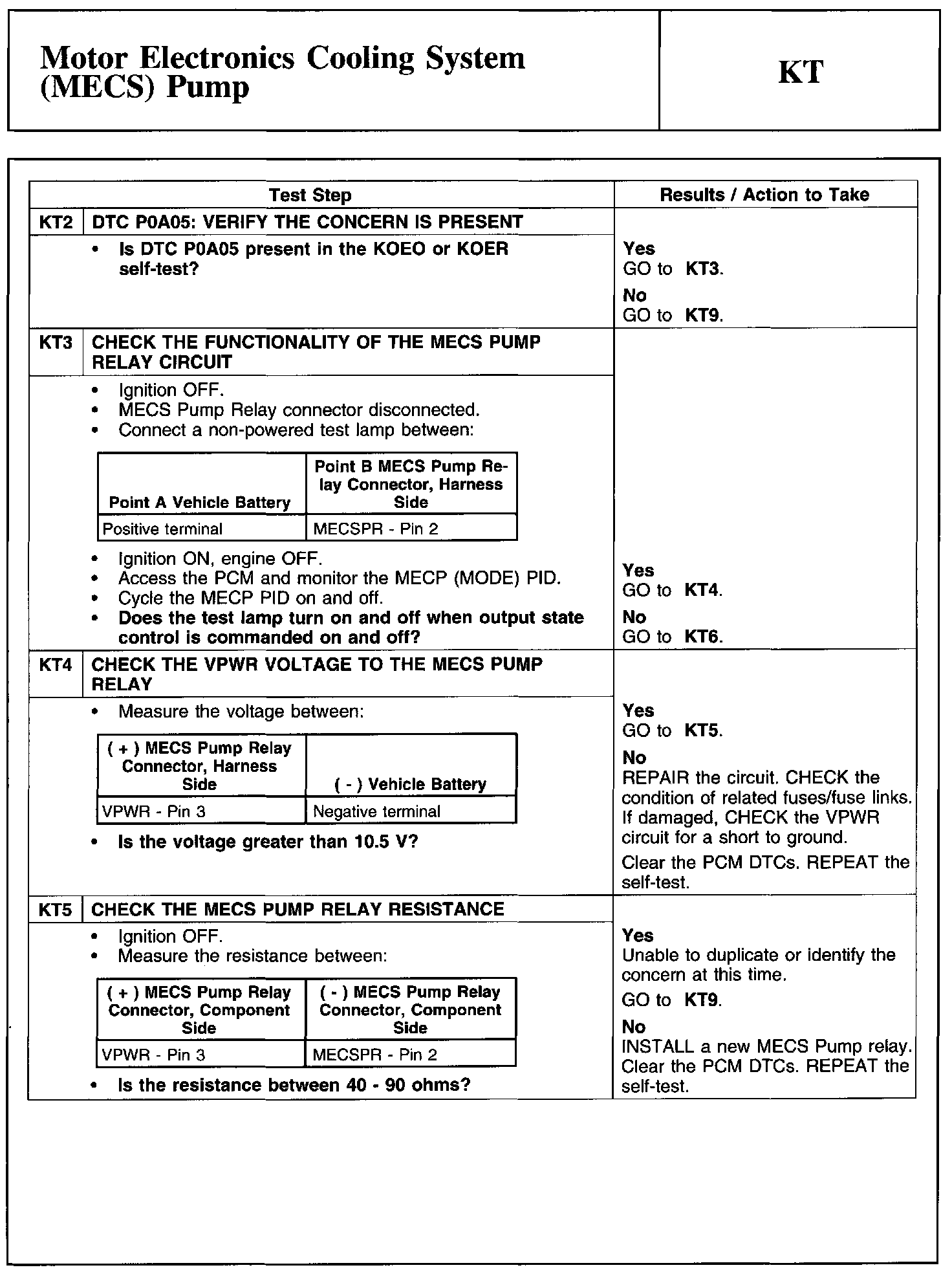

KT2-KT5:

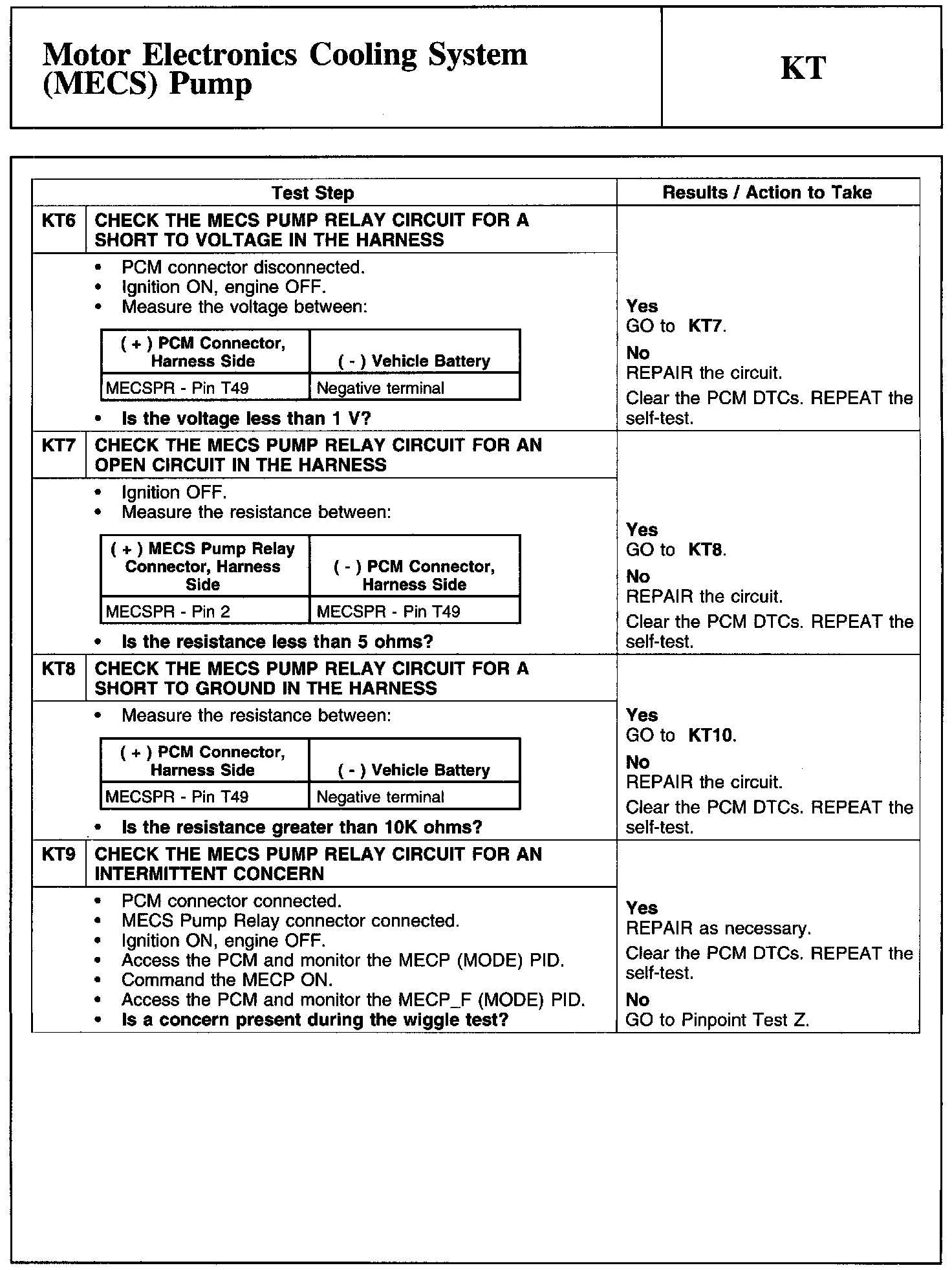

KT6-KT9:

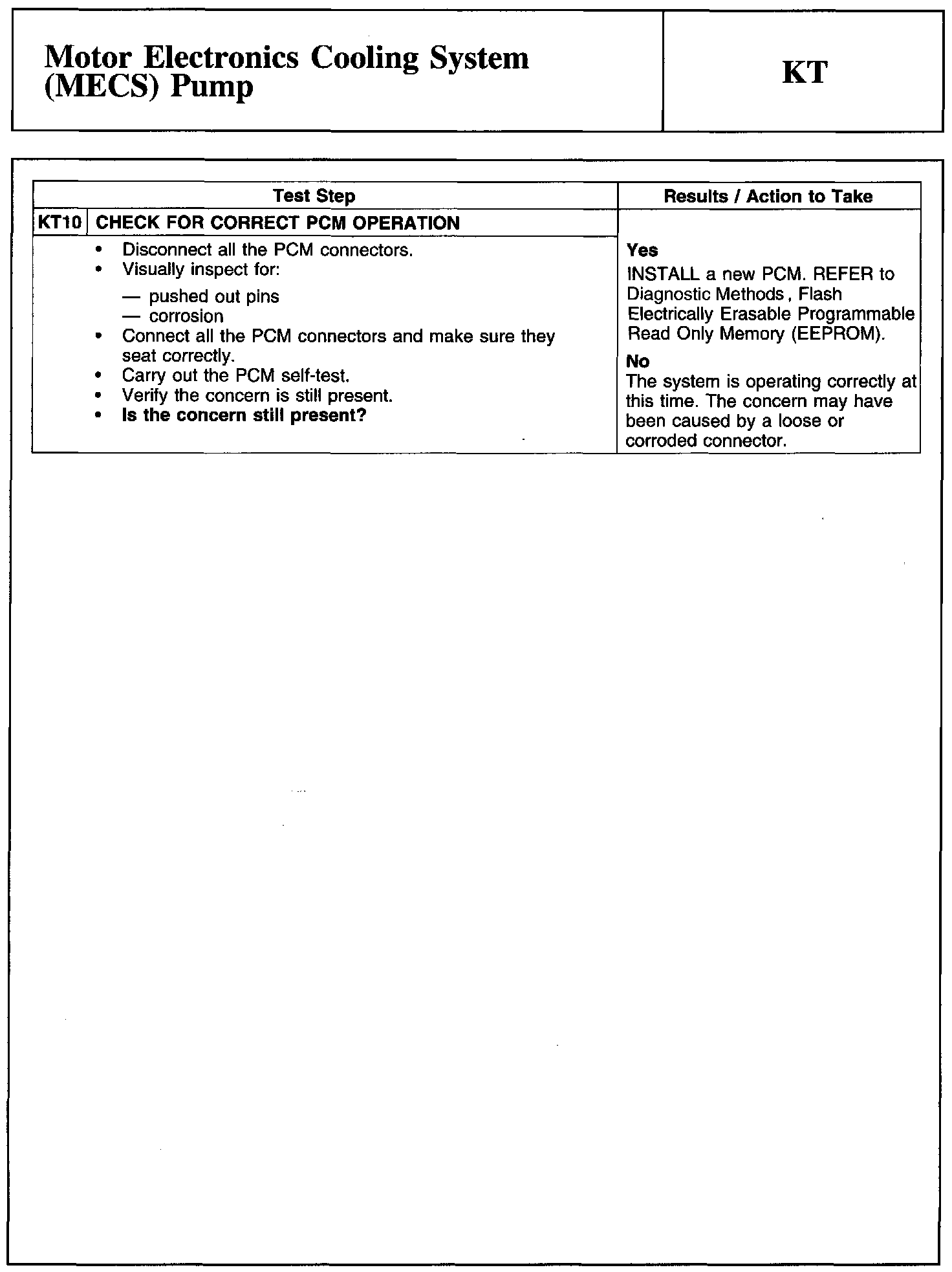

KT10:
