Test KG: Fuel Injector

PINPOINT TEST KG: FUEL INJECTOR

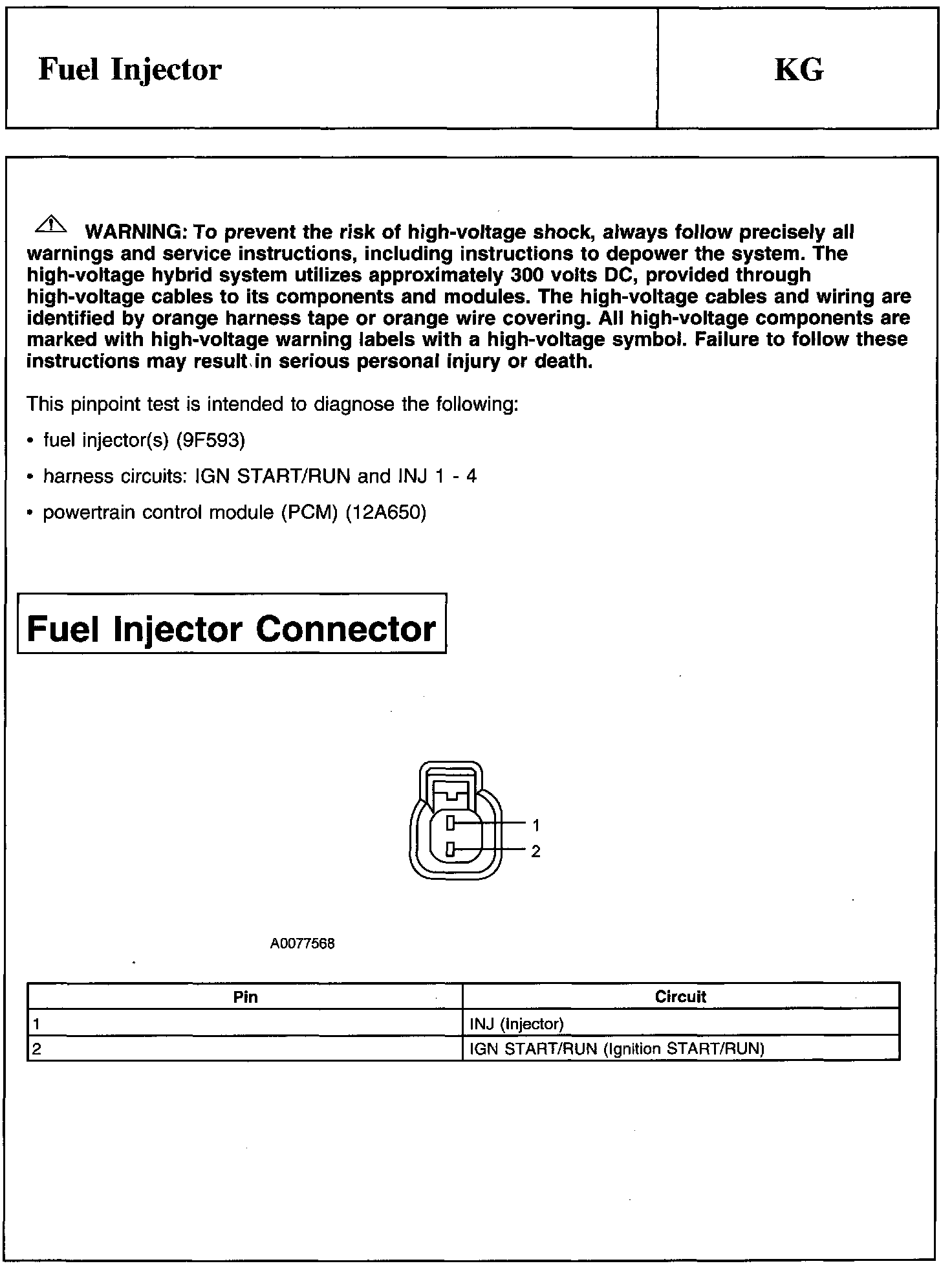

Warning And Fuel Injector Connector:

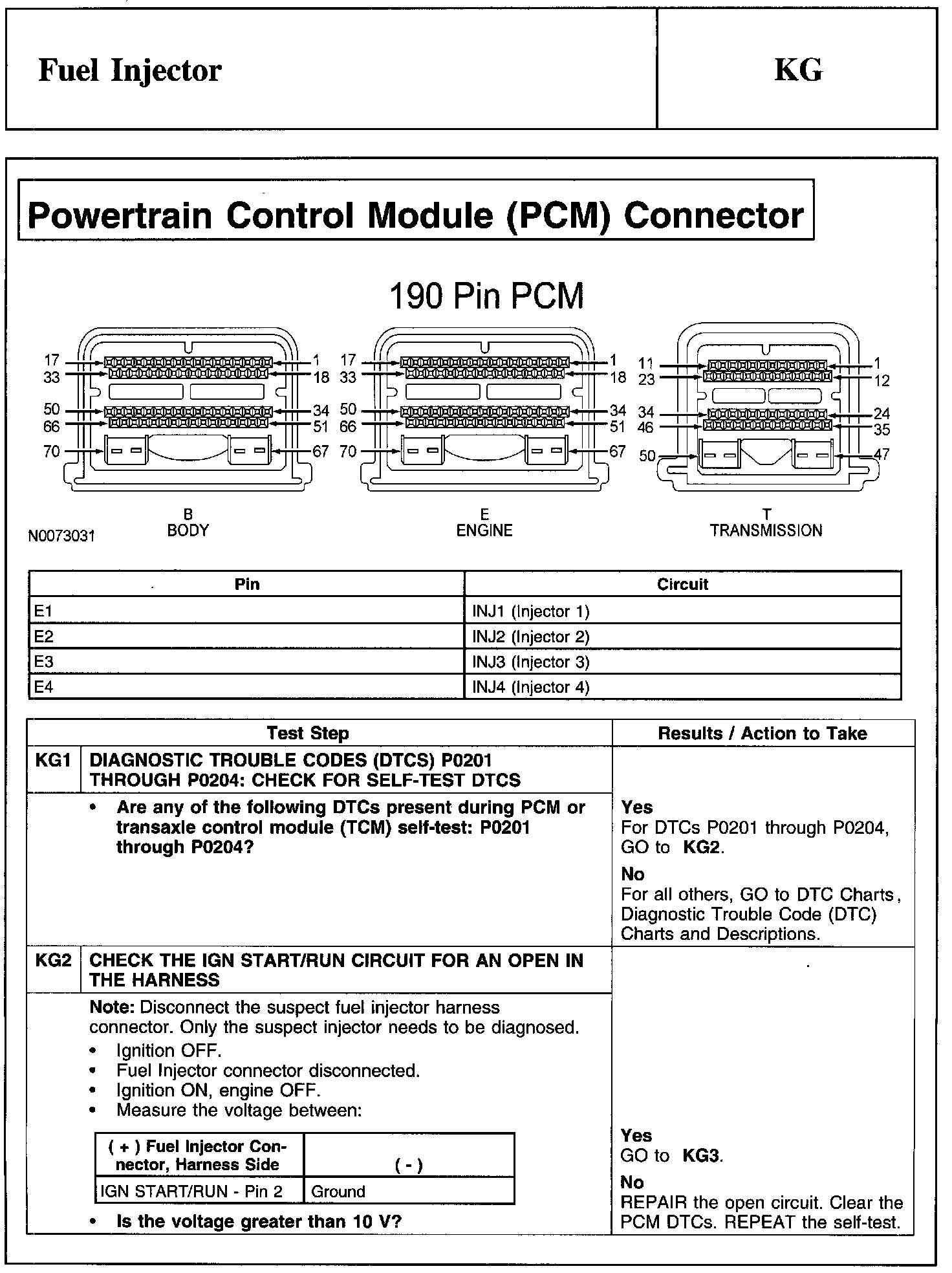

KG1-KG2:

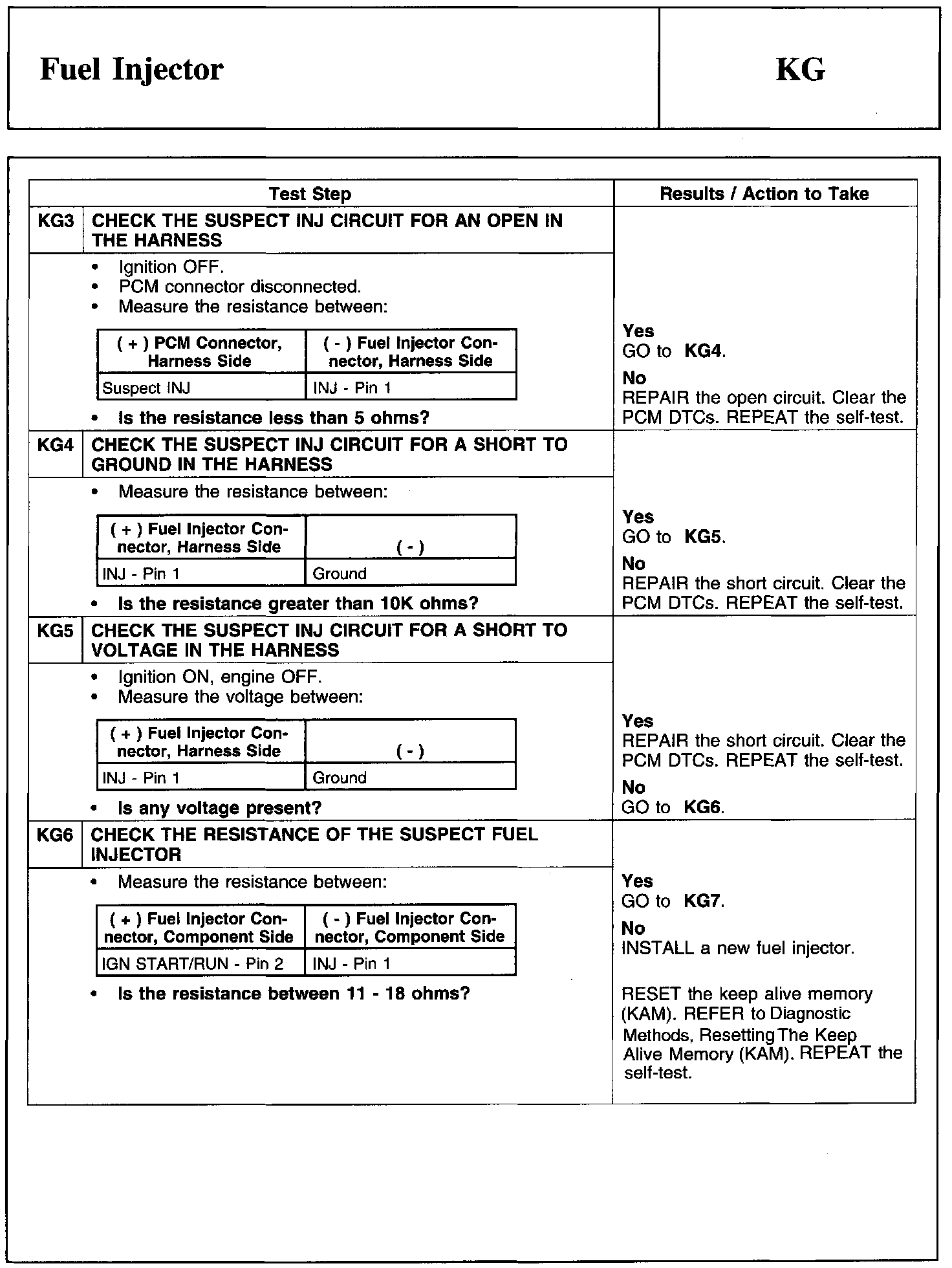

KG3-KG6:

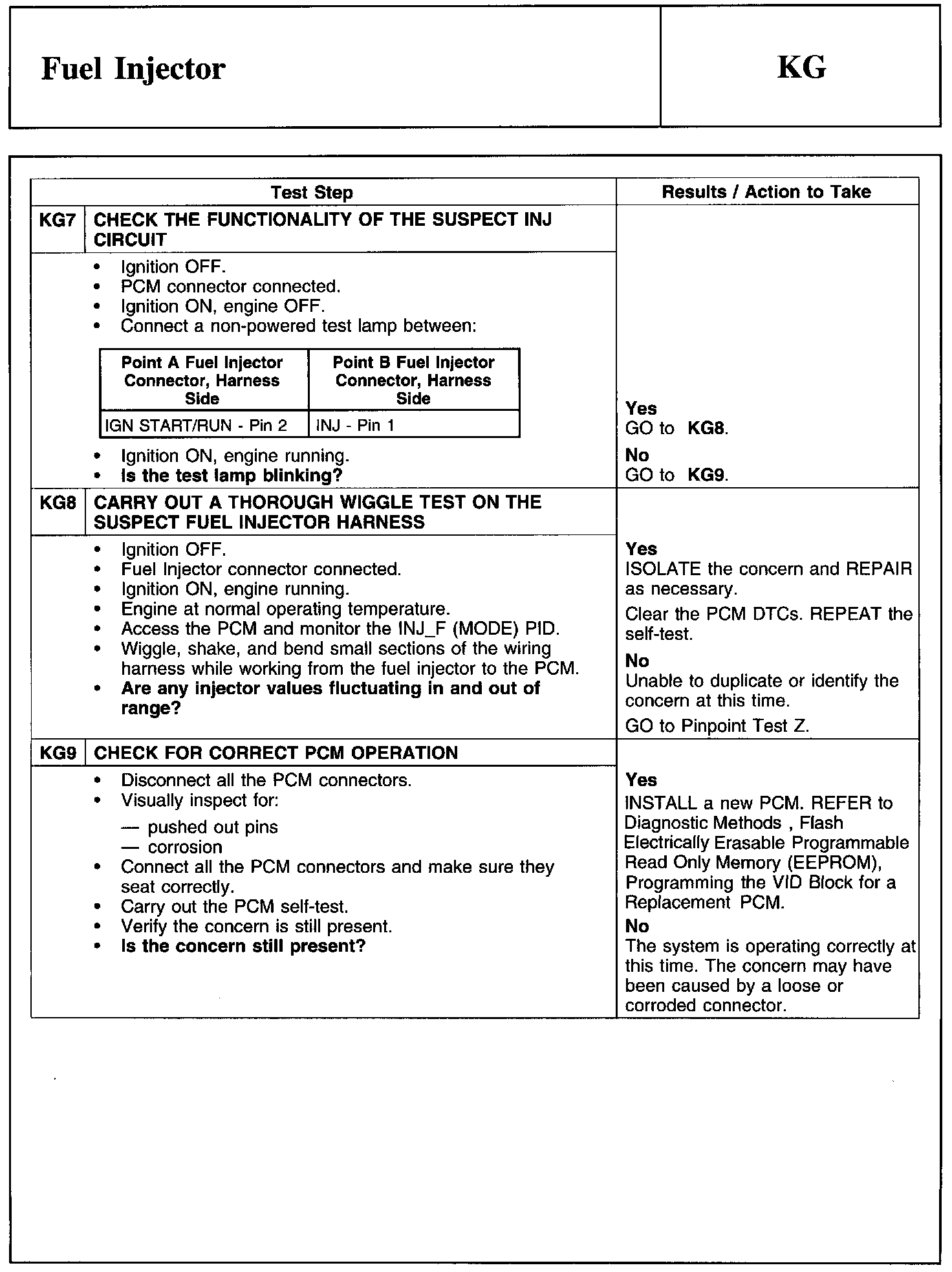

KG7-KG9:
