Test KF: Variable Speed Electric Cooling Fan

PINPOINT TEST KF: VARIABLE SPEED ELECTRIC COOLING FAN

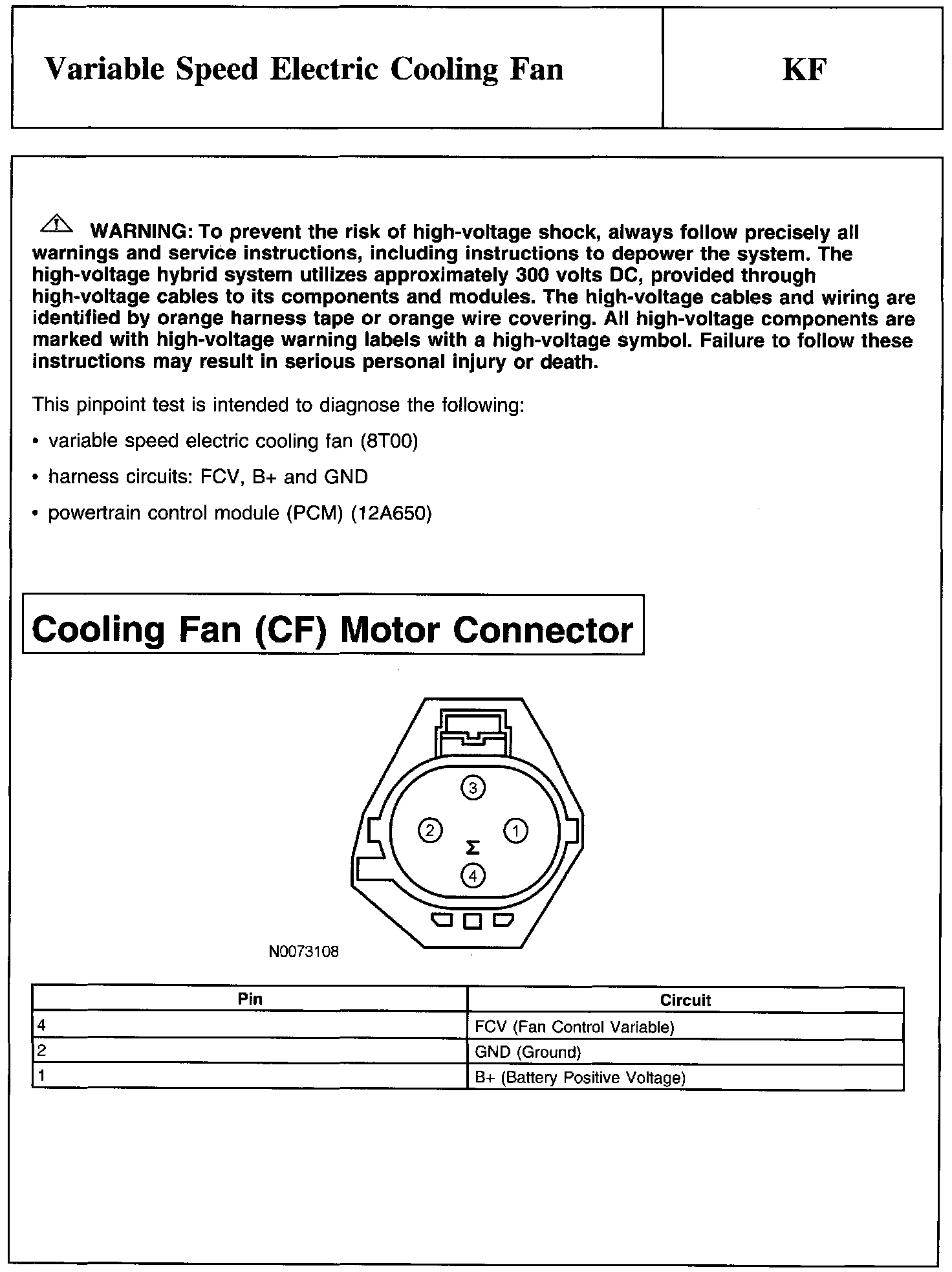

Warning And Cooling Fan (CF) Motor Connector:

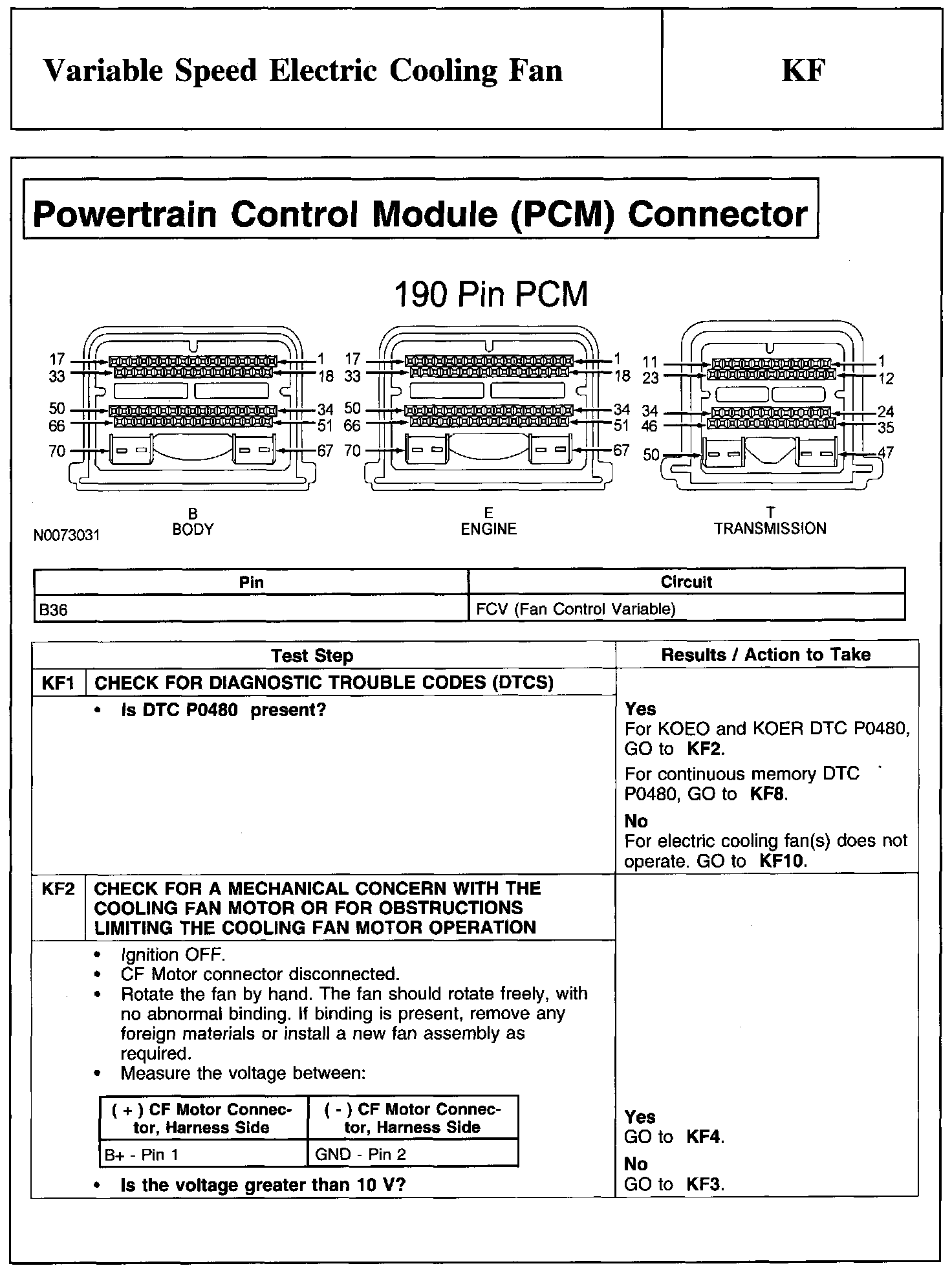

KF1-KF2:

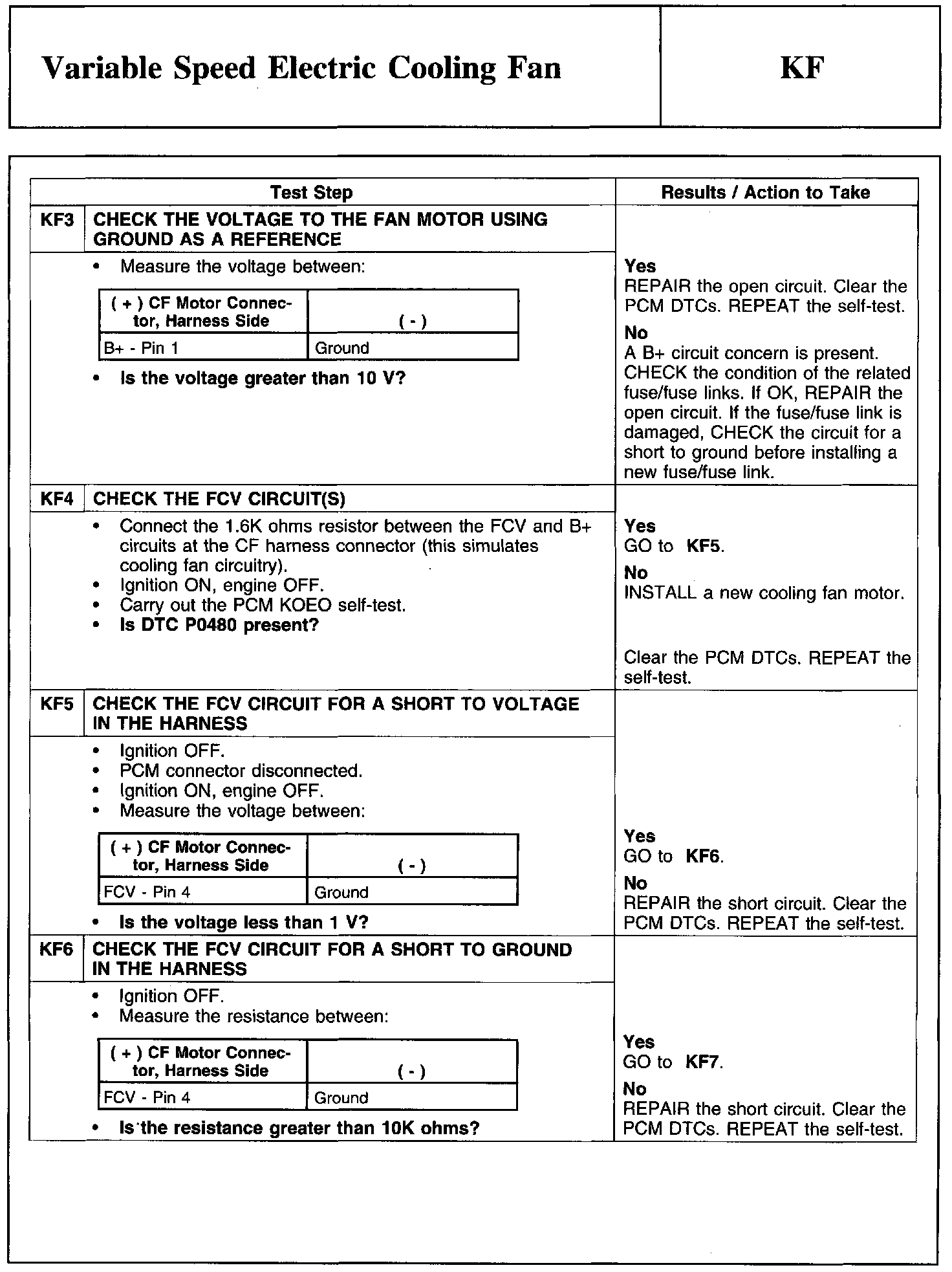

KF3-KF6:

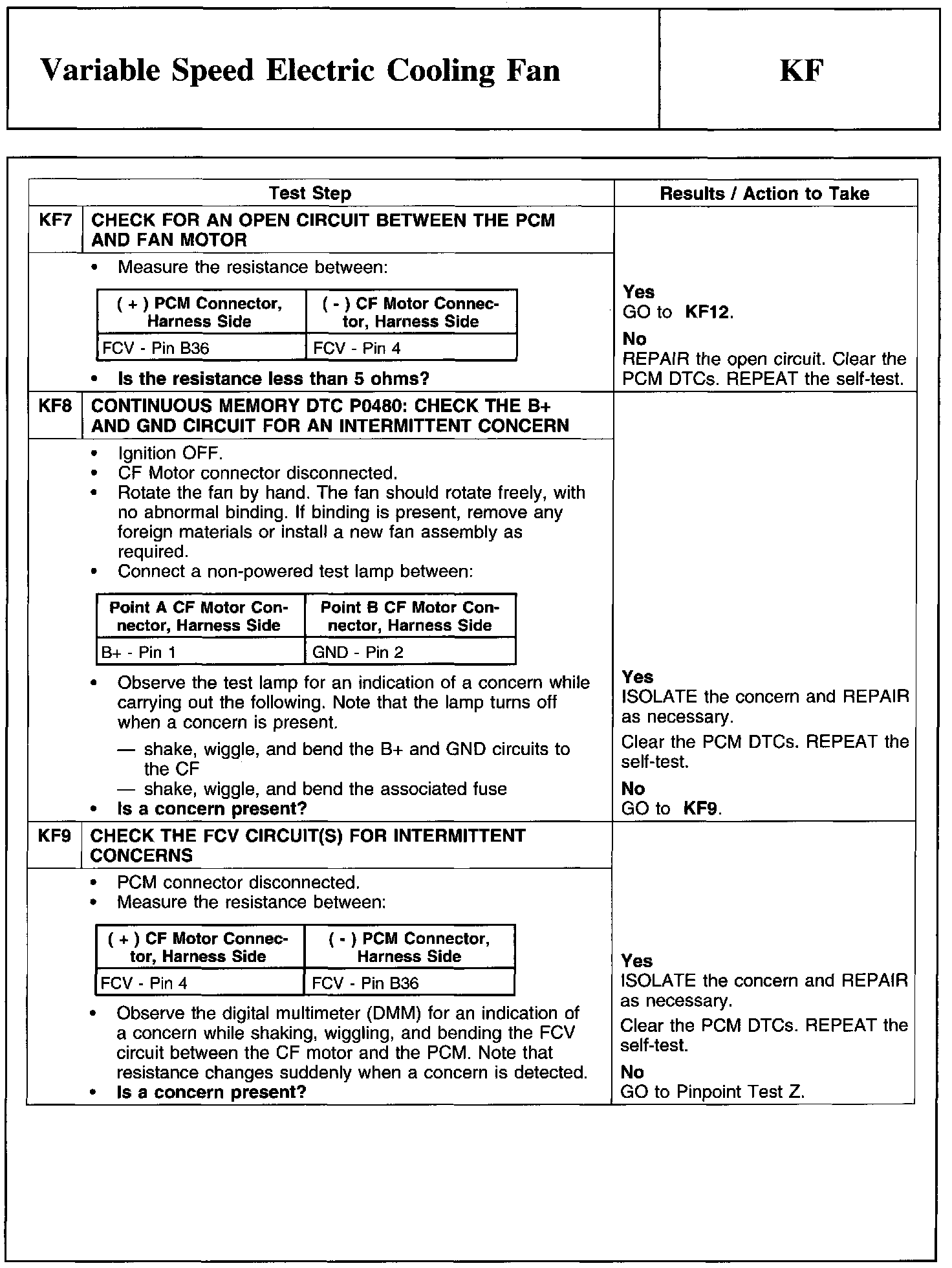

KF7-KF9:

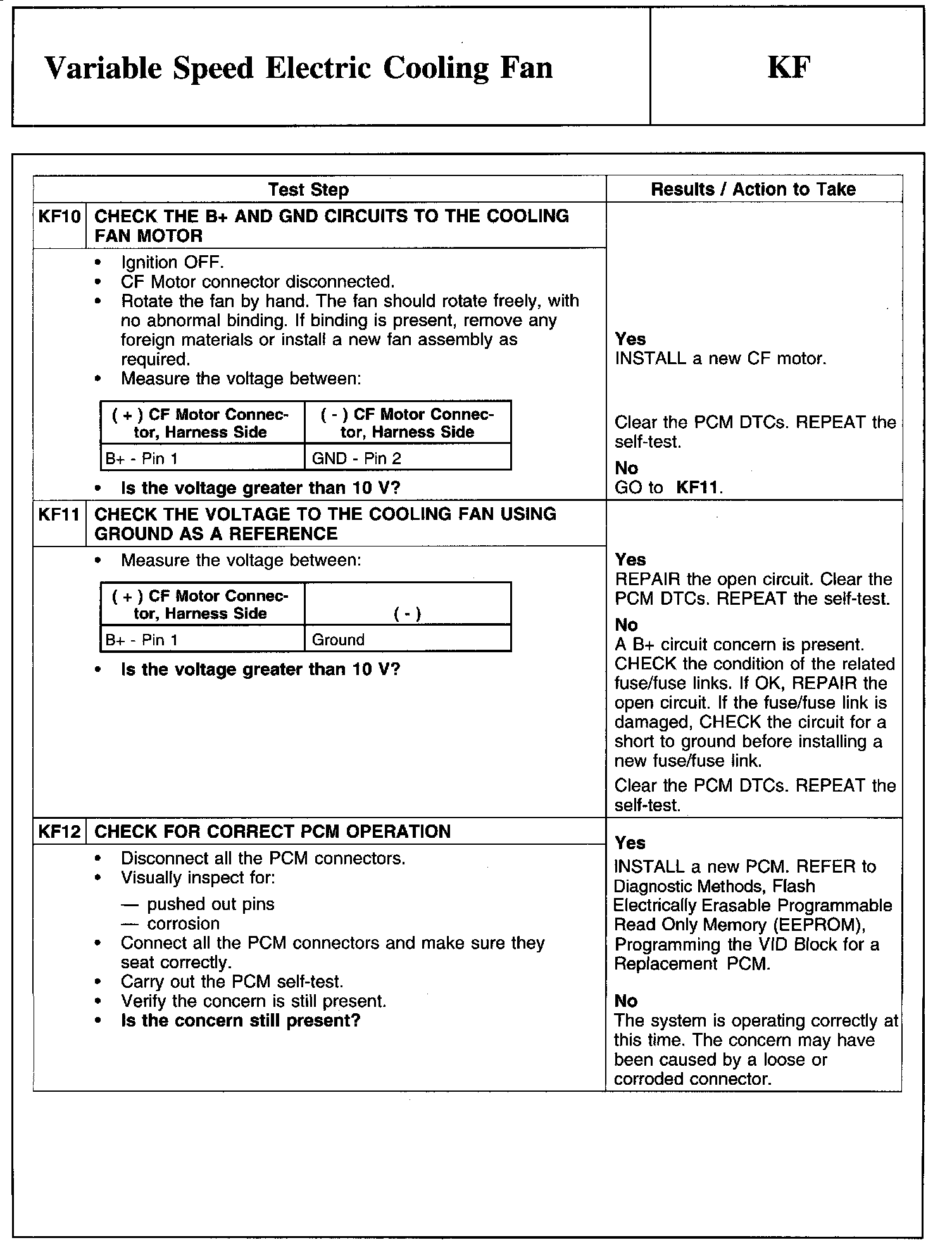

KF10-KF12:
