Test HU: Intake Air System
Test HU: Intake Air System
PINPOINT TEST HU: INTAKE AIR SYSTEM
HU1-HU2:

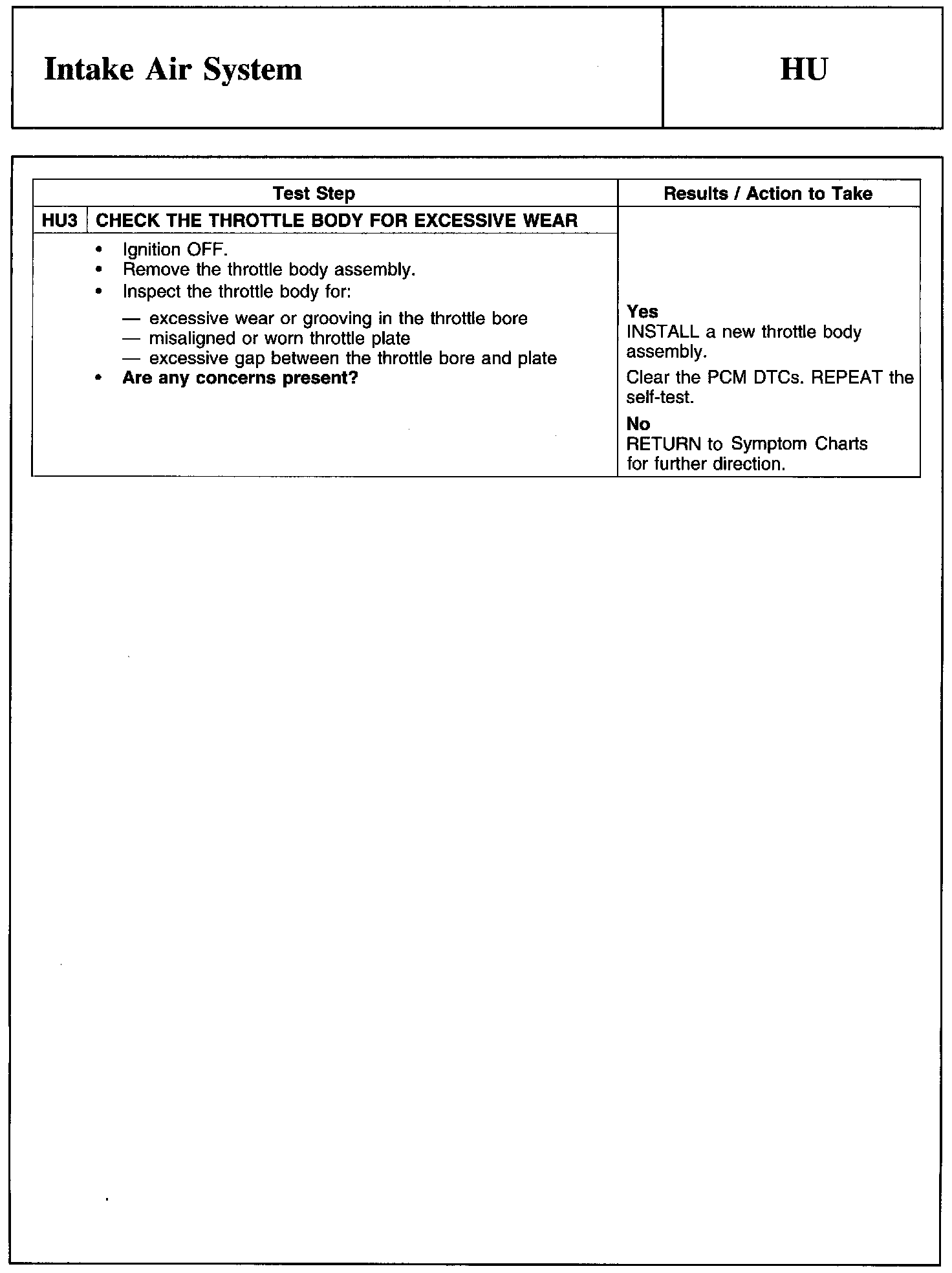

HU3:
