Test HK: Variable Camshaft Timing (VCT)
Test HK: Variable Camshaft Timing (VCT)
PINPOINT TEST HK: VARIABLE CAMSHAFT TIMING (VCT)

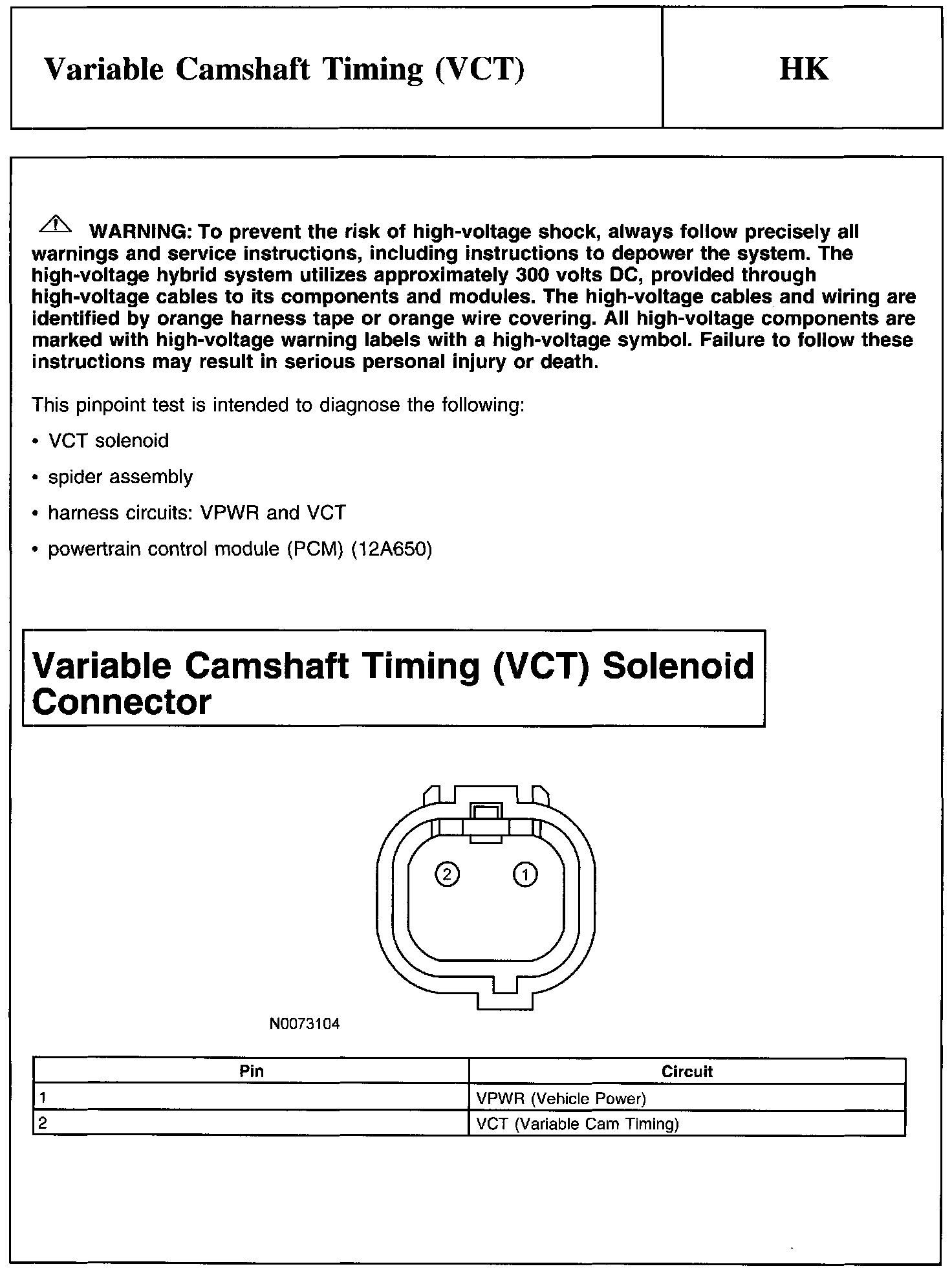

Warning And Variable Camshaft Timing (VCT) Solenoid Connector:

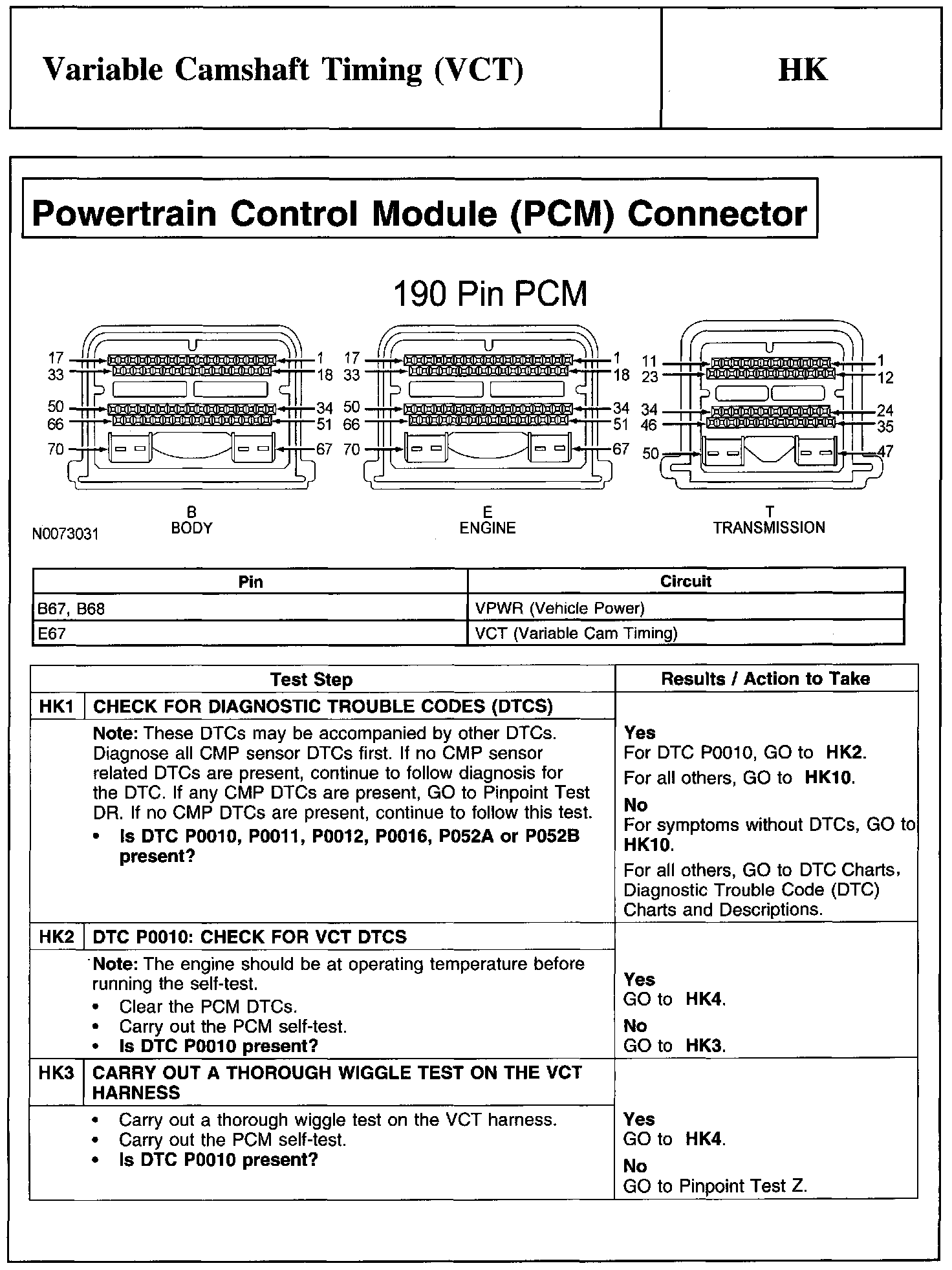

HK1-HK3:

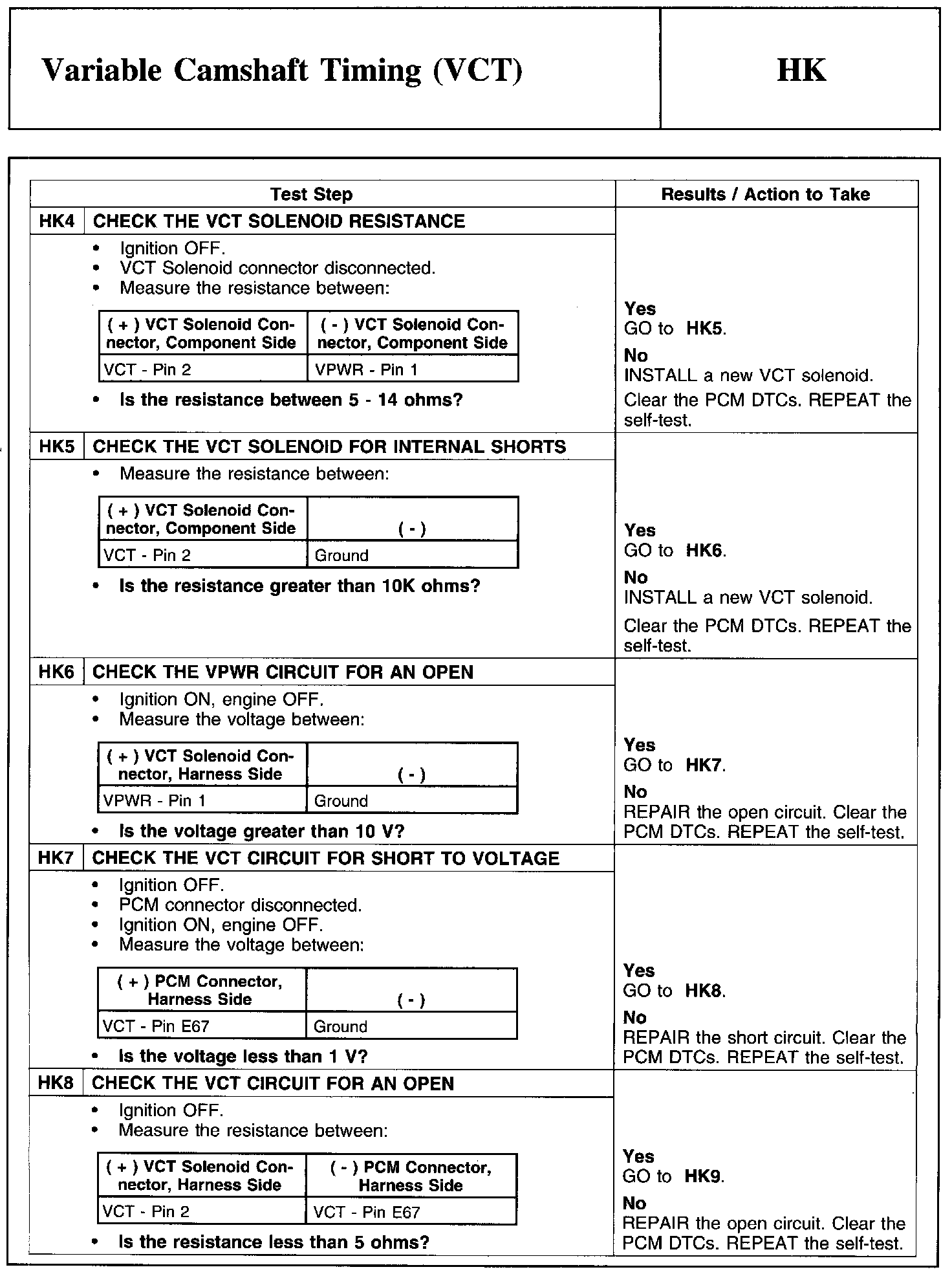

HK4-HK8:

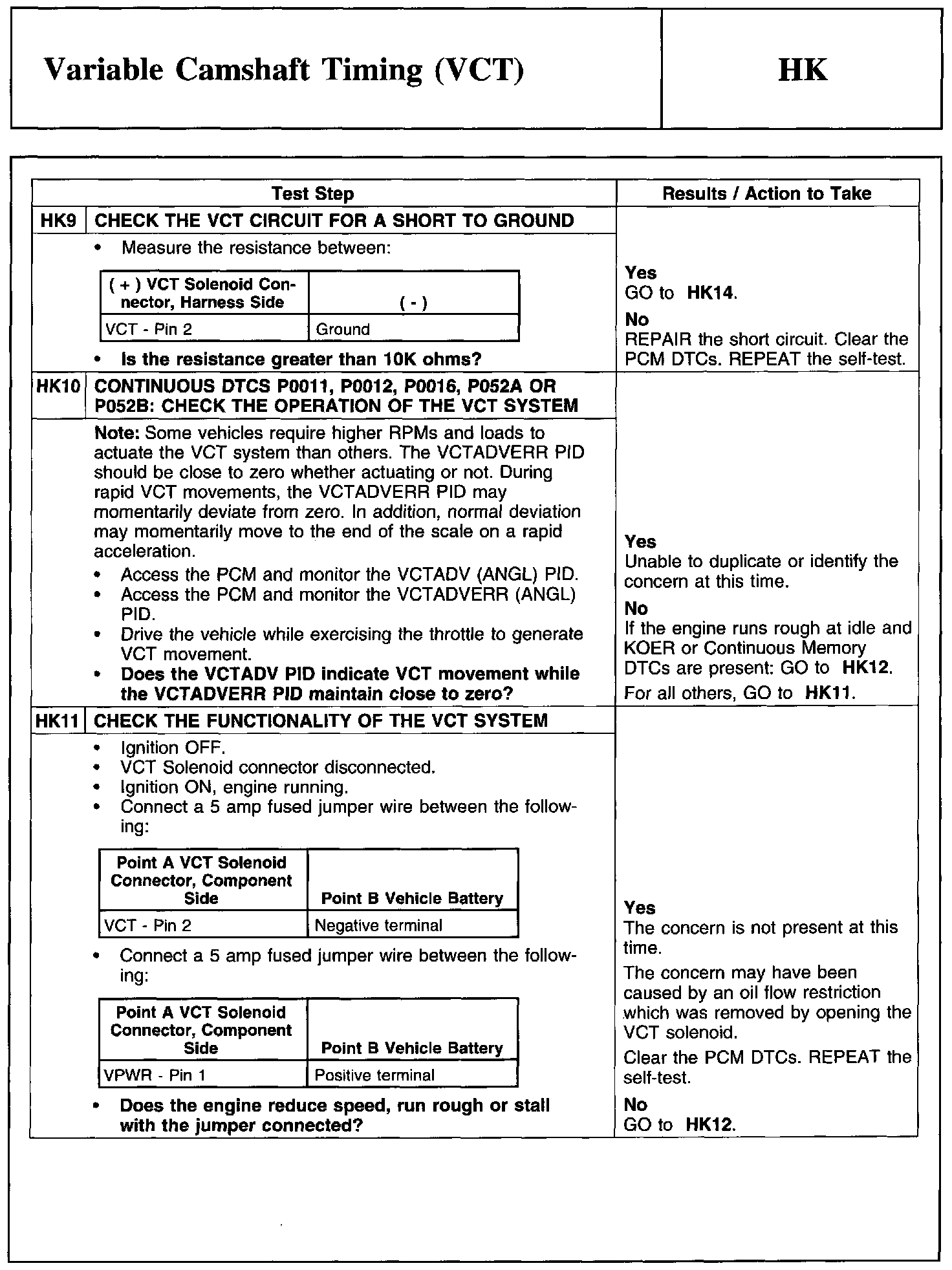

HK9-HK11:

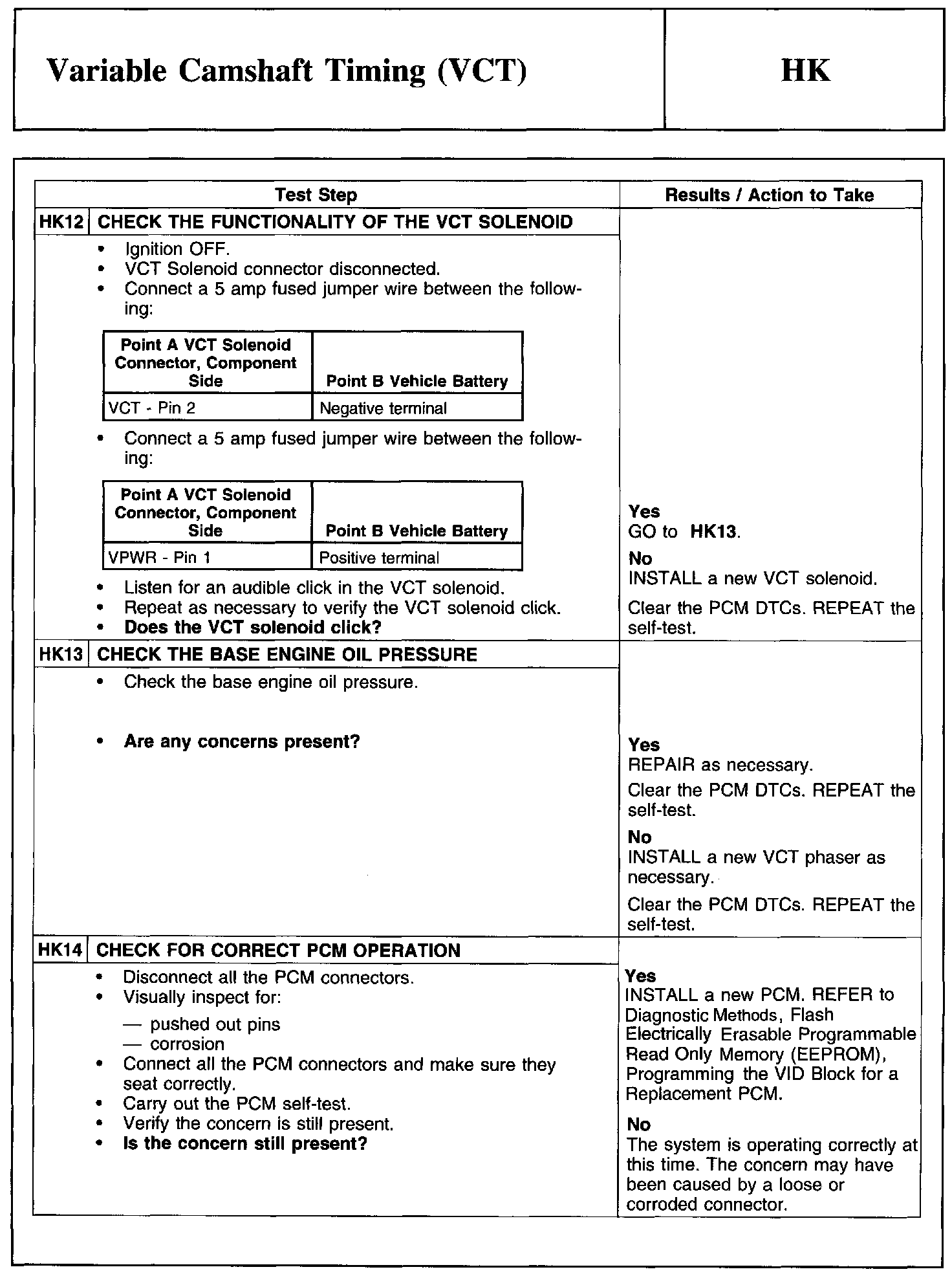

HK12-HK14:
