Test DZ: Universal Heated Oxygen Sensor (HO2S)

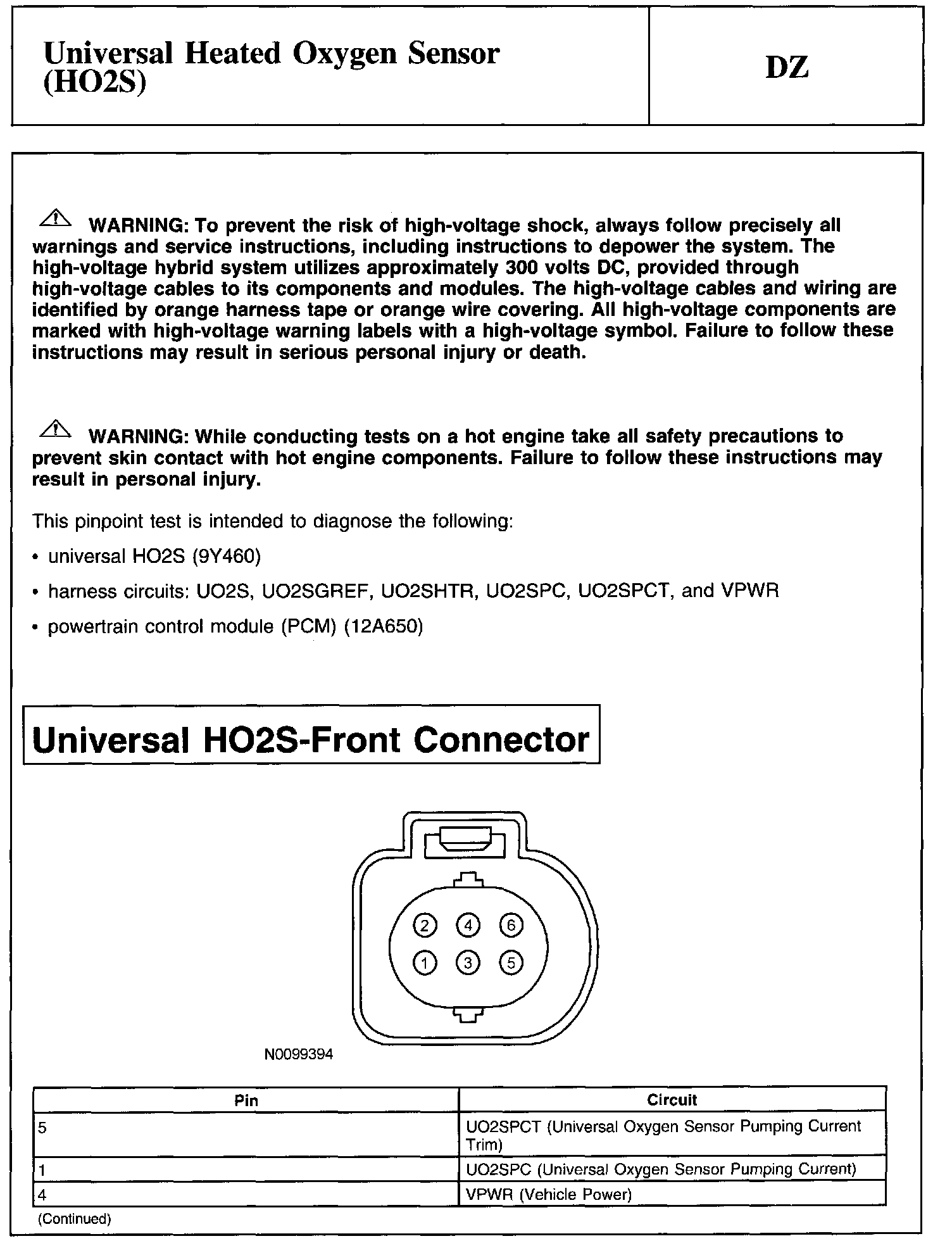

Warnings And Universal HO2S-Front Connector:

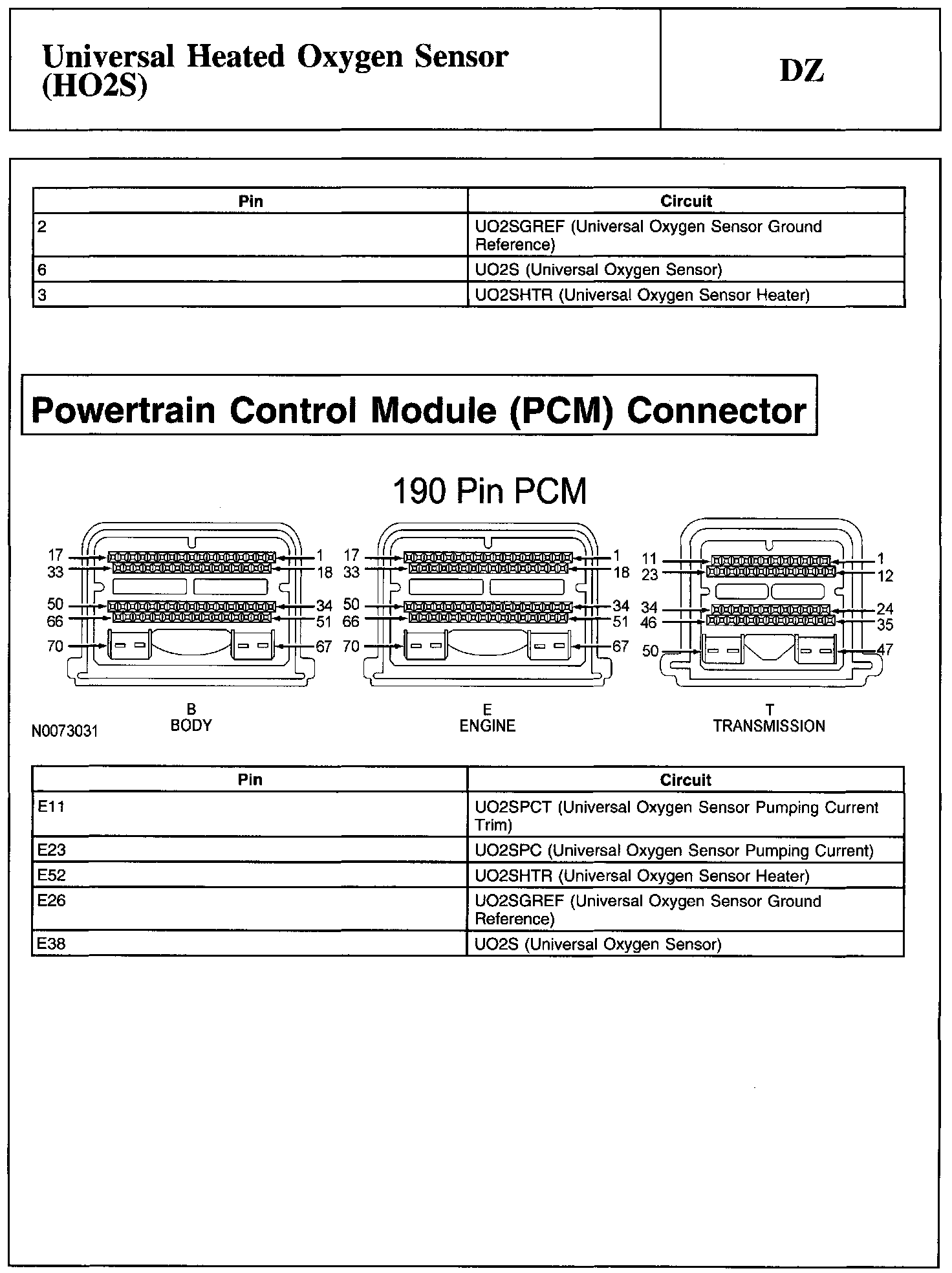

Universal HO2S-Front Connector And Powertrain Control Module (PCM) Connector:

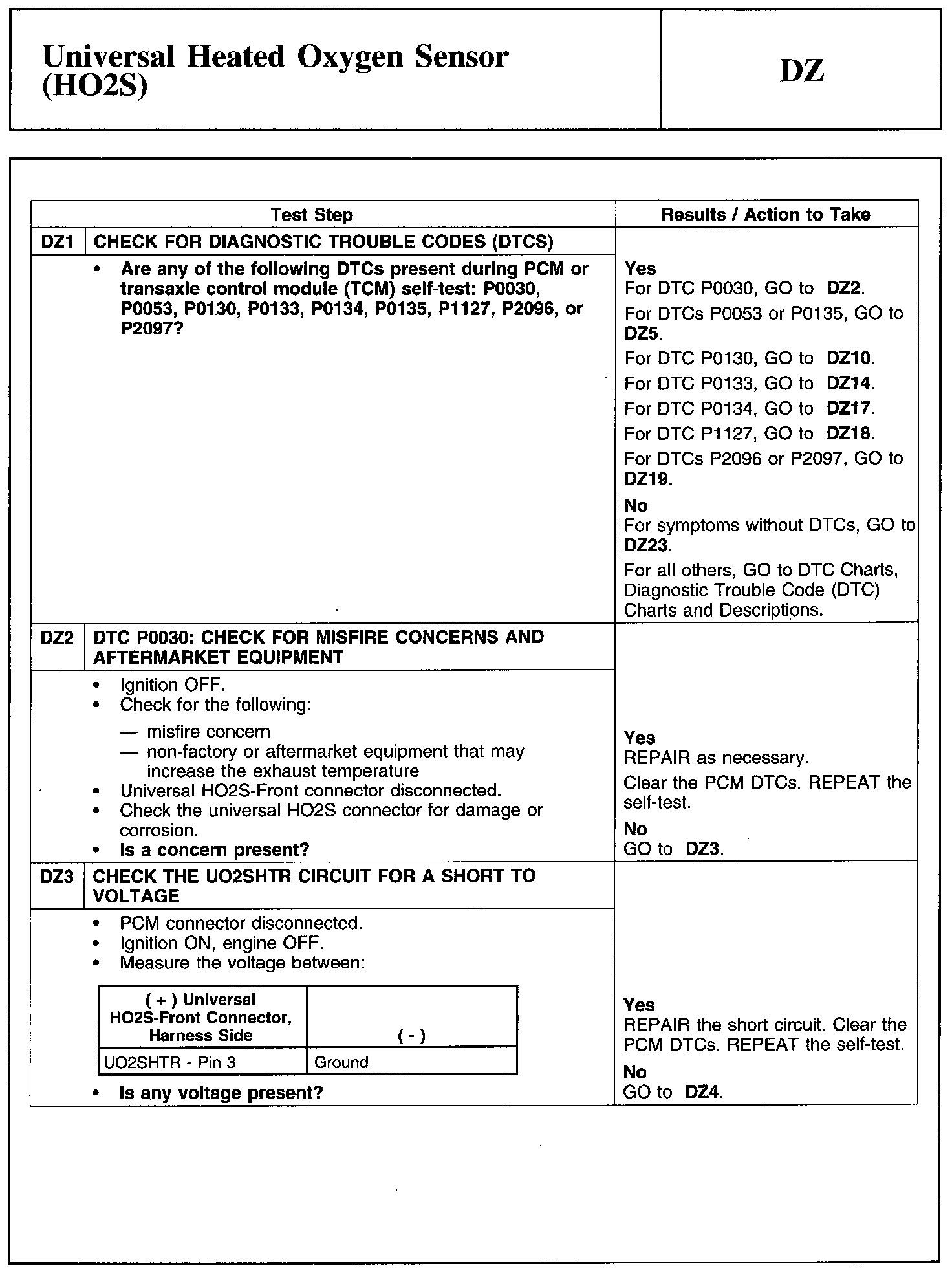

DZ1-DZ3:

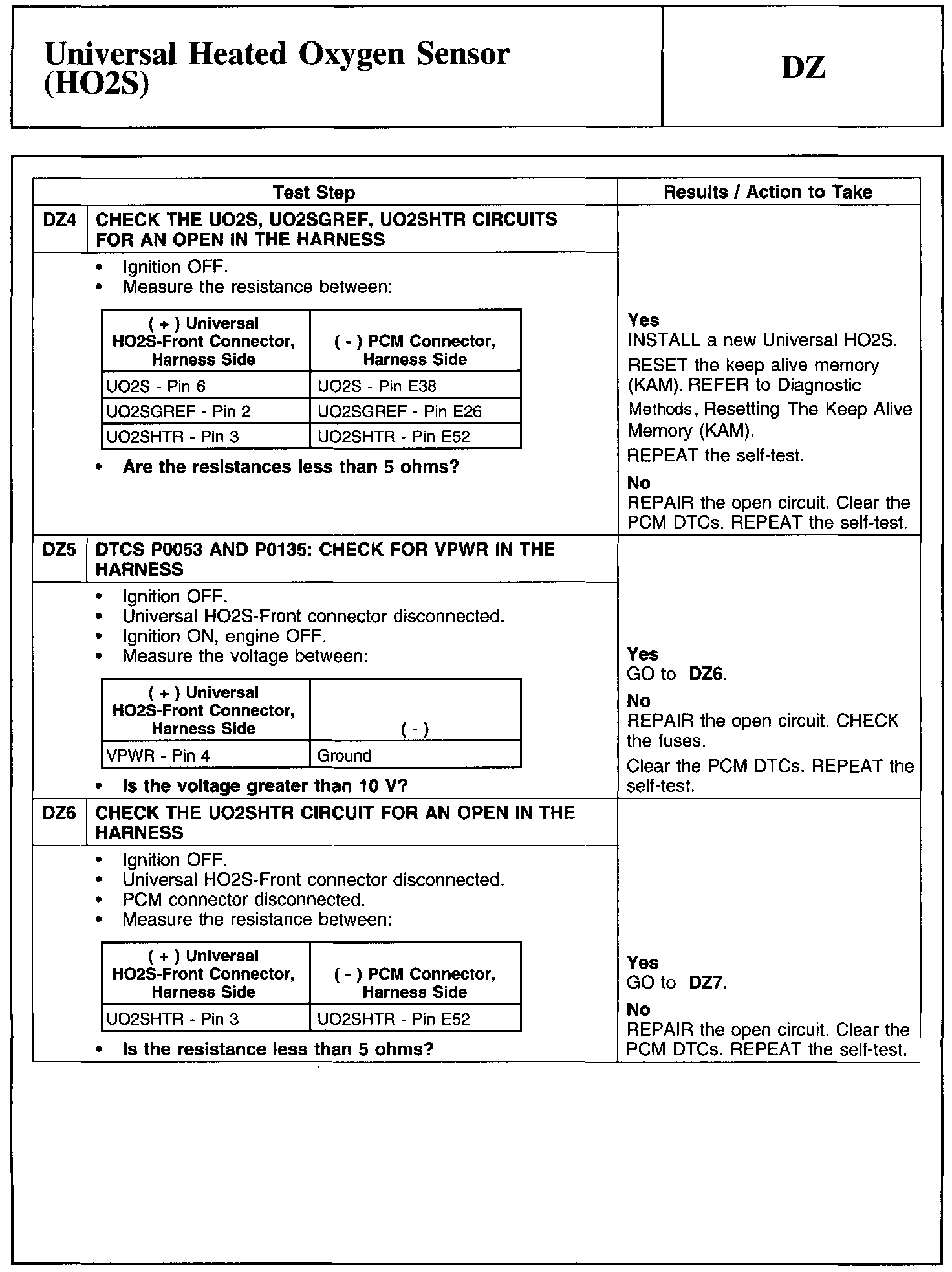

DZ4-DZ6:

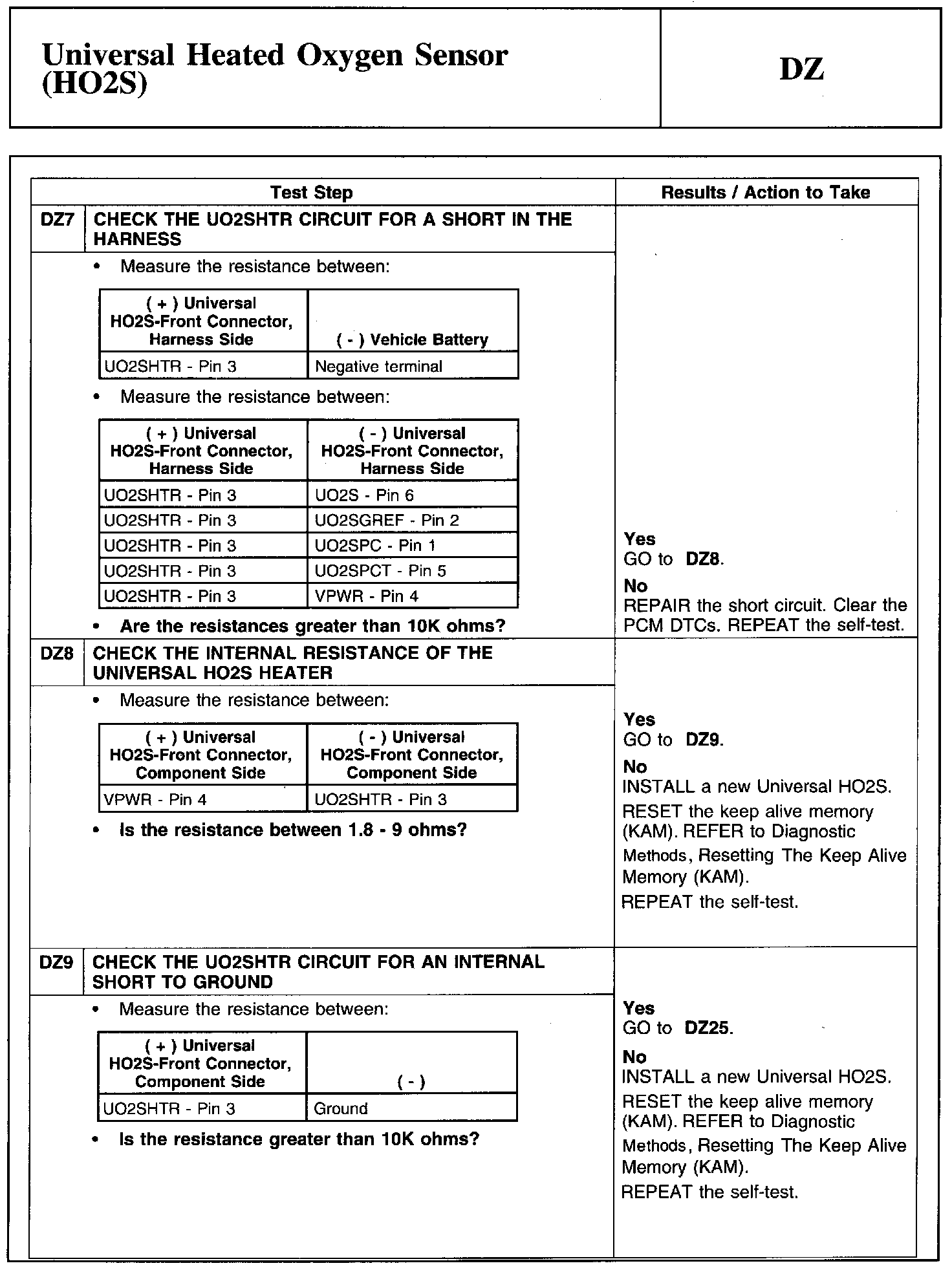

DZ7-DZ9:

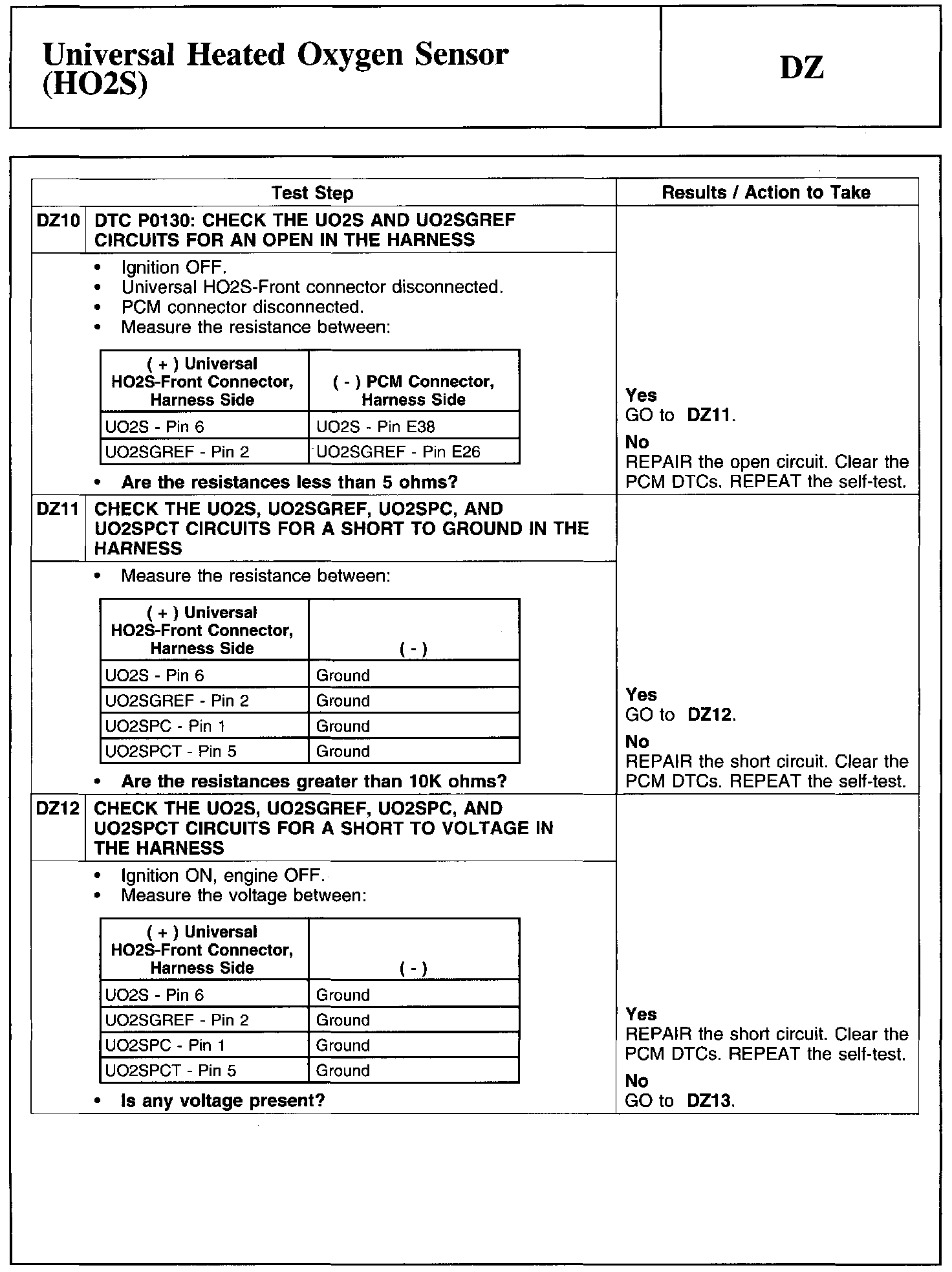

DZ10-DZ12:

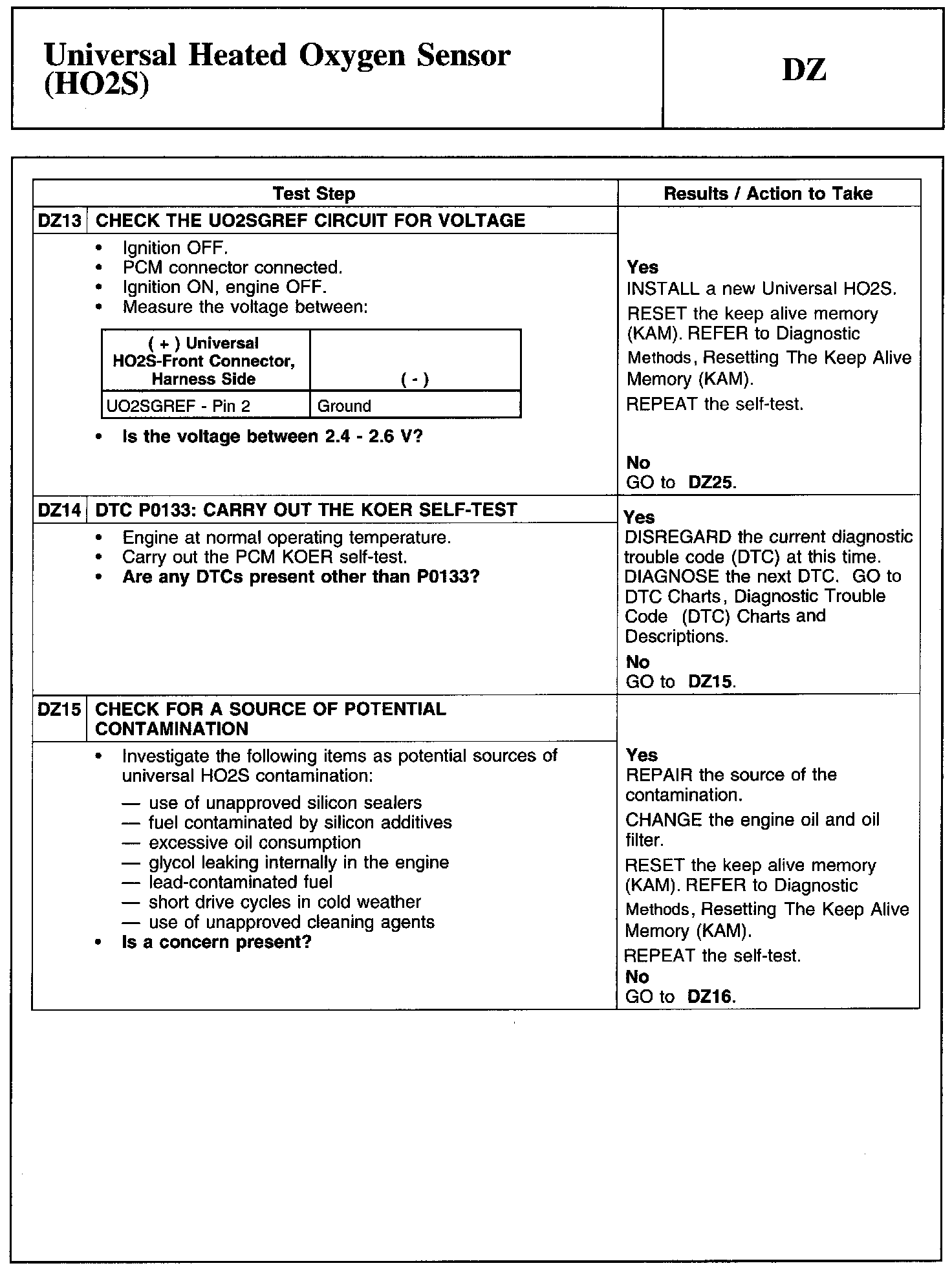

DZ13-DZ15:

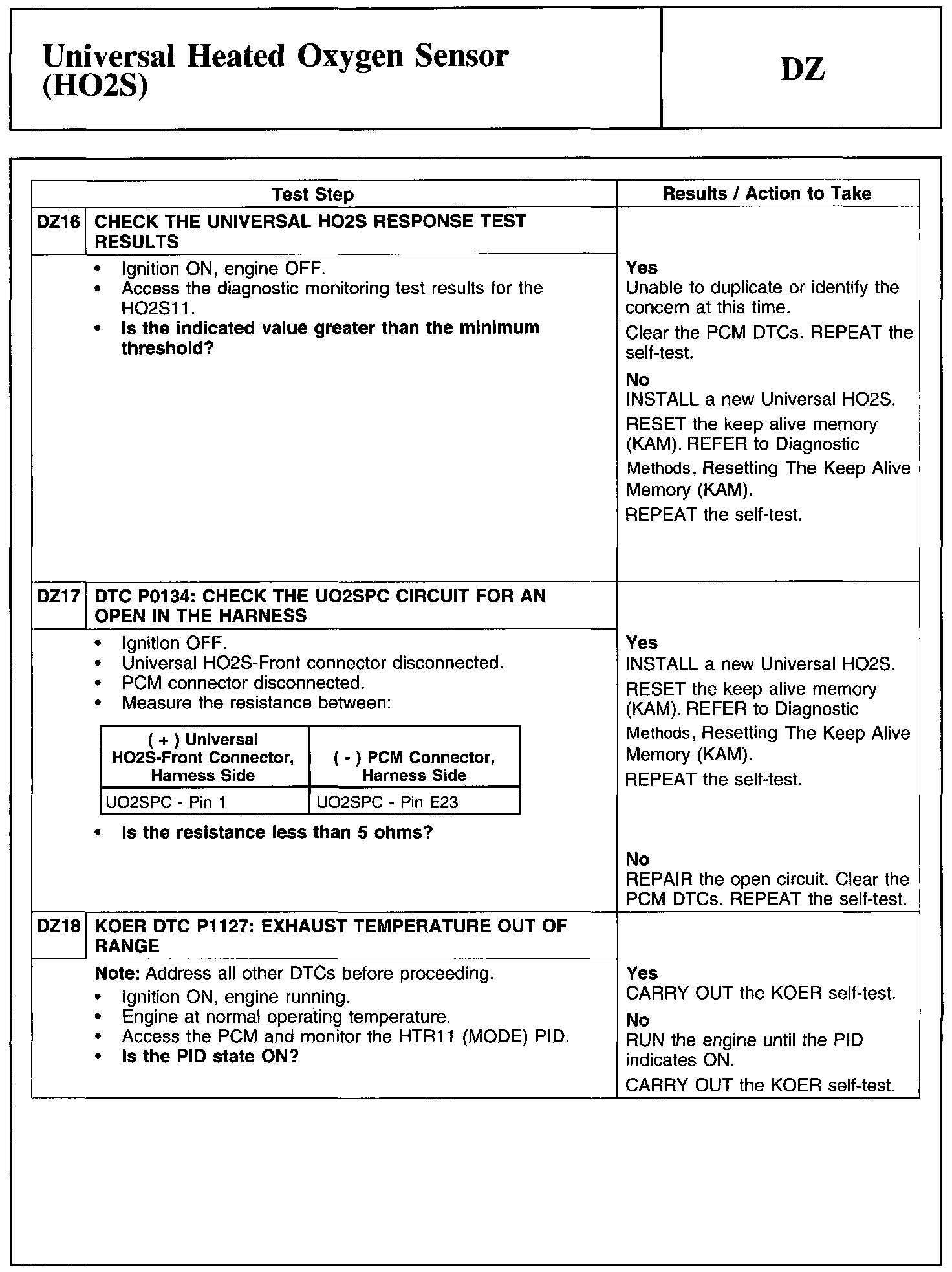

DZ16-DZ18:

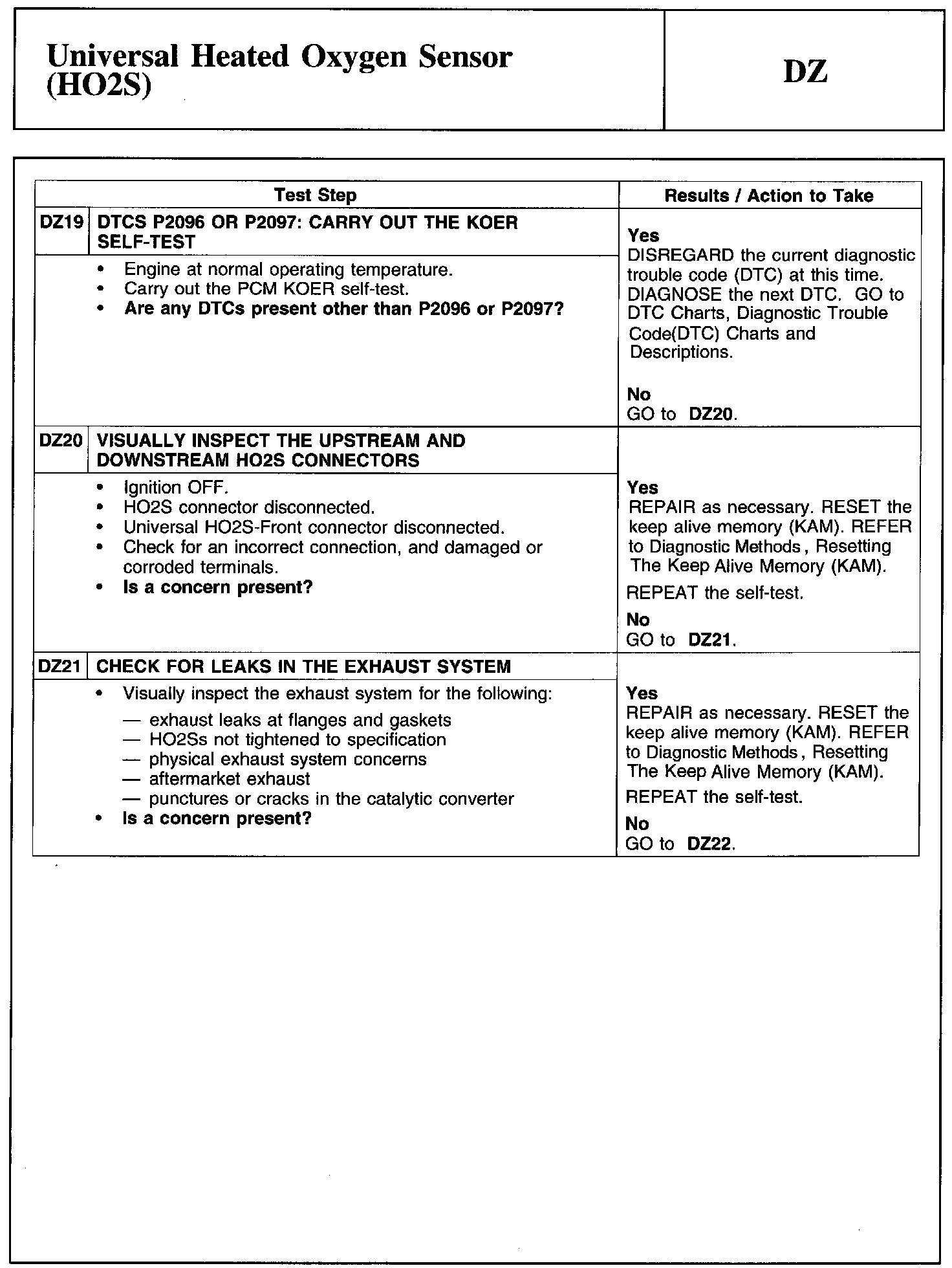

DZ19-DZ21:

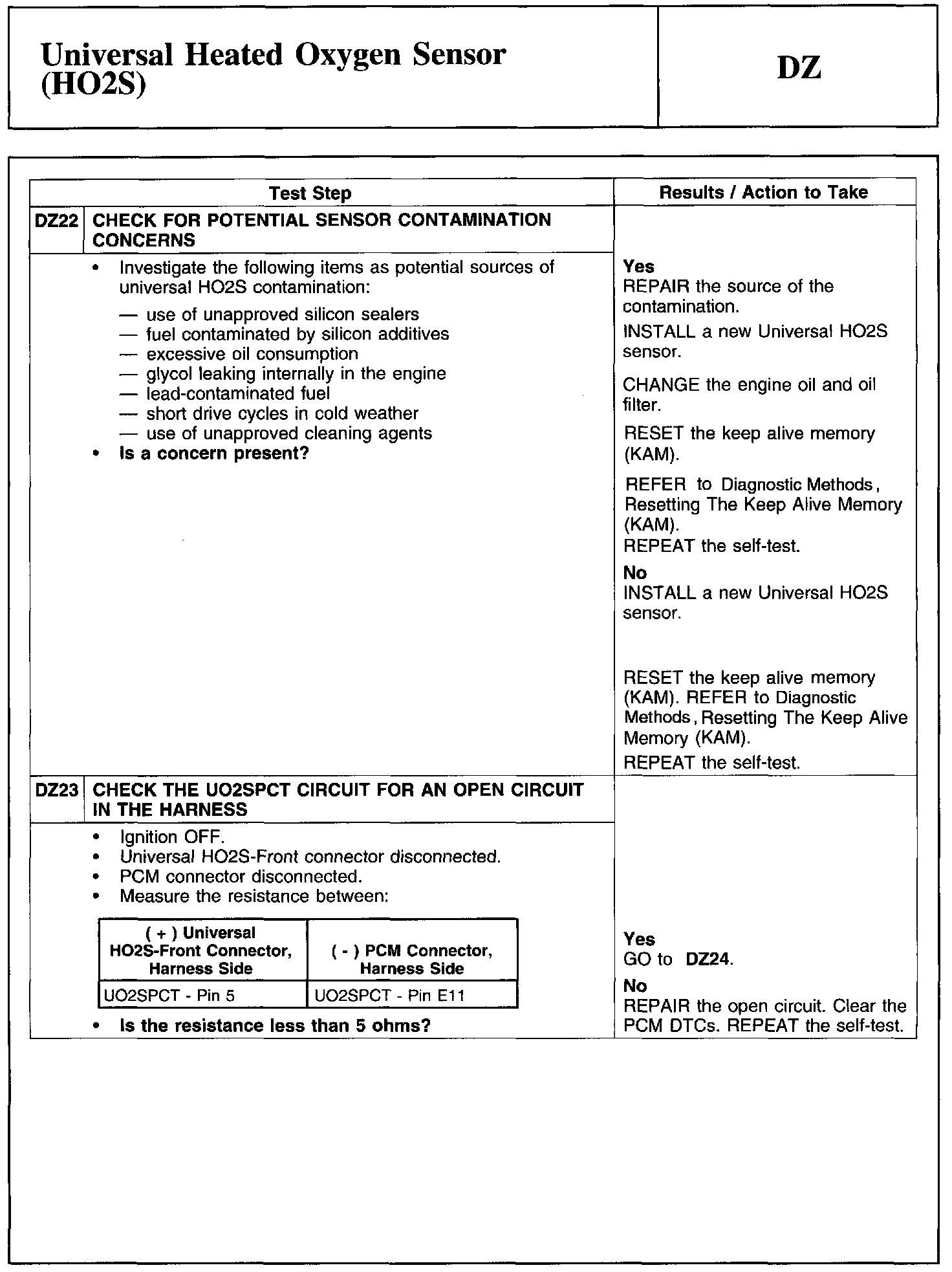

DZ22-DZ23:

DZ24-DZ25:
