Test DW: Heated Oxygen Sensor (HO2S)
Test DW: Heated Oxygen Sensor (HO2S)
PINPOINT TEST DW: HEATED OXYGEN SENSOR (HO2S)

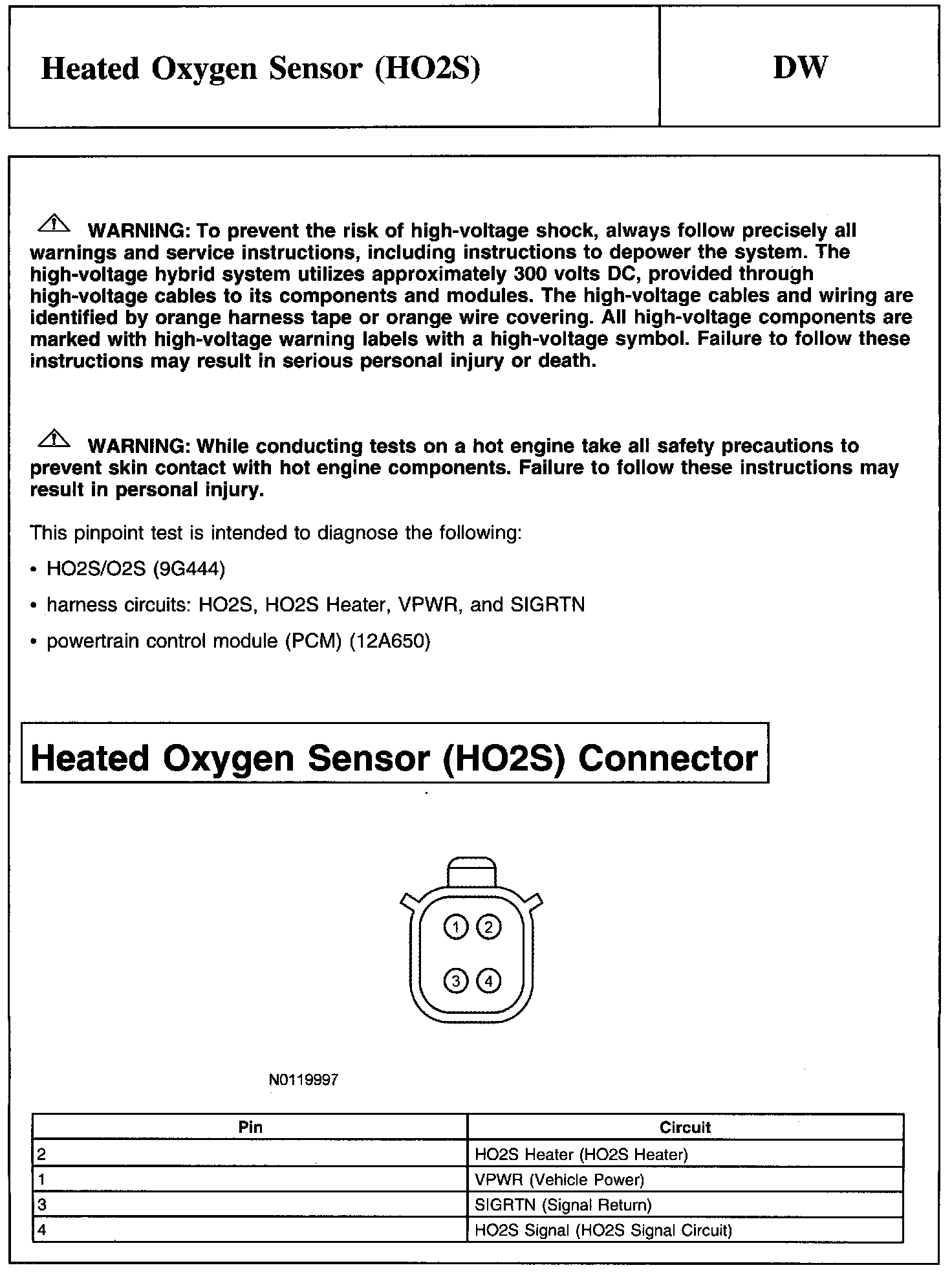

Warnings And Heated Oxygen Sensor (HO2S) Connector:

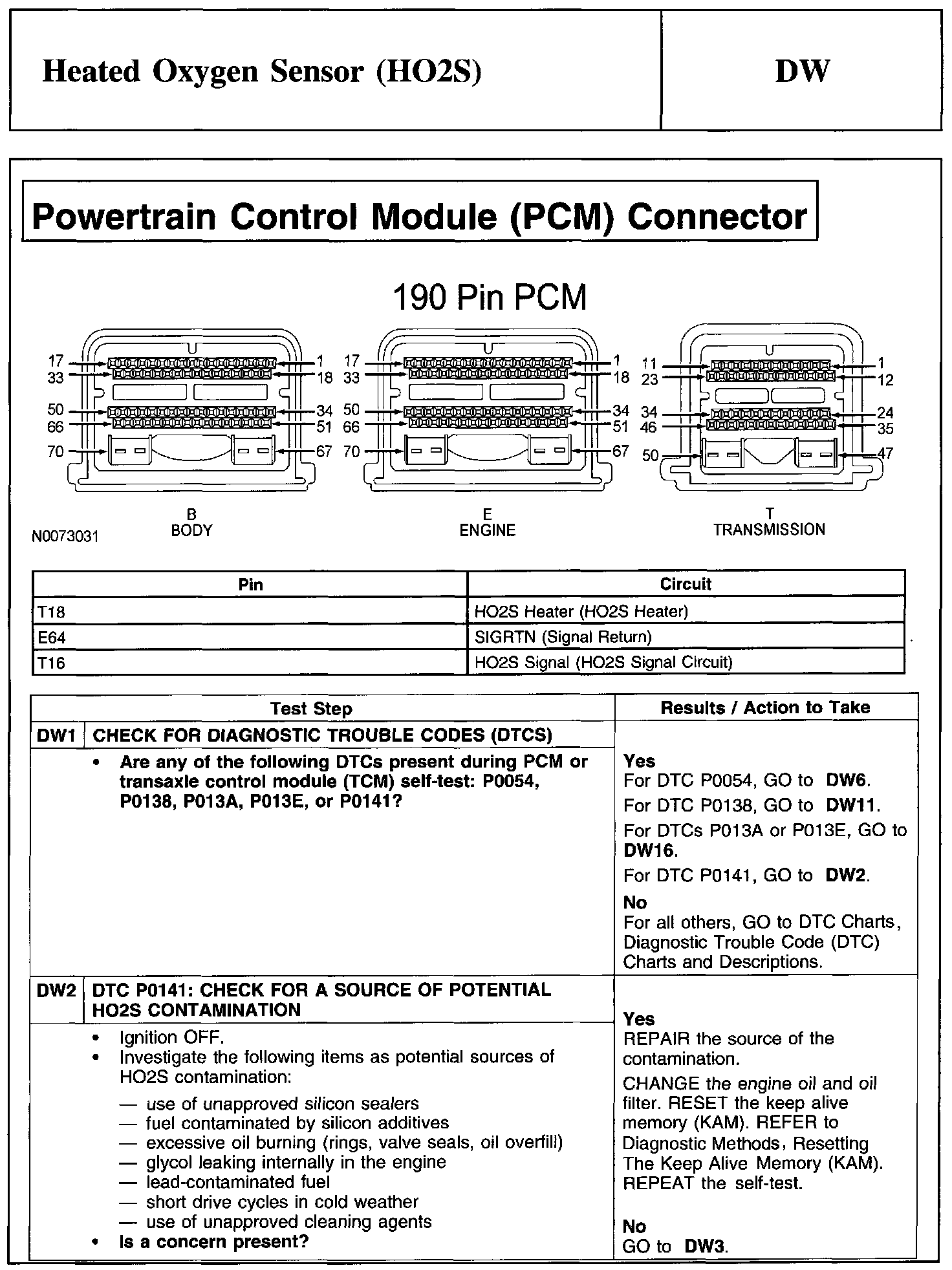

DW1-DW2:

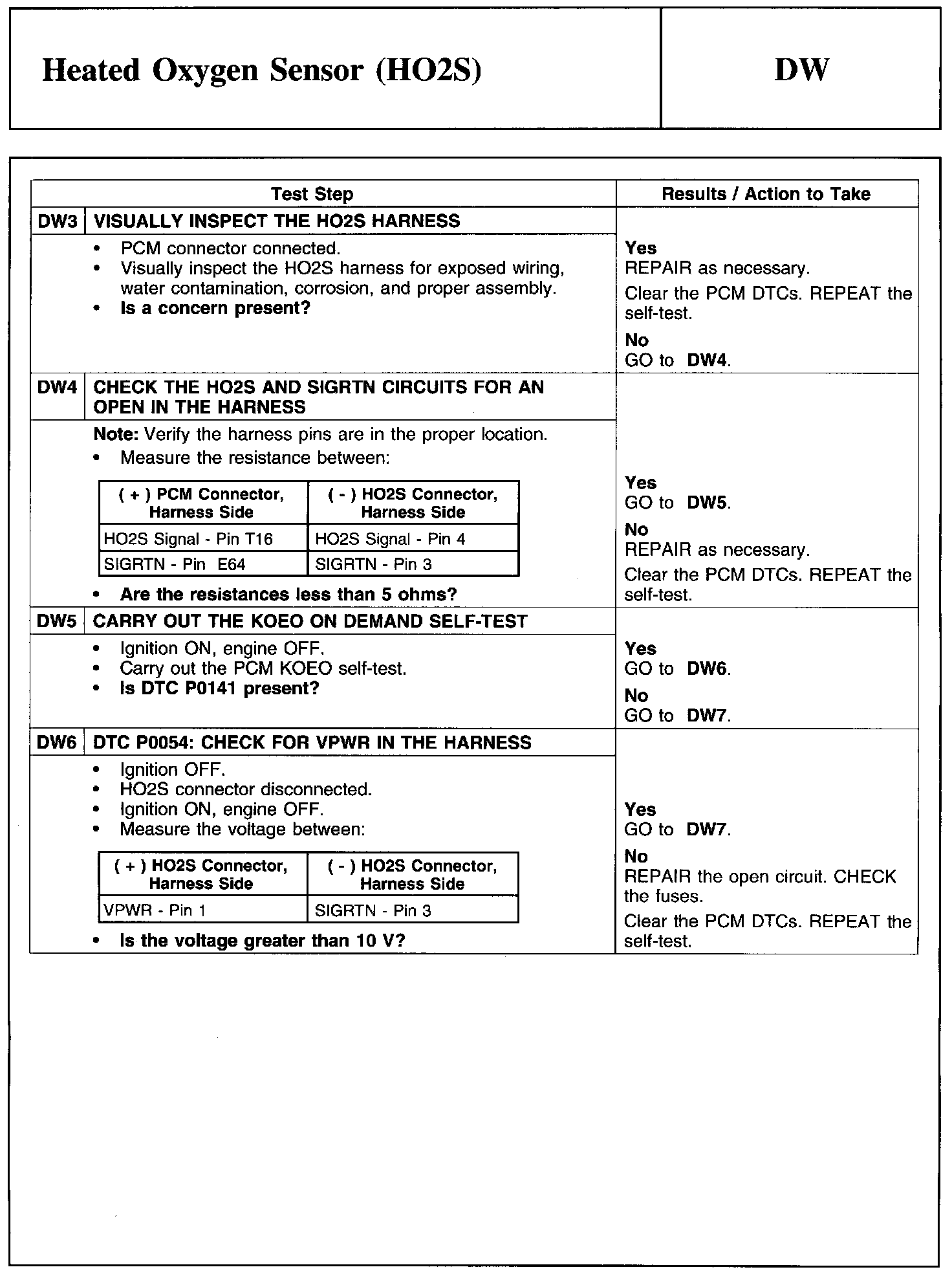

DW3-DW6:

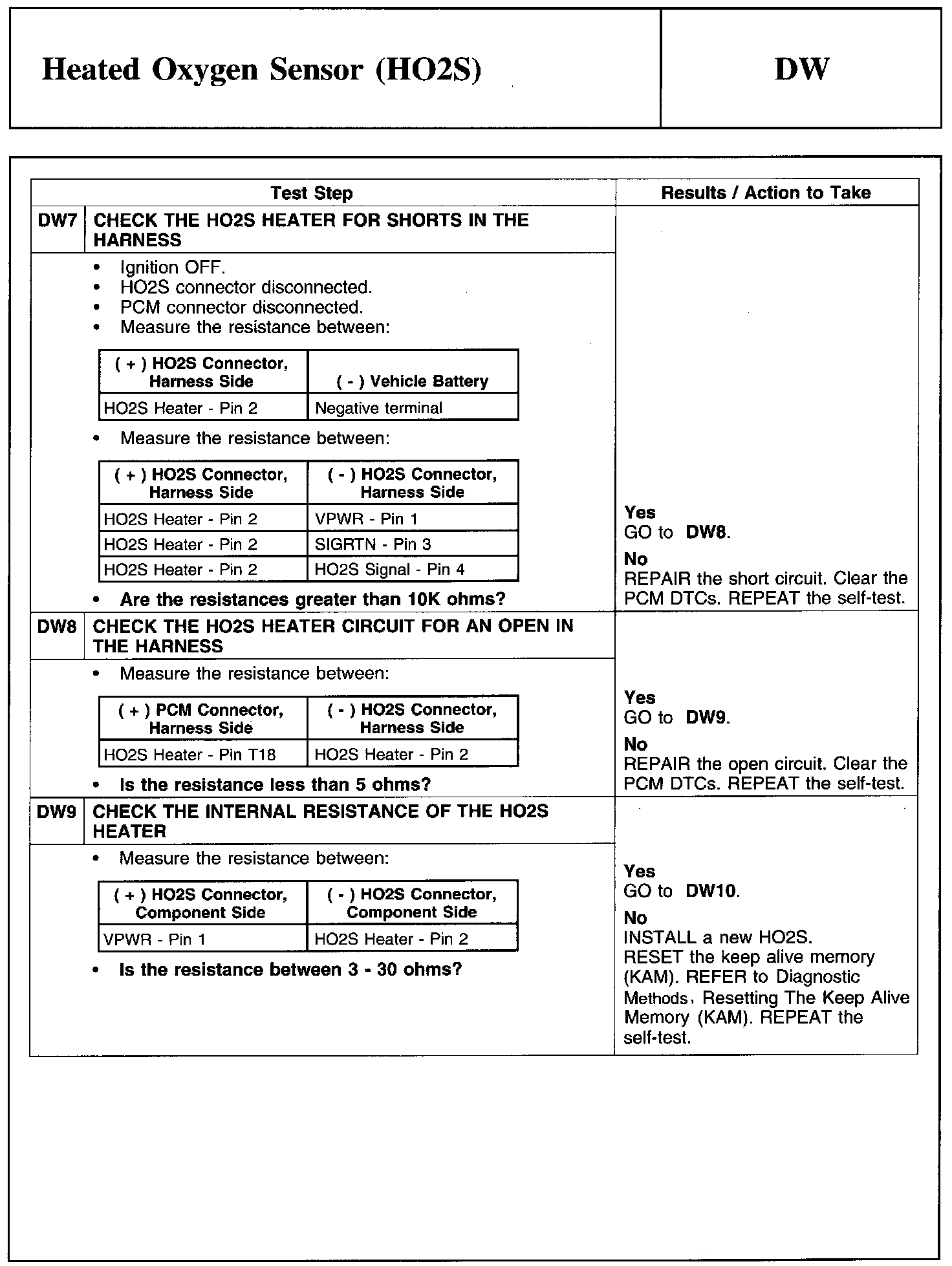

DW7-DW9:

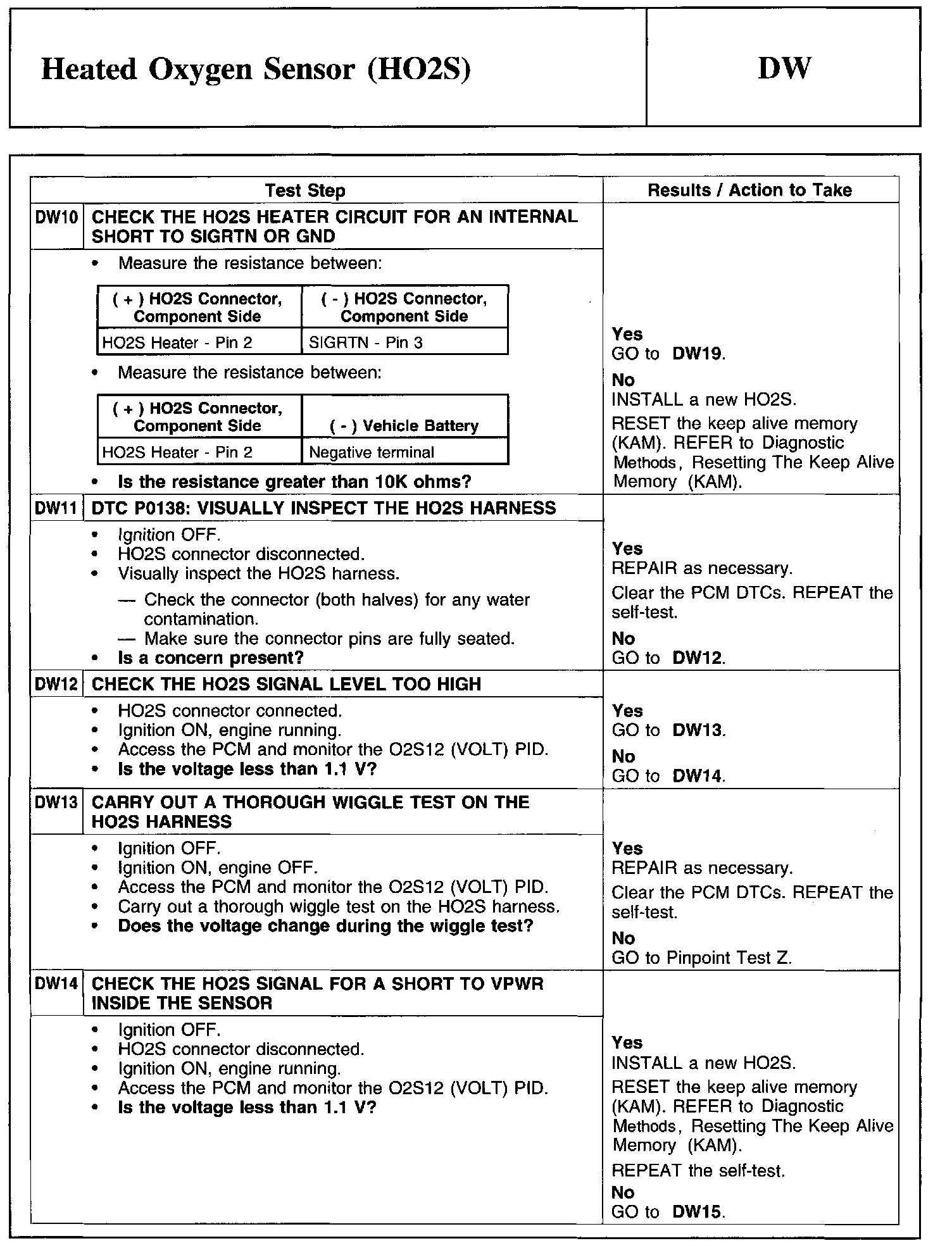

DW10-DW14:

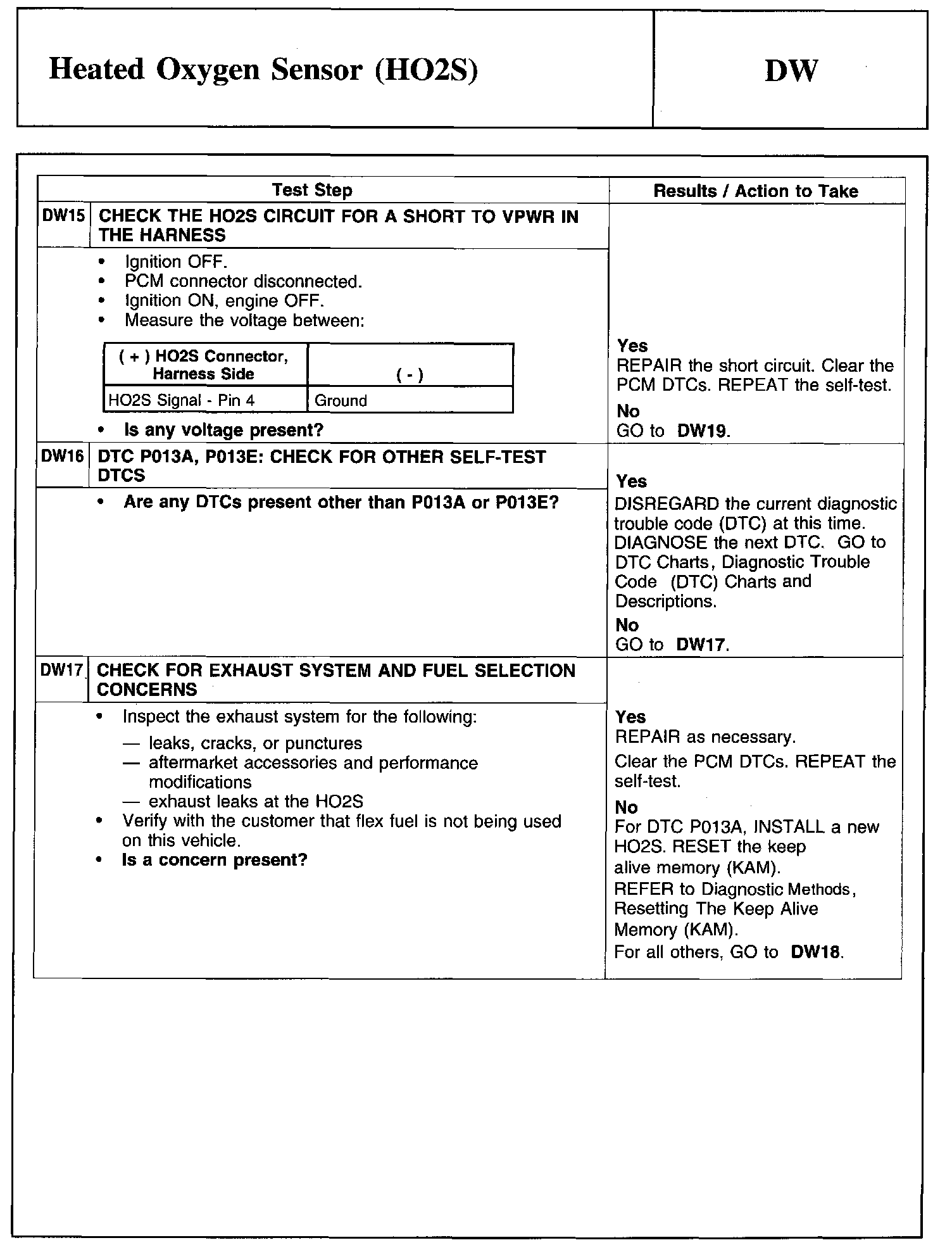

DW15-DW17:

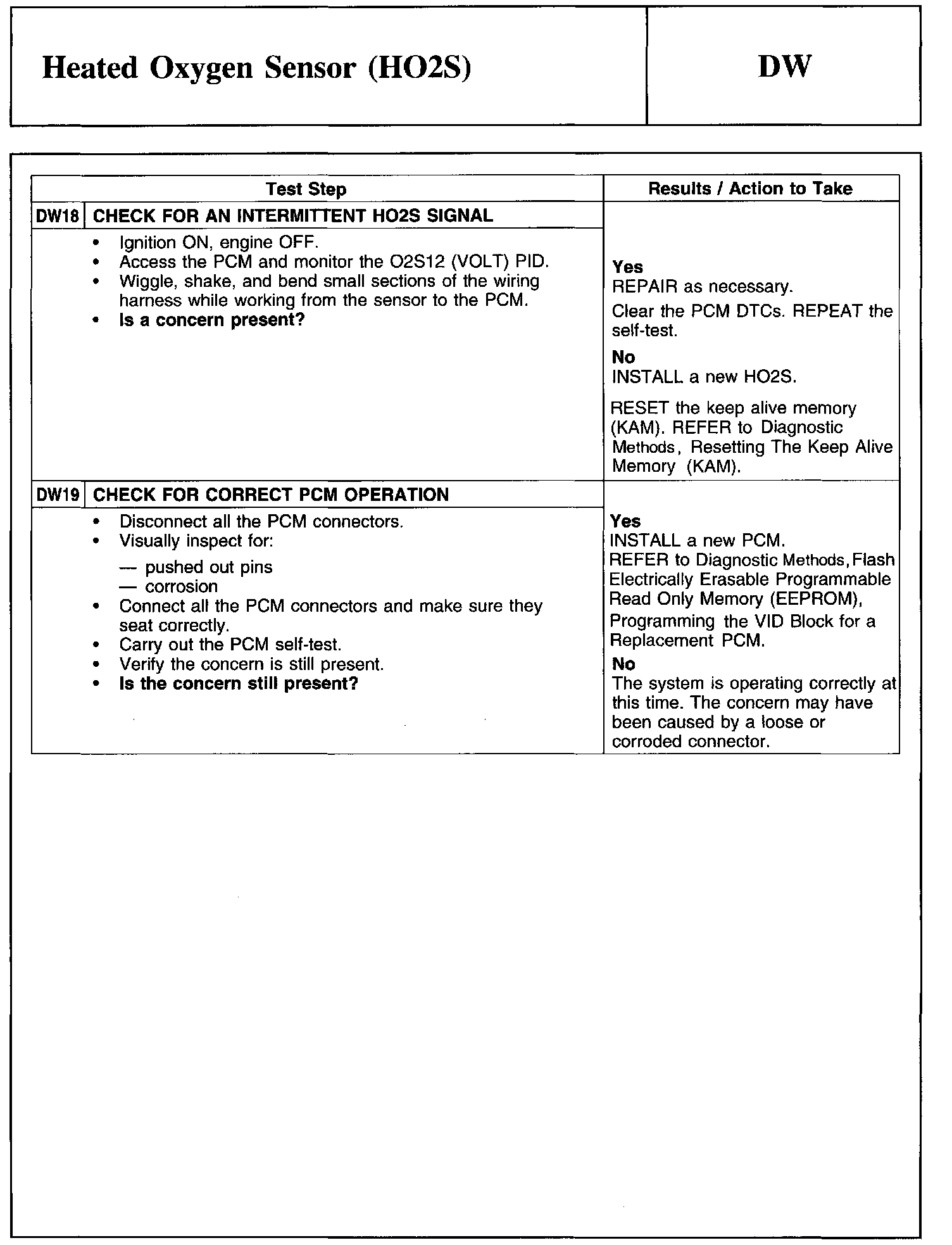

DW18-DW19:
