Test DM: Manifold Absolute Pressure (MAP) Sensor

PINPOINT TEST DM: MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

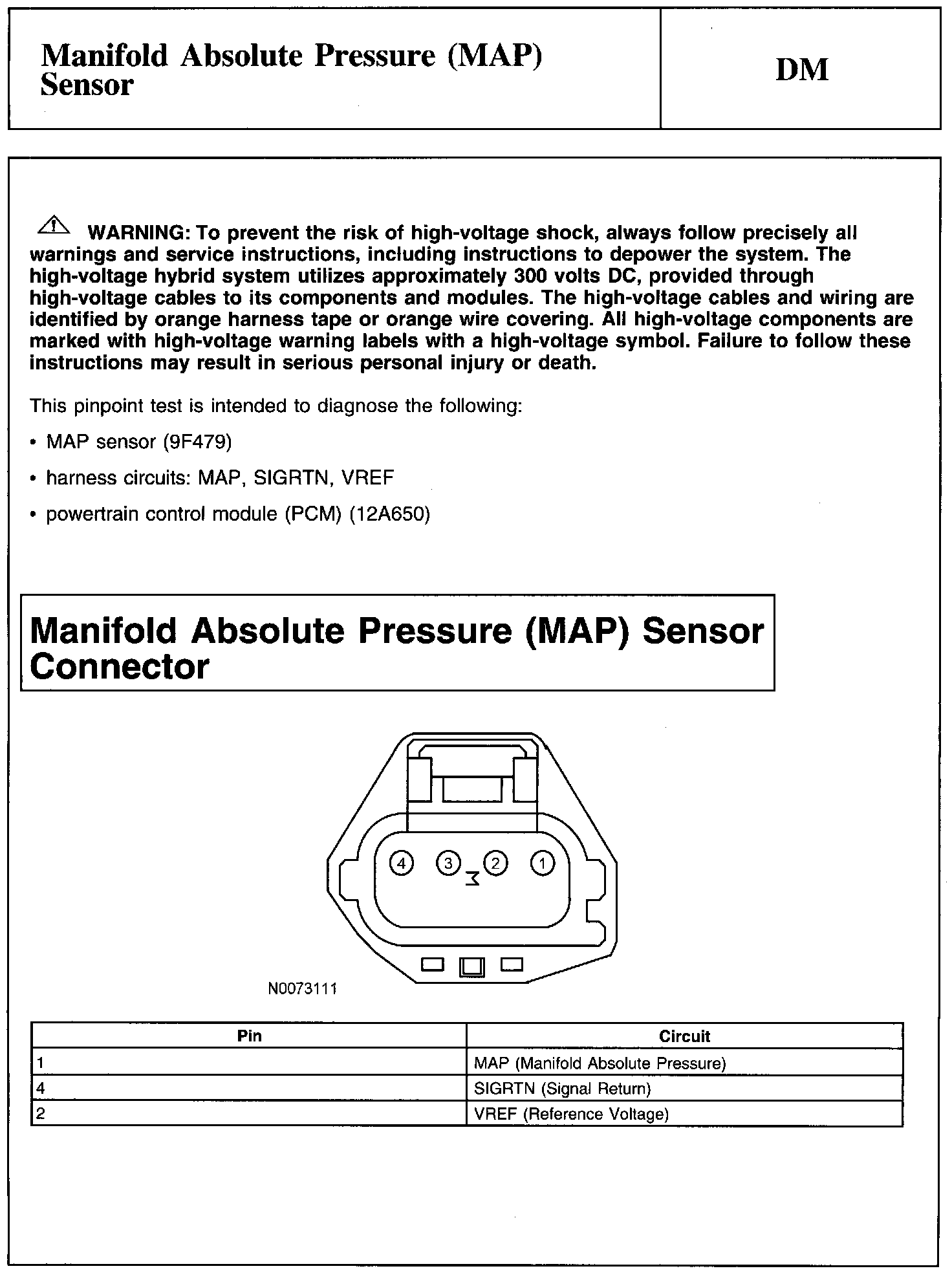

Warning And Manifold Absolute Pressure (MAP) Sensor Connector:

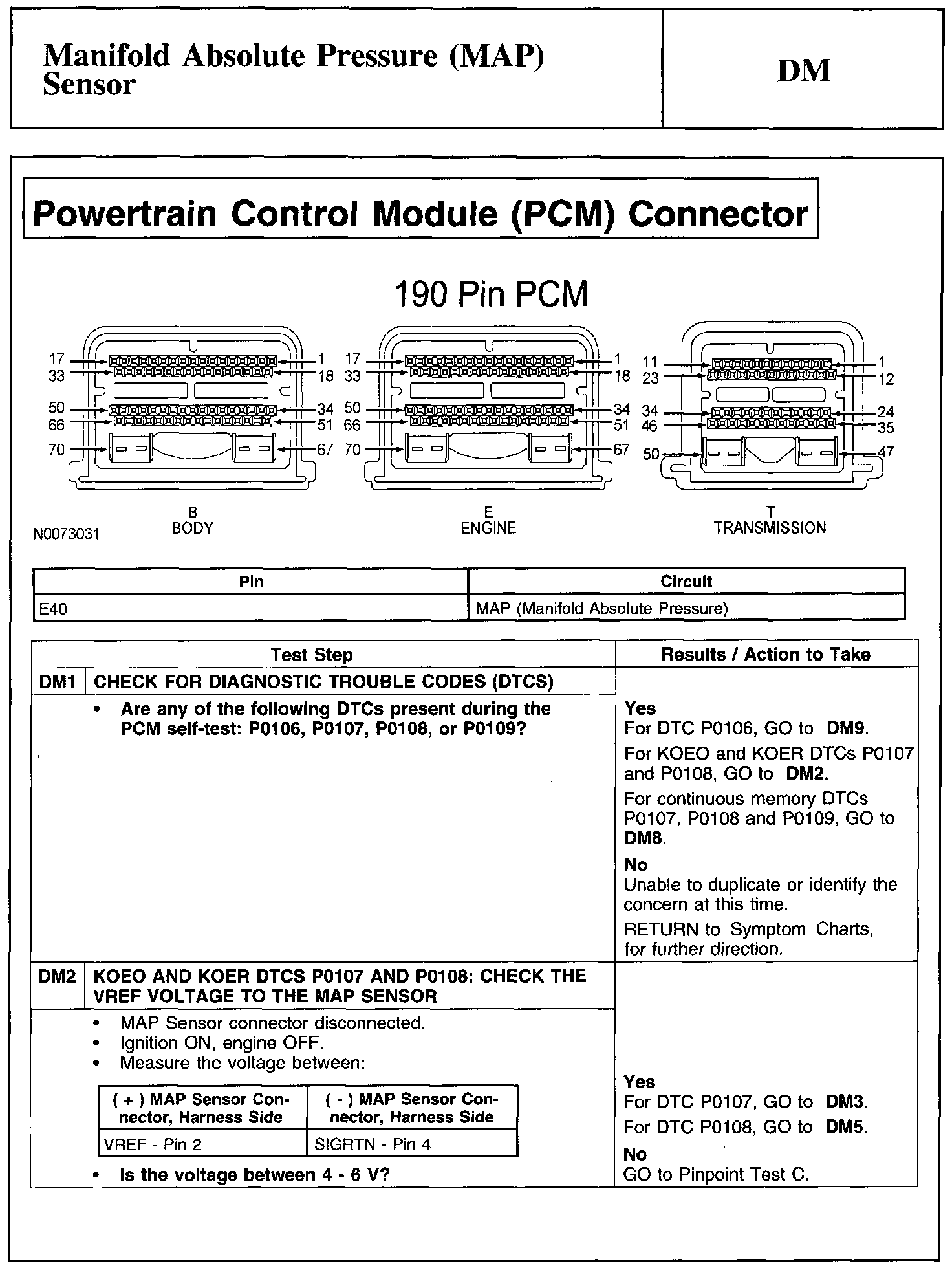

DM1-DM2:

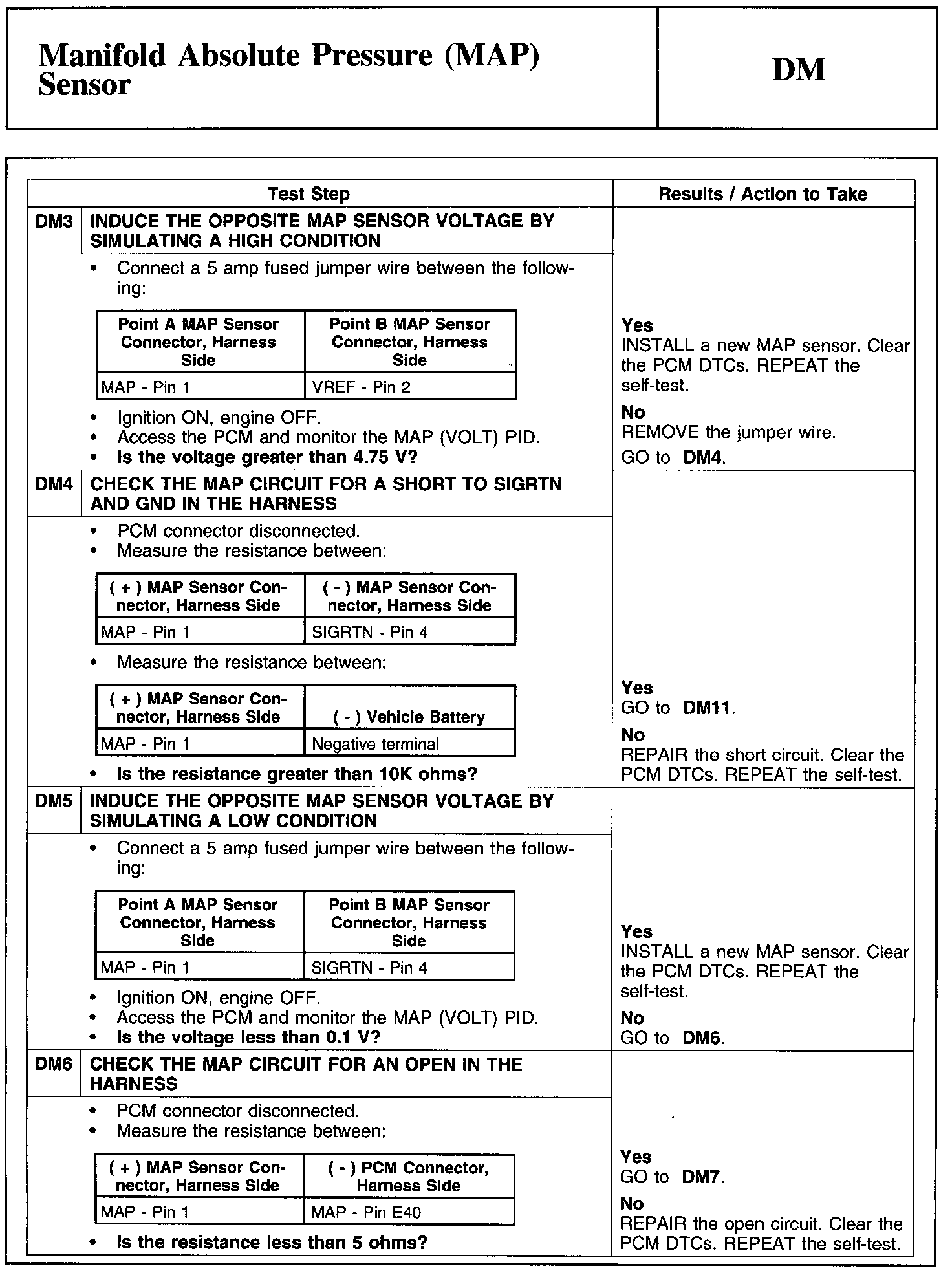

DM3-DM6:

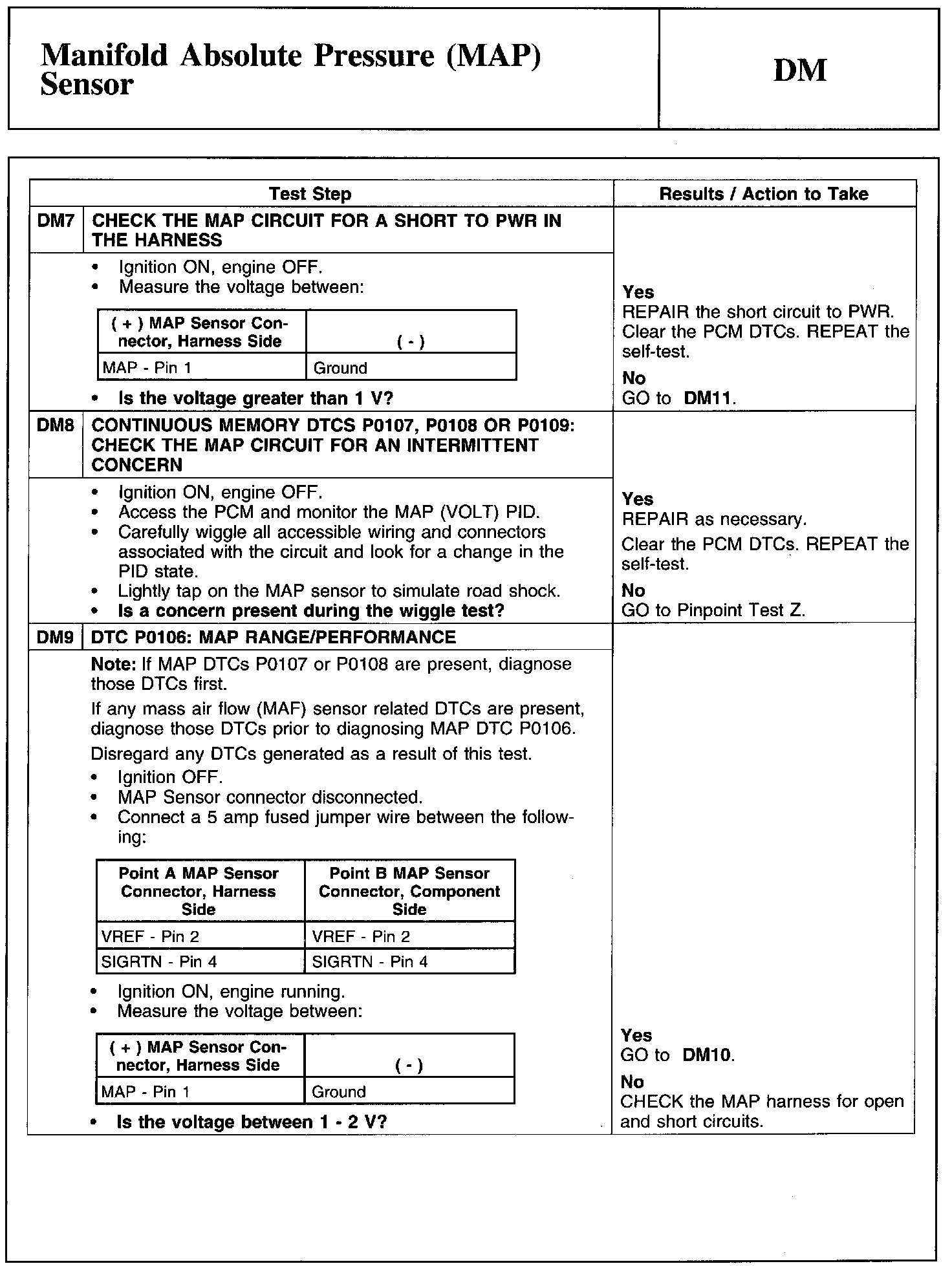

DM7-DM9:

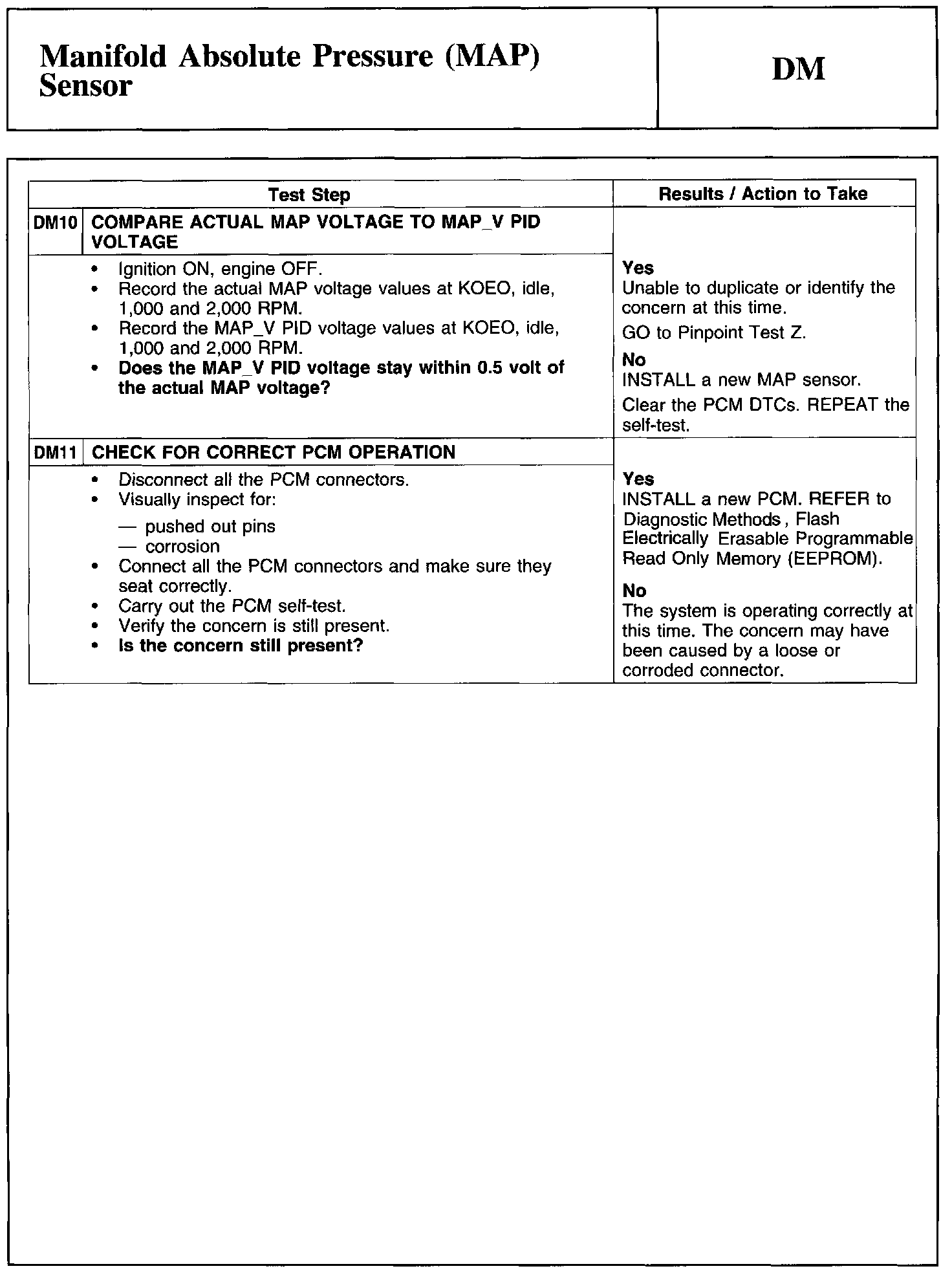

DM10-DM11:
