On-Board Diagnostics (OBD) Monitors
ON BOARD DIAGNOSTICS (OBD) MONITORSOBD Overview
The objectives of the OBD system are to improve air quality by reducing high emissions caused by emission related concerns, reducing the time between the occurrence of a concern and its detection and repair, and assisting in the diagnosis and repair of emission related problems. A malfunction indicator lamp (MIL) is required to illuminate and alert the driver of the concern and the need to repair the emission control system. A diagnostic trouble code (DTC) is required to assist in identifying the system or component associated with the concern.
The OBD system monitors virtually all emission control systems and components that can affect tailpipe or evaporative emissions. In most cases, concerns must be detected before emissions exceed 1.5 times the applicable 120,000 or 150,000 mile emission standards. Partial zero emission vehicles (PZEV) and super ultra low emission vehicles-II (SULEV-II) can use 2.5 times the standard in place of the 1.5 times the standard. If a system or component exceeds emission thresholds or does not operate within a manufacturer's specifications, a DTC is stored and the MIL is illuminated within two drive cycles.
The OBD system monitors for concerns either continuously, (regardless of driving mode), or non-continuously (once per drive cycle during specific drive modes). A pending DTC is stored in the powertrain control module (PCM) keep alive memory (KAM) when a concern is initially detected. Pending DTCs are displayed as long as the concern is present. Note that OBD regulations required a complete concern-free monitoring cycle to occur before erasing a pending DTC. This means that a pending DTC is erased on the next power-up after a concern-free monitoring cycle. However, if the concern is still present after two consecutive drive cycles, the MIL is illuminated. Once the MIL is illuminated, three consecutive drive cycles without a concern detected are required to extinguish the MIL. The DTC is erased after 40 engine warm-up cycles once the MIL is extinguished.
In addition to specifying and standardizing much of the diagnostics and MIL operation, OBD requires the use of a standard data link connector (DLC), standard communication links and messages, standardized DTCs and terminology. Examples of standard diagnostic information are freeze frame data and inspection/maintenance (I/M) readiness indicators.
Freeze frame data describes data stored in KAM at the point the concern is initially detected and the pending DTC is stored. Freeze frame data consists of parameters such as engine RPM, engine load, vehicle speed or throttle position. Freeze frame data is updated when the concern is detected again on a subsequent drive cycle and a confirmed DTC is stored; however, a previously stored freeze frame will be overwritten if a higher priority fuel or misfire concern is detected. This data is accessible with the scan tool to allow duplicating the conditions when the concern occurred in order to assist in repairing the vehicle.
OBD I/M readiness indicators show whether all of the OBD monitors have been completed since the last time the KAM or the PCM DTC(s) have been cleared. Ford stores a DTC P1000 and blinks the MIL after 15 seconds of ignition on engine off time to indicate that some monitors have not completed. In some states, it may be necessary to carry out an OBD check in order to renew a vehicle registration. The I/M readiness indicators must show that all monitors have been completed prior to the OBD check.
The following system provides a general description of each OBD monitor. In these descriptions, the monitor strategy, hardware, testing requirements and methods are presented to provide an overall understanding of monitor operation. An illustration of each monitor is also provided. These illustrations provide only a high level overview.

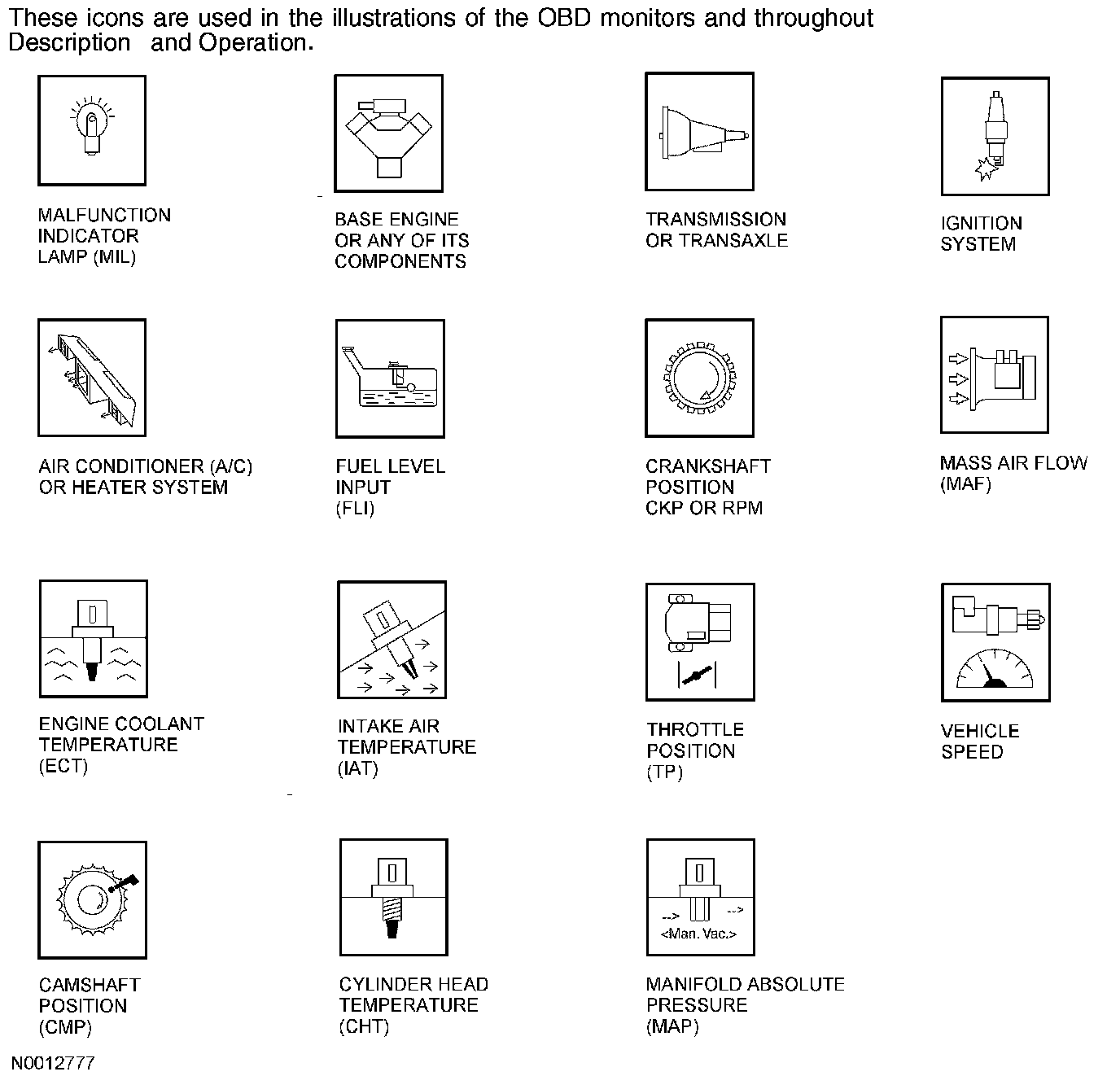

Each illustration depicts the PCM as the main focus with primary inputs and outputs for each monitor. The icons to the left of the PCM represent the inputs used by each of the monitor strategies to enable or activate the monitor. The components and subsystems to the right of the PCM represent the hardware and signals used while carrying out the tests and the systems being tested. The comprehensive component monitor (CCM) illustration has numerous components and signals involved and are shown generically. When referring to the illustrations, match the numbers to the corresponding numbers in the monitor descriptions for a better comprehension of the monitor and associated DTCs.
