Intermittent Diagnostic Techniques
INTERMITTENT DIAGNOSTIC TECHNIQUESIntermittent diagnostic techniques help find and isolate the root cause of intermittent faults associated with the electronic engine control (EEC) or the hybrid-electric system. The information is organized to help find the fault and carry out the repair. The process of finding and isolating an intermittent fault starts with recreating a fault symptom, accumulating powertrain control module (PCM) data, and comparing that data to typical values, then analyzing the results. Refer to the scan tool users manual for the functions described below.
Before proceeding, be sure that:
- Customary mechanical system tests and inspections do not reveal a concern. (Remember, mechanical component conditions can make a PCM system react abnormally.)
- Technical Service Bulletins (TSBs) and On-line Automotive Service Information System (OASIS) messages, if applicable, are reviewed.
- Quick test and associated diagnostic sub-routines have been completed without finding a fault, and the symptom is still present.
Recreating the Fault
Recreating the fault is the first step in isolating the cause of the intermittent symptom. A thorough investigation should start with the customer information worksheet located in the back of the book. If freeze frame data is available, it may help in recreating the conditions at the time of a malfunction indicator lamp diagnostic trouble code (MIL DTC). Listed below are some of the conditions for recreating the fault:

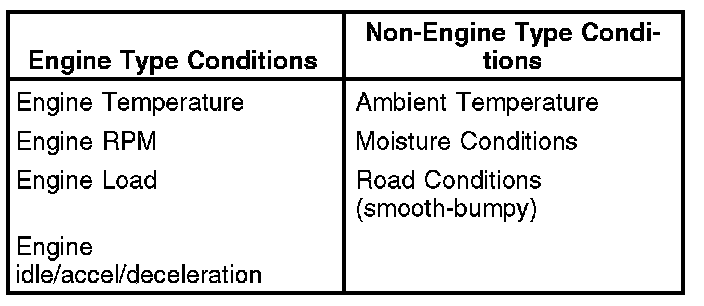

CONDITIONS TO RECREATE FAULT
Accumulating PCM Data
PCM data can be accumulated in a number of ways. This includes circuit measurements with a digital multimeter (DMM) or scan tool parameter identification (PID) data. Acquisition of PCM PID data using a scan tool is one of the easiest ways to gather information. Gather as much data as possible when the fault is occurring to prevent incorrect diagnosis. Gather data during different operating conditions and based on the customer description of the intermittent fault. Compare this data with the known good data values located in Reference Values in the Typical Diagnostic Reference Values. This requires recording data in four conditions for comparison: 1) KOEO, 2) Hot Idle, 3) 48 km/h (30 mph), and 4) 89 km/h (55 mph).
Peripheral Inputs
Some signals may require certain peripherals or auxiliary tools for diagnosis. In some cases, these devices can be inserted into the measurement jacks of the scan tool or DMM. For example, connecting an electronic fuel pressure gauge to monitor and record the fuel pressure voltage reading and capturing the data would help find the fault.
Comparing PCM Data
After the PCM values are acquired, it is necessary to determine the fault area. Typically, it requires the comparison of the actual values from the vehicle to the typical values from the Typical Diagnostic Reference Values in Reference Values.
Analyzing PCM Data
Look for abnormal events or values that are clearly incorrect. Inspect the signals for abrupt or unexpected changes. For example, during a steady cruise most of the sensor values should be relatively stable. Sensors such as the throttle position (TP) or mass air flow (MAF), as well as RPM that changes abruptly when the vehicle is traveling at a constant speed, are clues to a possible fault area.
Look for agreement in related signals. For example, if the APP1, APP2 and APP3 are changed during acceleration, a corresponding change should occur in TP1, TP2, LOAD, RPM and MAF V PIDs.
Make sure the signals act in correct sequence. An increase in RPM after the TP1 and TP2 are increased is expected. However, if RPM increases without a TP1 and TP2 change, then a fault may exist.
Scroll through the PID data while analyzing the information. Look for sudden drops or spikes in the values.
