Catalytic Converter - Manifold

Catalytic Converter - Manifold, Hybrid

Removal

1. NOTE: Always install new fasteners and gaskets as indicated. Clean flange faces prior to new gasket installation to make sure of proper sealing.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Disconnect the Heated Oxygen Sensor (HO2S) and the Catalyst Monitor Sensor (CMS) electrical connectors.

3. Remove the 2 catalytic converter manifold-to-exhaust flexible pipe nuts.
- Discard the gasket and the 2 nuts.

4. Remove the 6 catalytic converter manifold shield bolts and the heat shield.

5. Remove the 2 catalytic converter manifold shield bracket bolts and the bracket.

6. Loosen the 2 catalytic converter manifold bracket bolts.

7. Remove the 7 catalytic converter manifold nuts and remove the converter from the vehicle.
- Discard the 7 nuts and the gasket.

8. Remove and discard the 7 catalytic converter manifold studs.

9. Clean and inspect the catalytic converter manifold. For additional information, refer to Engine System - General Information Exhaust Manifold Cleaning and Inspection.

Installation

1. Install the 7 new catalytic converter manifold studs.
- Tighten to 17 Nm (150 lb-in).

2. Position a new catalytic converter manifold gasket on the studs.

3. NOTICE: Failure to tighten the catalytic converter manifold nuts to specification before installing the converter bracket bolts will cause the converter to develop an exhaust leak.

NOTICE: Failure to tighten the catalytic converter manifold nuts to specification a second time will cause the converter to develop an exhaust leak.

NOTE: Make sure to tighten the nuts in the following sequence in 2 stages.

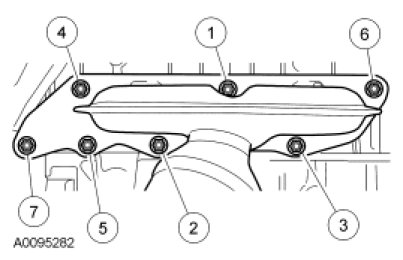

Position the catalytic converter manifold and tighten the 7 new nuts in the sequence shown, in 2 stages.

- Stage 1: Tighten to 55 Nm (41 lb-ft).

- Stage 2: Tighten to 55 Nm (41 lb-ft).





4. Tighten the 2 catalytic converter manifold bracket bolts.
- Tighten to 20 Nm (177 lb-in).

5. Install the 2 catalytic converter manifold shield bracket bolts and the bracket.
- Tighten to 20 Nm (177 lb-in).

6. Position the catalytic converter manifold shield and install the 6 heat shield bolts.
- Tighten to 10 Nm (89 lb-in).

7. Install the exhaust flexible pipe to the catalytic converter.
- Install a new gasket and nuts.

- Tighten to 40 Nm (30 lb-ft).

8. Connect the HO2S and the CMS electrical connectors.
