Draining
WARNING: Always allow the engine to cool before opening the cooling system. Do not unscrew the coolant pressure relief cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may result in serious personal injury.
NOTICE: The coolant must be recovered in a suitable, clean container for reuse. If the coolant is contaminated, it must be recycled or disposed of correctly. Using contaminated coolant may result in damage to the engine or cooling system components.
NOTICE: The engine cooling system is filled with Motorcraft(R) Specialty Green Engine Coolant. Do not mix coolant types. Mixing coolant types degrades the corrosion protection of the coolant. Failure to follow these instructions may result in engine or cooling system damage.
NOTICE: Genuine Mazda(R) Extended Life Coolant and Motorcraft(R) Specialty Green Engine Coolant are very sensitive to light. Do NOT allow these products to be exposed to ANY LIGHT for more than a day or two. Extended light exposure causes these products to degrade.
NOTE: Less than 80% of coolant capacity can be recovered with the engine in the vehicle. Dirty, rusty or contaminated coolant requires replacement.
1. Release the pressure in the cooling system by slowly turning the pressure relief cap one-half turn counterclockwise. When the pressure is released, remove the pressure relief cap.
2. Place a suitable container below the radiator draincock.
- Open the draincock and allow to drain.
- Close the draincock after draining.
Filling and Bleeding with a Vacuum Cooling System Filler
NOTICE: Genuine Mazda(R) Extended Life Coolant and Motorcraft(R) Specialty Green Engine Coolant are very sensitive to light. Do NOT allow these products to be exposed to ANY LIGHT for more than a day or two. Extended light exposure causes these products to degrade.
NOTICE: Engine coolant provides boil protection, corrosion protection, freeze protection, and cooling efficiency to the engine and cooling components. In order to obtain these protections, maintain the engine coolant at the correct concentration and fluid level in the degas bottle.
To maintain the integrity of the coolant and the cooling system:

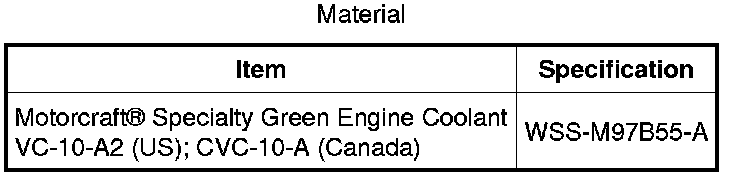

- Add Motorcraft(R) Specialty Green Engine Coolant or equivalent meeting Ford specification WSS-M97B55-A (dark green color). Use the same type of coolant that was drained from the cooling system. Do not mix coolant types.
- Do not add or mix with any other type of engine coolant. Mixing coolants may degrade the coolant's corrosion protection.
- Do not add alcohol, methanol, or brine, or any engine coolants mixed with alcohol or methanol antifreeze. These can cause engine damage from overheating or freezing.
- Ford Motor Company does NOT recommend the use of recycled engine coolant in vehicles originally equipped with Motorcraft(R) Specialty Green Engine Coolant since a Ford-approved recycling process is not yet available.

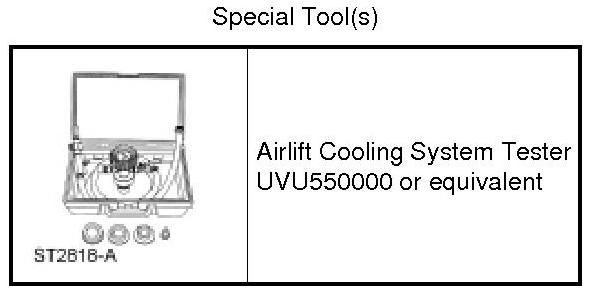

1. Install the vacuum cooling system filler and follow the manufacturer's instructions to fill and bleed the cooling system.
- Recommended coolant concentration is 50/50 ethylene glycol to distilled water.
- For extremely cold climates (less than -36°C [-34°F]):
- It may be necessary to increase the coolant concentration above 50%.
- NEVER increase the coolant concentration above 60%.
- Maximum coolant concentration is 60/40 for cold weather areas.
- A coolant concentration of 60% will provide freeze point protection down to -52°C (-62°F).
- Engine coolant concentration above 60% will decrease the overheat protection characteristics of the engine coolant and may damage the engine.
- For extremely hot climates:
- It is still necessary to maintain the coolant concentration above 40%.
- NEVER decrease the coolant concentration below 40%.
- Minimum coolant concentration is 40/60 for warm weather areas.
- A coolant concentration of 40% will provide freeze point protection down to -24°C (-12°F).
- Engine coolant concentration below 40% will decrease the corrosion and freeze protection characteristics of the engine coolant and may damage the engine.
- Vehicles driven year-round in non-extreme climates should use a 50/50 mixture of engine coolant and distilled water for optimum cooling system and engine protection.
Filling and Bleeding without a Vacuum Cooling System Filler
NOTICE: Genuine Mazda(R) Extended Life Coolant and Motorcraft(R) Specialty Green Engine Coolant are very sensitive to light. Do NOT allow these products to be exposed to ANY LIGHT for more than a day or two. Extended light exposure causes these products to degrade.
NOTICE: Engine coolant provides boil protection, corrosion protection, freeze protection, and cooling efficiency to the engine and cooling components. In order to obtain these protections, maintain the engine coolant at the correct concentration and fluid level in the degas bottle.
To maintain the integrity of the coolant and the cooling system:
- Add Motorcraft(R) Specialty Green Engine Coolant or equivalent meeting Ford specification WSS-M97B55-A (dark green color). Use the same type of coolant that was drained from the cooling system. Do not mix coolant types.
- Do not add or mix with any other type of engine coolant. Mixing coolants may degrade the coolant's corrosion protection.
- Do not add alcohol, methanol, or brine, or any engine coolants mixed with alcohol or methanol antifreeze. These can cause engine damage from overheating or freezing.
- Ford Motor Company does NOT recommend the use of recycled engine coolant in vehicles originally equipped with Motorcraft(R) Specialty Green Engine Coolant since a Ford-approved recycling process is not yet available.

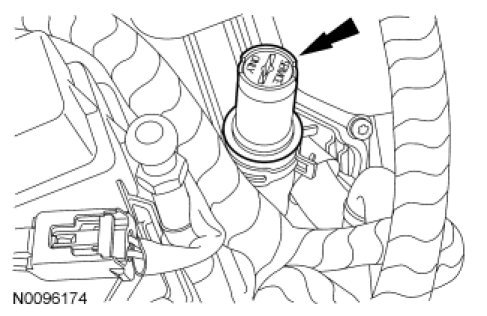

1. Remove the degas bottle cap and the bleed valve on the top of the engine coolant outlet.
2. NOTE: Make sure the coolant flows from the radiator through the upper radiator hose and fills the engine. When full, coolant should flow from the bleed hole.
Fill the degas bottle to the COLD FILL RANGE line.
- Recommended coolant concentration is 50/50 ethylene glycol to distilled water.
- For extremely cold climates (less than -36°C [-34°F]):
- It may be necessary to increase the coolant concentration above 50%.
- NEVER increase the coolant concentration above 60%.
- Maximum coolant concentration is 60/40 for cold weather areas.
- A coolant concentration of 60% will provide freeze point protection down to -52°C (-62°F).
- Engine coolant concentration above 60% will decrease the overheat protection characteristics of the engine coolant and may damage the engine.
- For extremely hot climates:
- It is still necessary to maintain the coolant concentration above 40%.
- NEVER decrease the coolant concentration below 40%.
- Minimum coolant concentration is 40/60 for warm weather areas.
- A coolant concentration of 40% will provide freeze point protection down to -24°C (-12°F).
- Engine coolant concentration below 40% will decrease the corrosion and freeze protection characteristics of the engine coolant and may damage the engine.
- Vehicles driven year-round in non-extreme climates should use a 50/50 mixture of engine coolant and distilled water for optimum cooling system and engine protection.
3. Install the degas bottle cap and the bleed valve leaving both loose.
4. Start the engine and let it idle A mixture of air and coolant should escape from the open bleed valve.
5. After all of the air has escaped from the bleed valve turn off the engine and close the bleed valve and the degas bottle cap.
NOTICE: If the engine overheats or the fluid level drops below the minimum fill line, shut off the engine and add fluid to the degas bottle to the cold fill range line once the engine cools. Failure to follow these instructions may result in damage to the engine.
6. Start the engine and let it idle for 30 minutes or until the engine reaches normal operating temperature.
7. Turn the heater to the MAX position
8. Carry out the following:
1. Increase the engine speed to 3,000 rpm for 10 seconds.
2. Idle engine for 50 seconds.
3. Repeat Steps 1 and 2 a total of 15 times.
9. WARNING: Always allow the engine to cool before opening the cooling system. Do not unscrew the coolant pressure relief cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may result in serious personal injury.
Check the engine coolant level in degas bottle and fill as necessary.
